Omron fh series Construction Guide

87
6

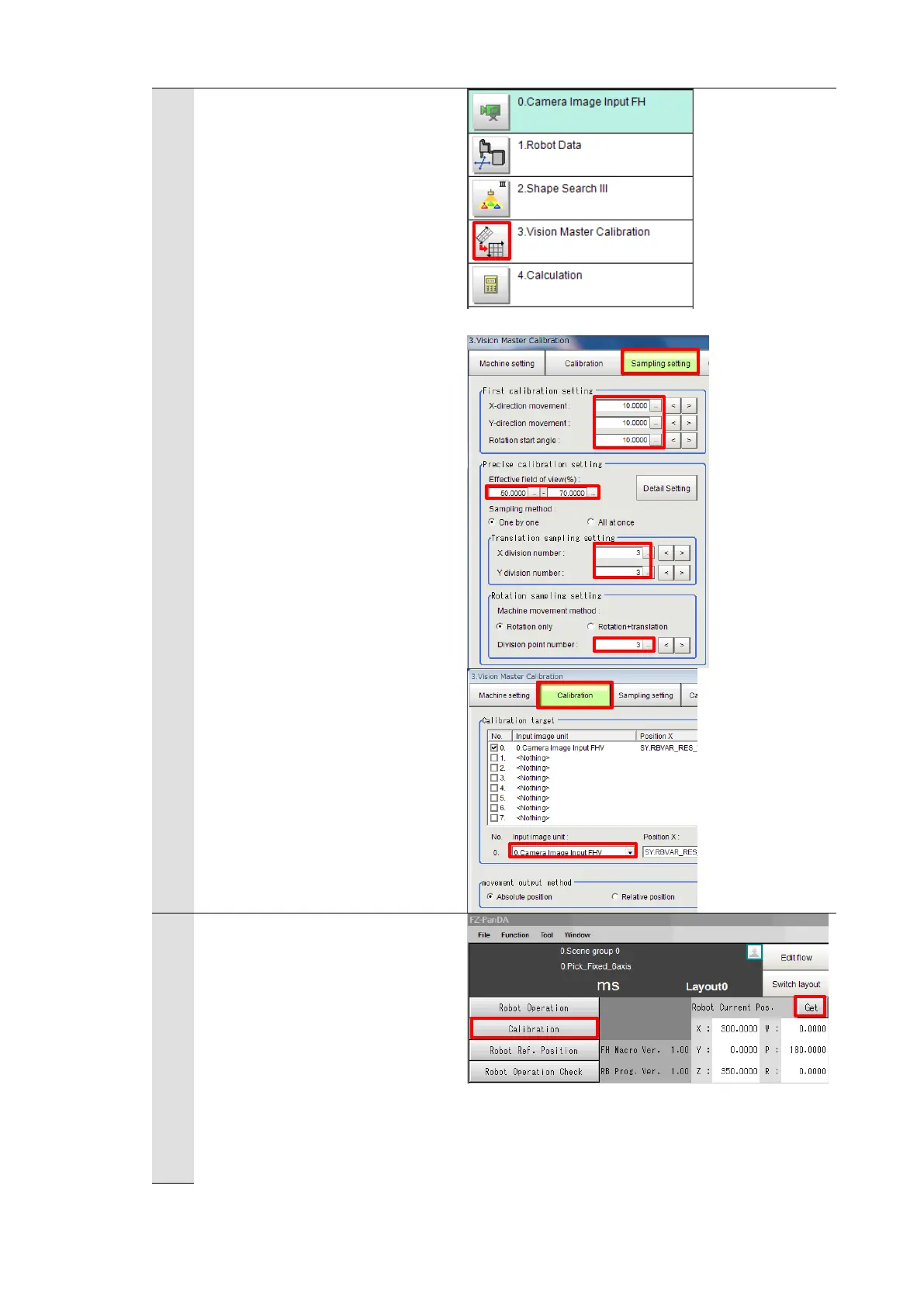

Click the “3. Vision Master
Calibration” icon on the Main
Window of the Vision Sensor to
open the setting screen.
Select [Sampling setting] tab
and set “First calibration
setting”, “Effective field of
view”, “Translation sampling
setting”, “Division point
number” according to the
actual environment.
* When using the FHV Series
Smart Camera Vision Sensor,
select the "Calibration" tab and
in the field for "Image Input"
select "Camera Image Input
FHV".
7
Click [Get] on the Main Window
of the Vision Sensor to get the
current position of the robot.
Click [Calibration] to open the
“Calibration” dialog.
Click [Edit] in the calibration
dialog to open the “Calib. Start
Pos.” dialog.
