Omron FZ Series User Manual

5
* Items indicated with an asterisk are dedicated items, and cannot be substituted.
Peripheral Device
Input Device
Camera
LCD monitor
Power Supply
FZ-M08 (8.4-inch)
FZ-VM (2 m, 5 m)
Standalone camera FZ-SC/FZ-S
FZ-SC2M/FZ-S2M
FZ-SC5M/FZ-S5M
FZ-SFC/FZ-SF
FZ-SPC/FZ-SP
* FZ-SC2M, FZ-S2M, FZ-SC5M and FZ-S5M can only be connected to FZ3-7__-10 and FZ3-H7__-10/
FZ3-9__-10/FZ3-H9__-10.
USB memory
FZ-MEM1G
Mouse, track ball
(Commercially available USB devices)
Box type FZ3-350-10/FZ3-355-10
FZ3-H350-10/FZ3-H355-10
FZ3-750-10/FZ3-755-10
FZ3-H750-10/FZ3-H755-10
FZ3-950-10/FZ3-955-10
FZ3-H950-10/FZ3-H955-10
LCD integrated type FZ3-300-10/FZ3-305-10
FZ3-H300-10/FZ3-H305-10
FZ3-700-10/FZ3-705-10
FZ3-H700-10/FZ3-H705-10
FZ3-900-10/FZ3-905-10
FZ3-H900-10/FZ3-H905-10
Front view
Touch pen (standard accessory)
Right-side view
Controller
*
Controller
Monitor cable
*
*
*
*
*
Recommended Model
By OMRON Corporation
S8VS-18024
Intelligent camera
㪝㪱㪄㪪㪣㪚㪈㪌㪆㪝㪱㪄㪪㪣㪚㪈㪇㪇
Automatic focus camera
㪝㪱㪄㪪㪱㪚㪈㪌㪆㪝㪱㪄㪪㪱㪚㪈㪇㪇
Use the monitor to check images and display the condition-setting
menus. The Controller performs the image processing specified by
the user settings and outputs the measurement results.
The Controlle r perform s the image
processing specified by the user settings
and outputs the measurement results.
Use the monitor to check images
and displa y the condition-settin g
menus.
Detects workpieces as images.

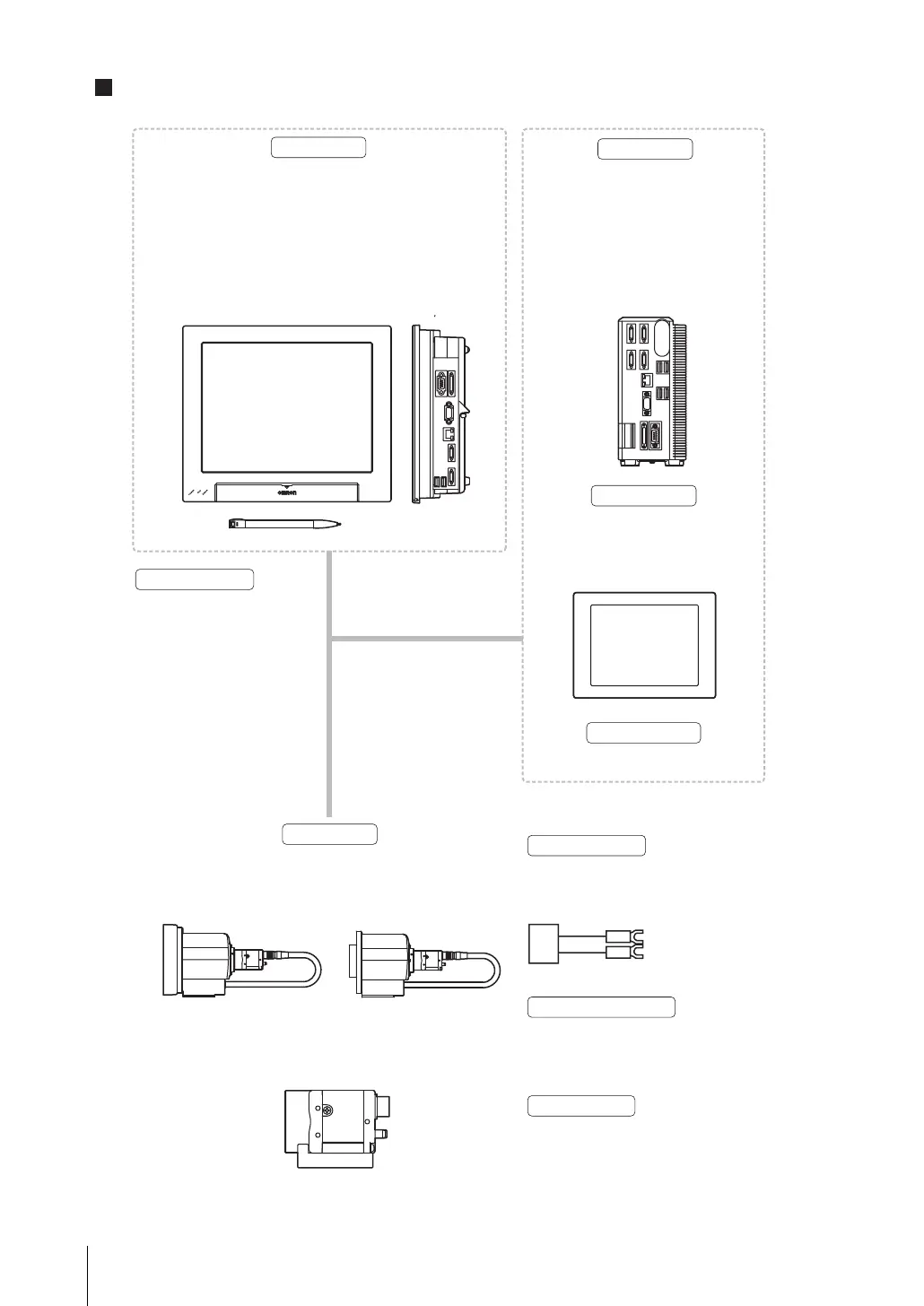

Basic Configuration Controller FZ3
Camera cable
FZ-VS (2 m, 5 m, 10 m)
Camera cable
*
Bend resistant camera cable
FZ-VSB (2 m, 5 m, 10 m)
Right-angle camera cable
FZ-VSL (2 m, 5 m, 10 m)
Long-distance camera cable
FZ-VS2 (15m)
Long-distance Right-angle
camera cable
FZ-VSL2 (15m)
fz3_4ch_setup_E.book Page 5 Friday, August 7, 2009 5:45 PM
