Omron H3DS Series User Manual

27

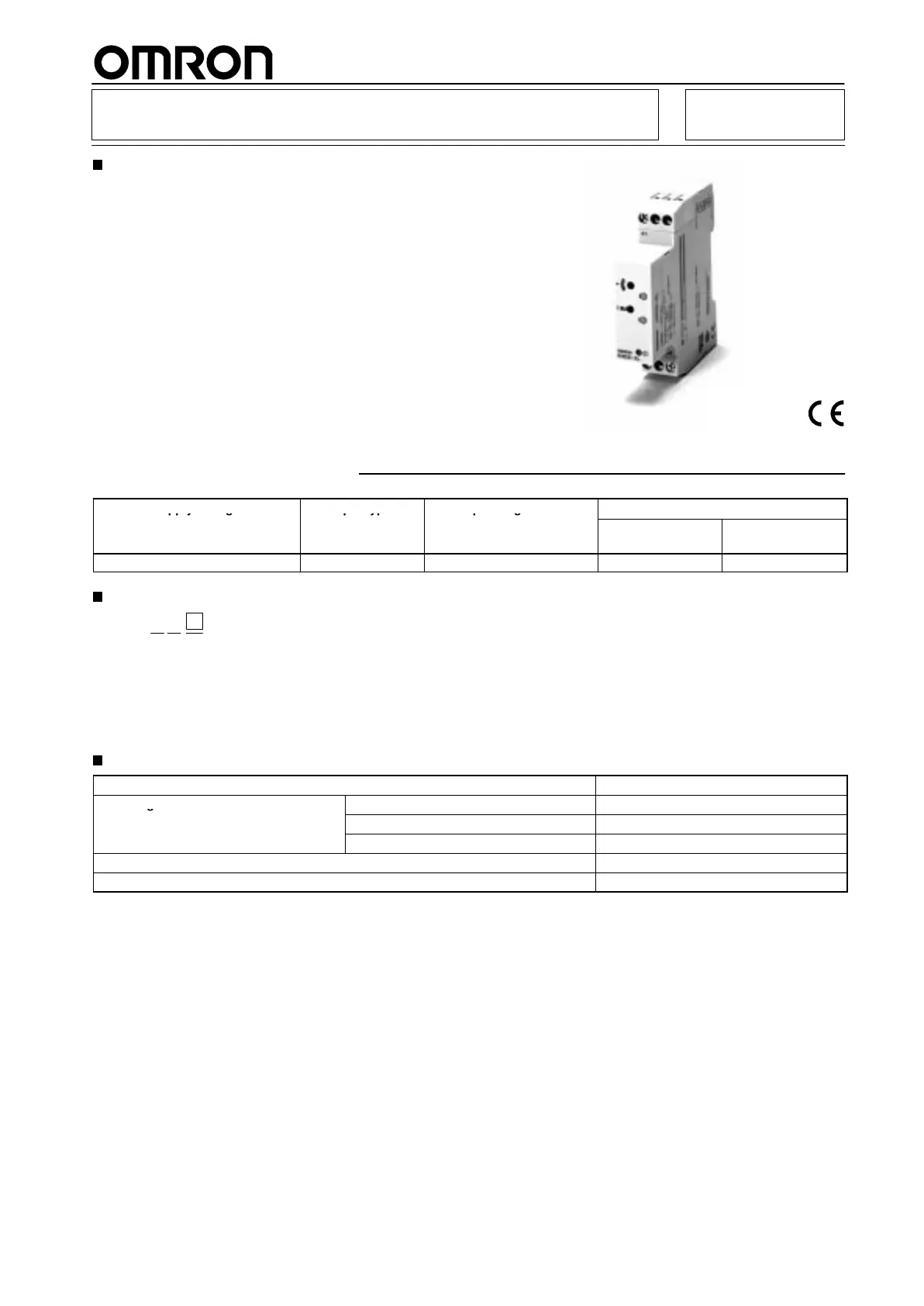

Solid-state Two-wired Timer
H3DS-X
Covers wide range of supply voltage (24 to 230
VAC/VDC).
R C
Ordering Information
Supply voltage Input type Operating mode
Model
Supp y o age
pu ype
Ope a g ode
Screw terminal
type
Screwless spring
terminal type
24 to 230 V AC/VDC (50/60 Hz) No-input available ON-delay H3DS-XL H3DS-XLC
Model Number Legend
H3DS -X L
1
1. X: Two-wired timer
2. L: Smart lock mechanism
3. None: Screw terminal type
C: Screwless spring terminal type
32
Accessories (Order Separately)
Lock Key Y92S-38
Mounting T rack
50 cm (l) x 7.3 mm (t) PFP-50N
ou g ac
1 m (l) x 7.3 mm (t) PFP-100N
1 m (l) x 16 mm (t) PFP-100N2
End Plate PFP-M
Spacer PEP-S

Omron H3DS Series Specifications

General

Type	Solid-state Timer
Operating Temperature	-10°C to 55°C
Output Type	Relay
Terminal Type	Screw terminals
Storage Temperature	-25°C to 65°C
Mounting	DIN Rail
Output	SPDT
Functions	On-Delay, Off-Delay, Interval, One-Shot
Protection Rating	IP20
Contact Form	SPDT
