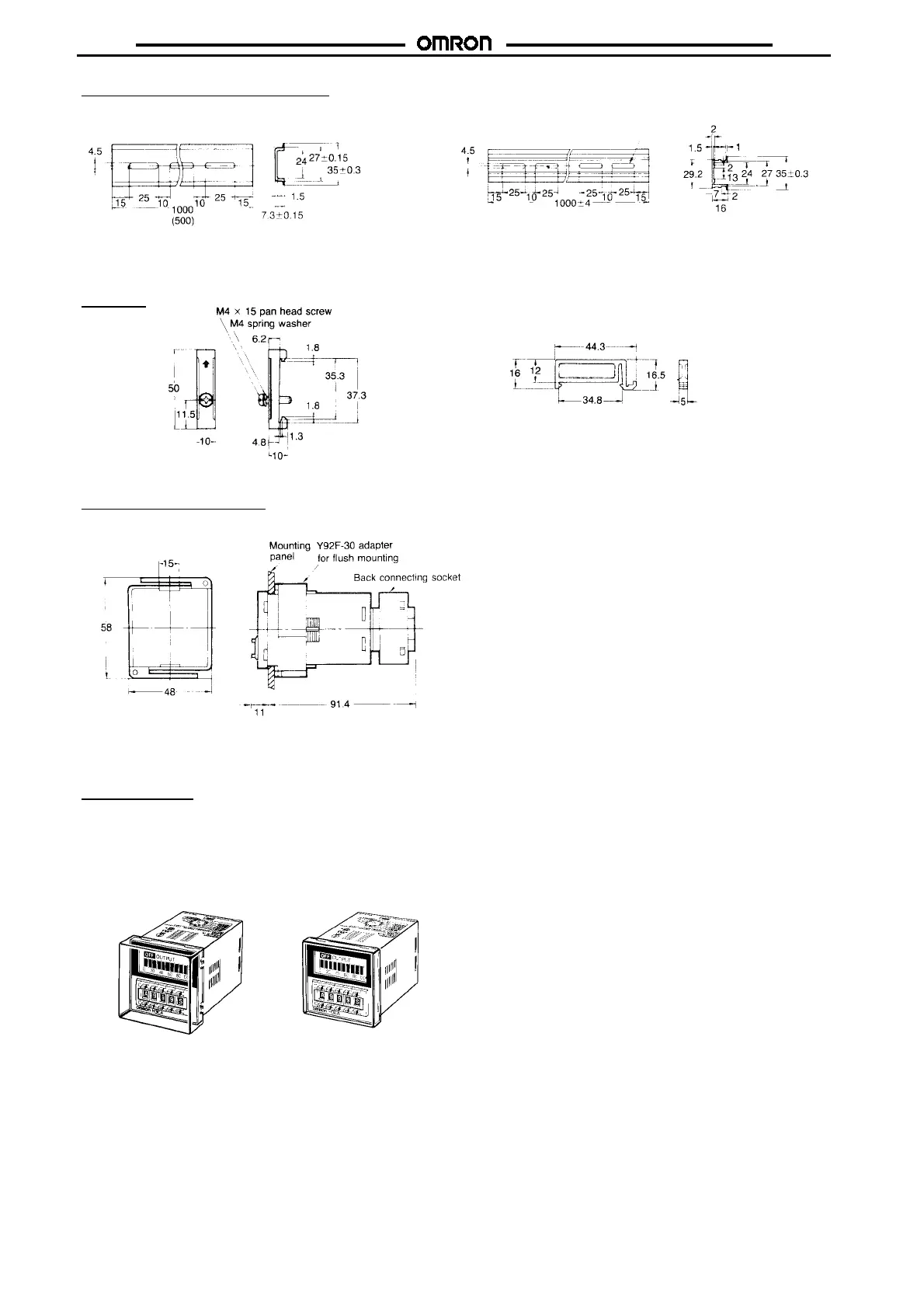

Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve, 25
'
4.5 elliptic holes (see note)
(see note)
Note: This dimension applied to PFP-50N. Note: Atotalof12-25x4.5ellipticholesareprovidedwith6holes
cut from each rail end at a pitch of 10 mm between holes.
End Plate
PFP-M
PFP-S
Adapter for Flush Mounting
Y92F-30
Note: Pay attention to the orientation of the adapter when
mounting two ormoretimersinaverticalorhorizontalline.
Protective Cover
Y92A-48B/Y92A-48D
The protective cover protects the front panel, particularly the time setting section,
against dust, dirt and water drip, as well as prevents the set value from being
altered due to accidental contact with the time setting knob.
Y92A-48D
Hard Plastic Cover
Y92A-48D
Soft PVC Cover
Note: The Y92A-48B Protective Cover is made of a hard plastic
and therefore, must be removed to change the timer set
value. However, since the Y92A-48D Protective Cover is
made of PVC, the set value can be altered by pressing on
thesurfaceofthecover.
