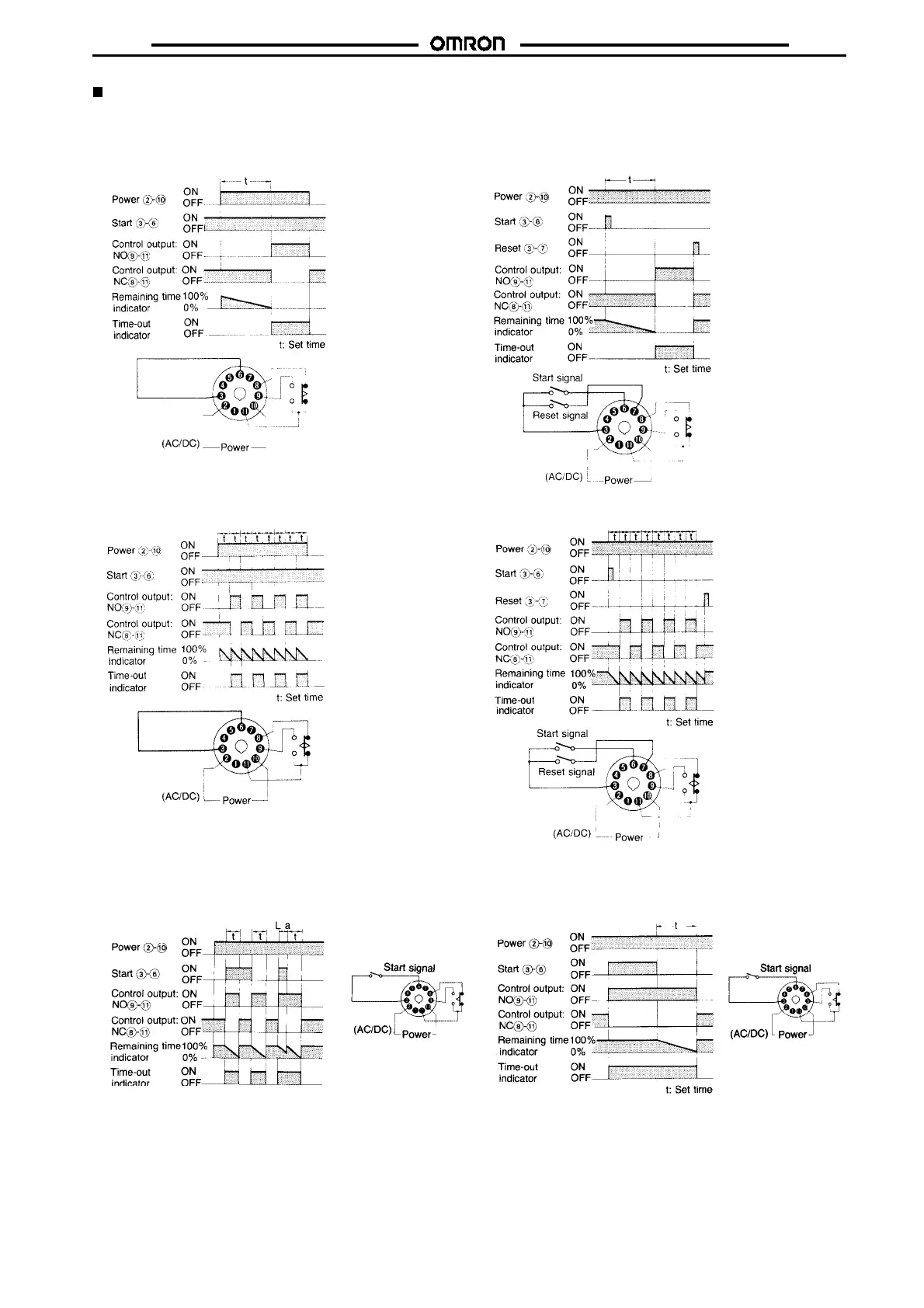

Application Examples
Standard type H3CA is used for the following application examples. In the schematic diagrams, each thick the indicates the wiring necessary
for selecting the desired operation mode.
ON-delay Operation (A Mode)
Power-ON Start/Power-OFF Reset Signal Start/Signal Reset
(+)or(--)
(+)
(+)
Flicker Operation (B Mode)
Power-ON Start/Power-OFF Reset Signal Start/Signal Reset
(+)
(+)
Signal ON/OFF-delay Operation 1 (C Mode)
Signal ON/OFF-start/Instantaneous Operation/
Time-limit Reset
t: Set time, t-a: Time within the set time
Signal OFF-delay Operation 1 (D Mode)
Signal Start/Instantaneous Operation/Time-limit Reset
(+)
(+)
or (--)
(+)or(--)
or (--)
(+)or(--)
(+)or(--)
(+)or(--)
or (--)
or (--)
or (--)
or (--)
(+)or(--)
