Omron H5CN User Manual

H5BR
H5BR
171

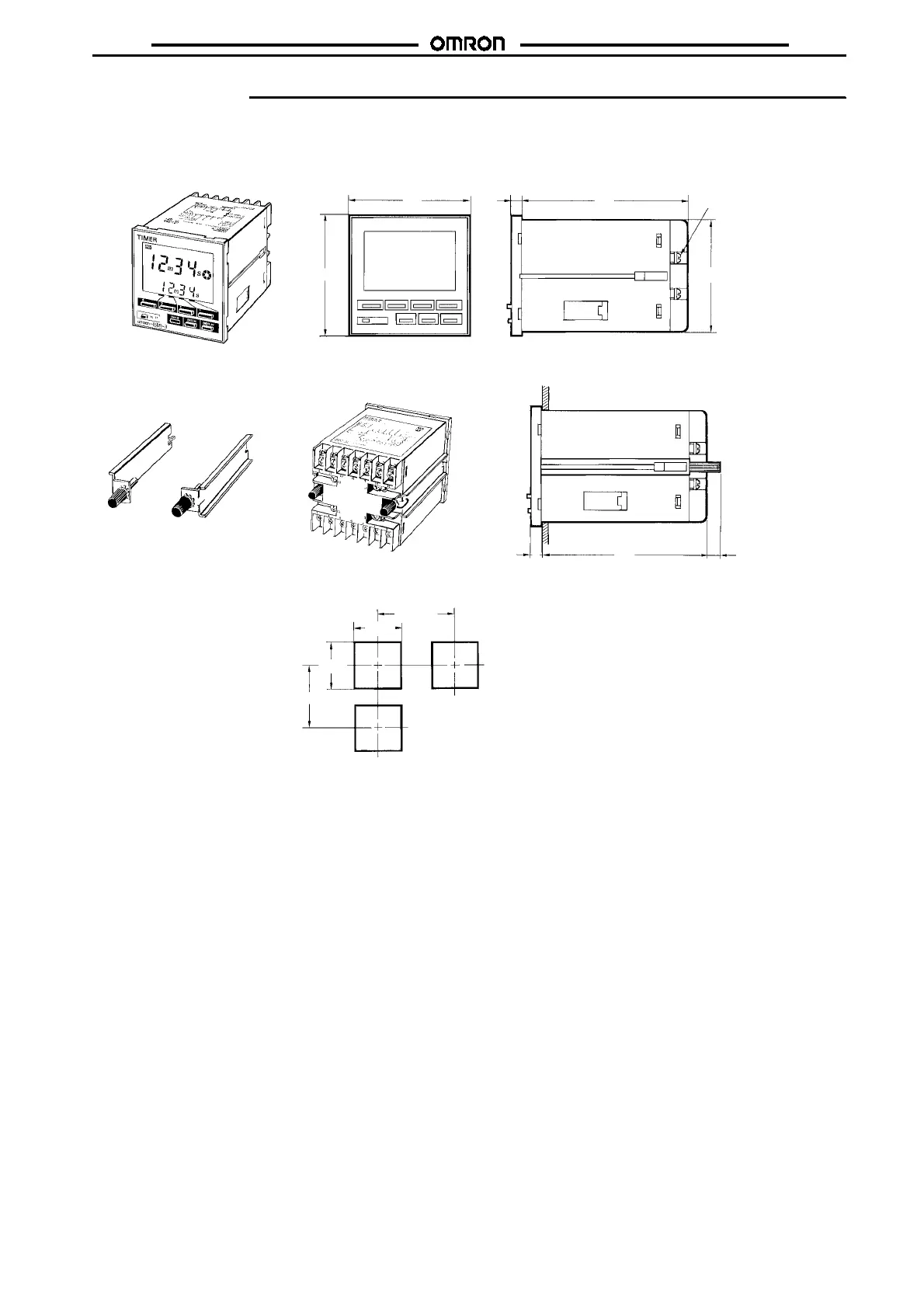

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Panel Mounting
H5BR
M3.5 terminal screw
(effective length: 6 mm)
7 + panel thickness
Panel Mounting Adaptor
Panel Cutouts
Panel cutouts are
as shown at right.
(according to DIN43700).
Panel
72
72
6
100
67.6
1006
100 min.
82 min.
68
+0.7
-- 0
68
+0.7
-- 0

Omron H5CN Specifications

General

Brand	Omron
Model	H5CN
Category	Timer
Language	English
