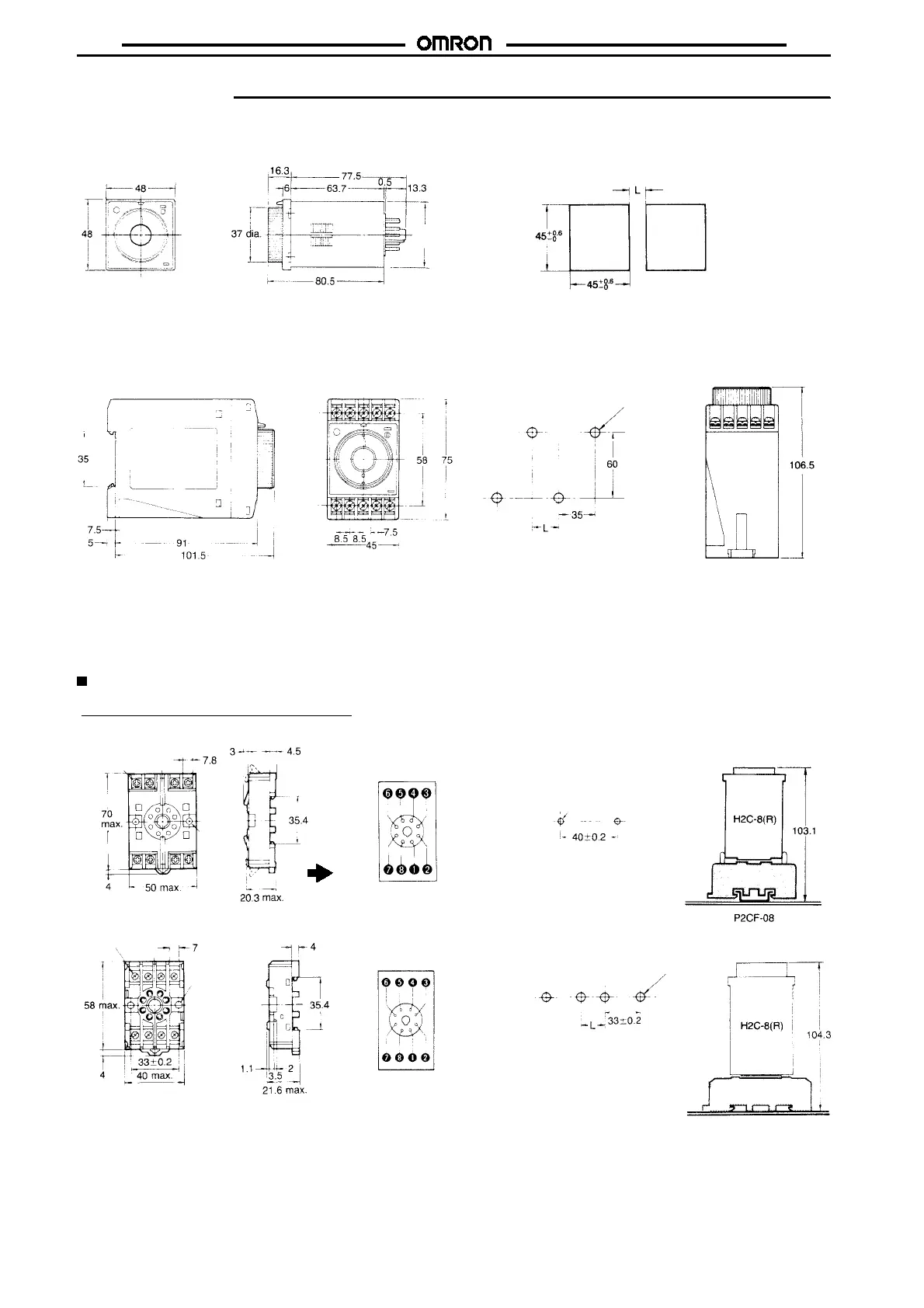

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H2C/H2C-R/ H2C-8/H2C-8R
For Flush Mounting
For a load current of 3 A max., dimension L becomes
3 mm min. with an interval of 0 mm between timers.
For a load current of 6 A max., dimension L becomes
8 mm min. with an interval of 5 mm between timers.
H2C-F/H2C-FR
Mounting Holes Mounting Height of Timer
For a load current of 1 A max., dimension L becomes
10 mm min. with an interval of 0 mm between timers.
For a load current of 3 A max., dimension L becomes
15 mm min. with an interval of 5 mm between timers.
For a load current of 6 A max., dimension L becomes
20 mm min. with an interval of 10 mm between timers.
Two, M4 or 4.5 dia. holes
44.8 x 44.8
Accessories (Order Separately)
Track Mounted/Front Connecting Socket
P2CF-08
Two,
4.5 dia.
holes
Two, 4.5 dia. or
Two, M4
Eight, M3.5 x 7.5
sem
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
PF085A
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
For a load current of 3 A max., dimen-
sion L becomes 14 mm min. with an in-
terval of 0 mm between timers.
For a load current of 6 A max., dimen-
sion L becomes 19 mm min. with an in-
terval of 5 mm between timers.
Eight, M3.5
'
7sems
Two, 4.5
dia. holes
Two, M4 or 4.5 dia. holes
Top View
