H5S
H5S
244

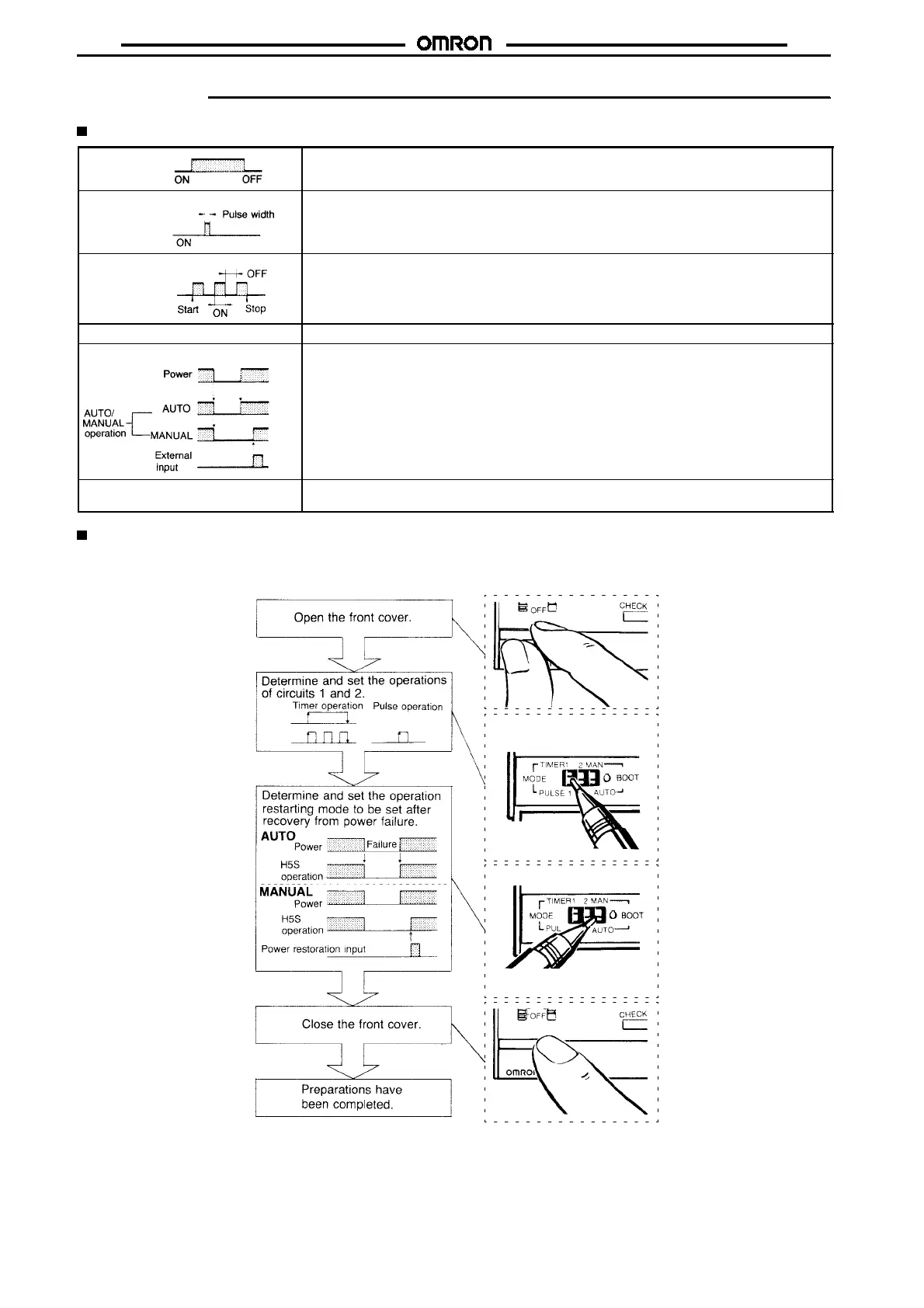

Operation
Operation Function
Timer operation Controls the output according to the set time of ON and OFF (the time can be set in units of
1min)
Pulse-output operation Produces the output for a fixed duration at the set ON (pulse width: 1 to 59 s, or 1 to 59 min).
The pulse width can be set in units of 1 s or 1 min.
The pulse width can be set for each step.
Cyclic operation Repeatedly performs an ON/OFF operation during a specific period, which can be set in units
of 1 min.
Forced ON/OFF operation Forcibly turns ON/OFF the output by a side switch
Operation on power restoration AUTO: Operation is automatically started on power recovery
MANUAL: Operation is started by applying an external signal after power recovery
Day override operation Executes a day’s operation on another day. (The specified new operation is performed only for
one week.)
Programming
Before setting the parameters necessary for each operation, the operation of circuits (outputs) 1 and 2 must be determined. Also, whether the
operation is restarted automatically or manually after power failure recovery should be specified.
In this example, circuit 1 performs an
ordinary timer operation, while circuit 2
performs a pulse output operation.
Operate the switch
pins with the tip of a
ballpoint pen, etc.
The automatic operation restarting
mode is set in this example.
Operate the switch pins with the tip
of a ballpoint pen, etc.
To Next Page
