H3CR-G
H3CR-G
49

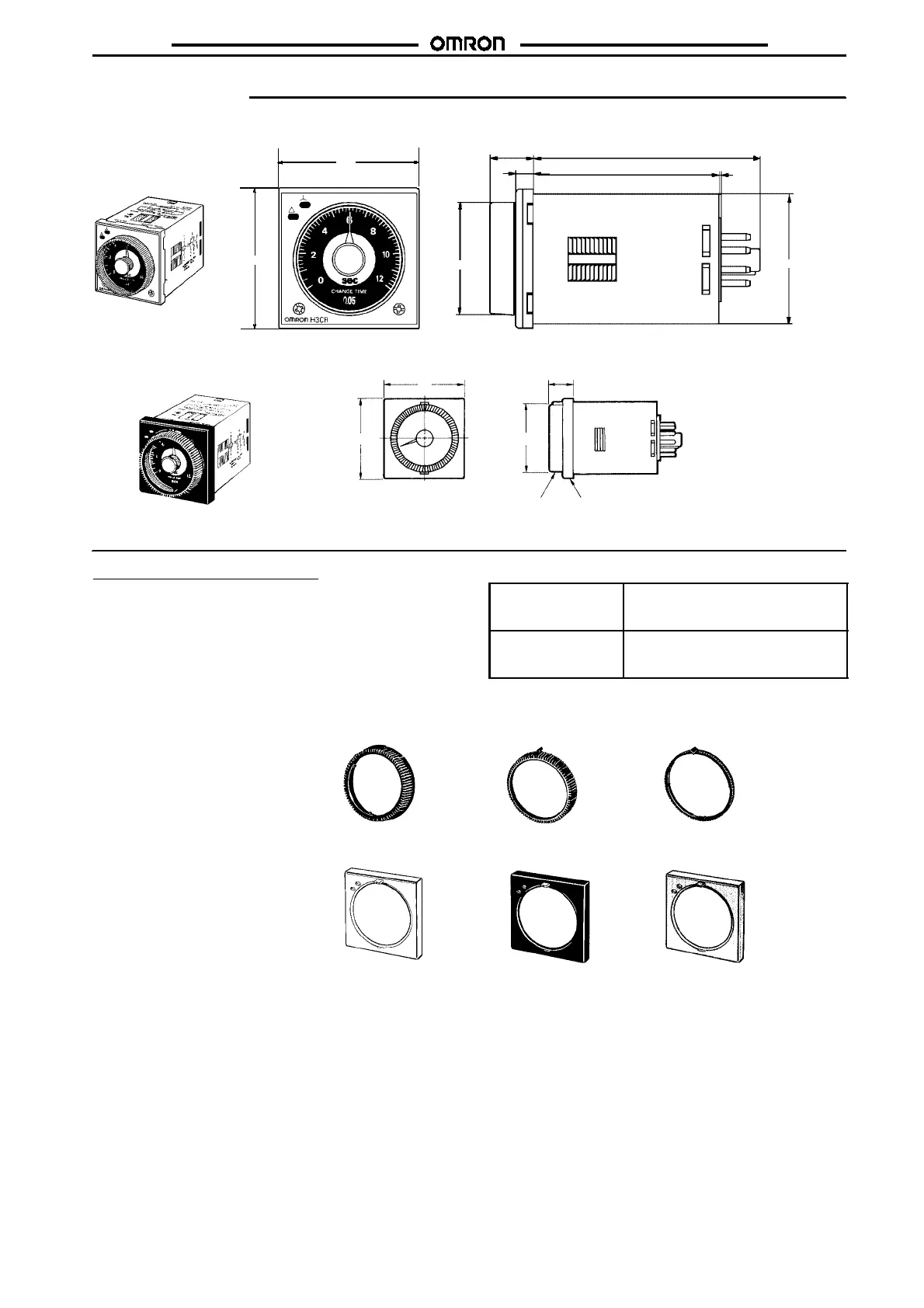

Dimensions
Note: All units are in millimeters unless otherwise indicated.
15
6
78.0
63.7
39 dia
44.8 x 44.8
0.7
48
48
Dimensions with Set Ring
Time setting ring Panel cover
50
16.5
50
42 dia.
Time Setting Ring/Panel Cover
There are three types of Panel Covers (Y92P-48GL, Y92P-48GB,
and Y92P-48GM), all of which are available in three colors. Use the
most suitable type of Panel Cover with the design of the scaling
plate according to the application.
When setting a given time for the Timer, use of the Y92S-27 or
Y92S-28TimeSettingRingfacilitatesthetimesettingoperationand
minimizes possible setting errors by operators.
The Time Setting Ring and Panel Cover should be used as a pair.
Setting a specific
time
Time Setting Ring A (Y92S-27) and
Panel Cover (Y92P-48GL, -48GB, or
-48GM)
Limiting the setting
range
Time Setting Ring B or C (Y92S-28),
and Panel Cover (Y92P-48GL, -48GB,
or -48GA)
Y92S-27
Time Setting A
Y92S-28
Time Setting B
Y92P-48GL
Light Gray
Y92P-48GB
Black
Y92P-48GM
Medium Gray
Y92S-28
Time Setting C
