Omron H7BX

34
H7BX

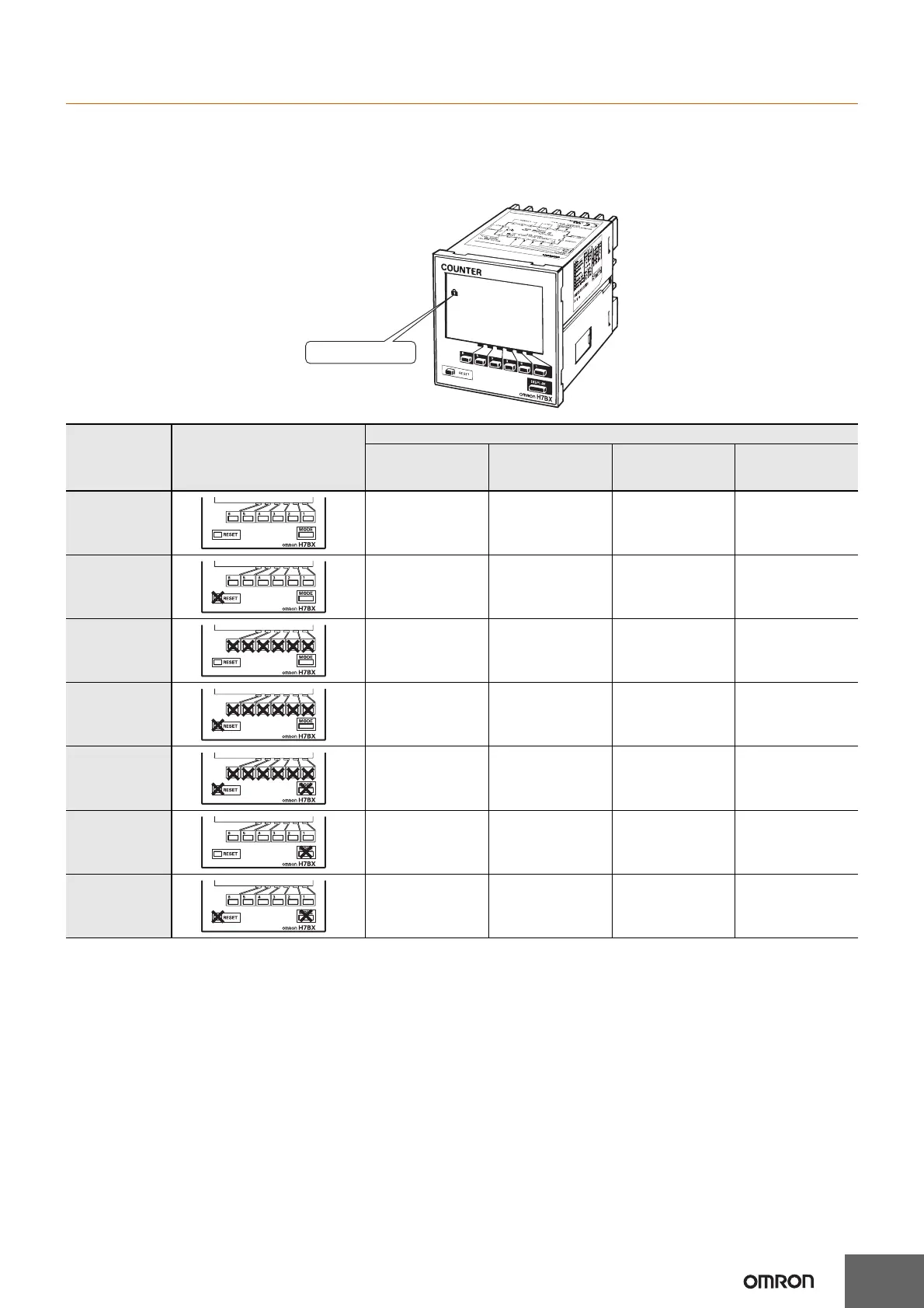

Key Protect Level
When the key-protect switch is set to ON, it is possible to prevent setting errors by prohibiting the use of certain operation keys by specifying the
key protect level (KP-1 to KP-5). The key protect indicator is lit while the key-protect switch is set to ON. Confirm the ON/OFF status of the key
protect switch after the H7BX is mounted to the panel.
Key protection is enable by short-circuited key protection terminals.
Note: Changing to configuration selection mode and function selection mode.
Level Meaning
Details
Changing mode
(See note.)
Switching display
in run mode
Reset Key
Up/Down Keys
(Up Keys for 6-digit
models)
KP-1
(default setting)
No Yes Yes Yes
KP-2 No Yes No Yes
KP-3 No Yes Yes No
KP-4 No Yes No No
KP-5 No No No No
KP-6 No No Yes Yes
KP-7 No No No Yes
OMRON Corporation
COUNTER
H7BX
-
A
MADE IN CHINA
Lot No. X X X X X X
Key protect indicator
