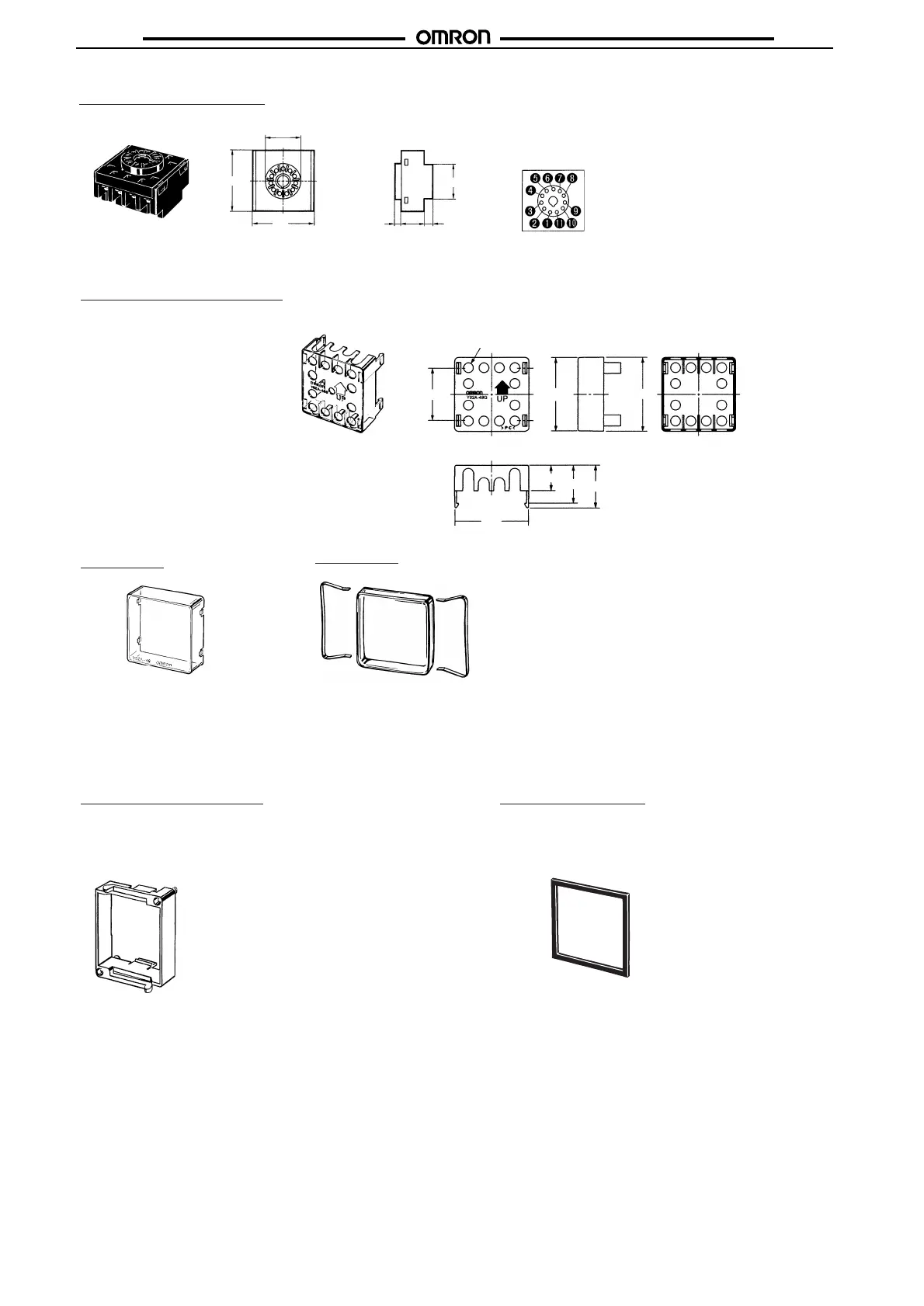

Back Connecting Socket
P3GA-11
Terminal Arrangement/
Internal Connections
(Bottom View)
45
45
27 dia.
25.6
4.5
16.3
6.2
Finger Safe Terminal Cover
Conforming to VDE0106/P100
Y92A-48G
(Attachment for P3GA-11
Socket)
Twelve, 6.4-dia. holes
34
47.7 x 47.7
48 x 48
47.4
16.5
24.6
27.6
Note: Finger protection can be ensured by using in combination with the Y92A-48G Terminal Cover.
Hard Cover
Y92A-48
Soft Cover
Y92A-48F1
Note: 1. Depending on the operating environment, the
condition of the Soft Cover may deteriorate, and
it may shrink or become harder. Therefore, it is
recommended that the Soft Cover is replaced
regularly.
2. The H7CX’s panel surface is water-resistive
(conforming to IP66) and so even if drops of wa-
ter penetrate the gaps between the keys, there
will be no adverse effect on internal circuits. If,
however, there is a possibility of oil being
present on the operator’s hands, use the Soft
Cover. The Soft Cover ensures protection
equivalent to IP54F against oil. Do not, howev-
er, use the H7CX in locations where it would
come in direct contact with oil.
Y92F-30
Flush Mounting Adapter
(provided with screw-terminal models)
Waterproof Packing
(provided with screw-terminal models)
Y92S-29
To Next Page
