Weighing Indicator K3HB-V 11

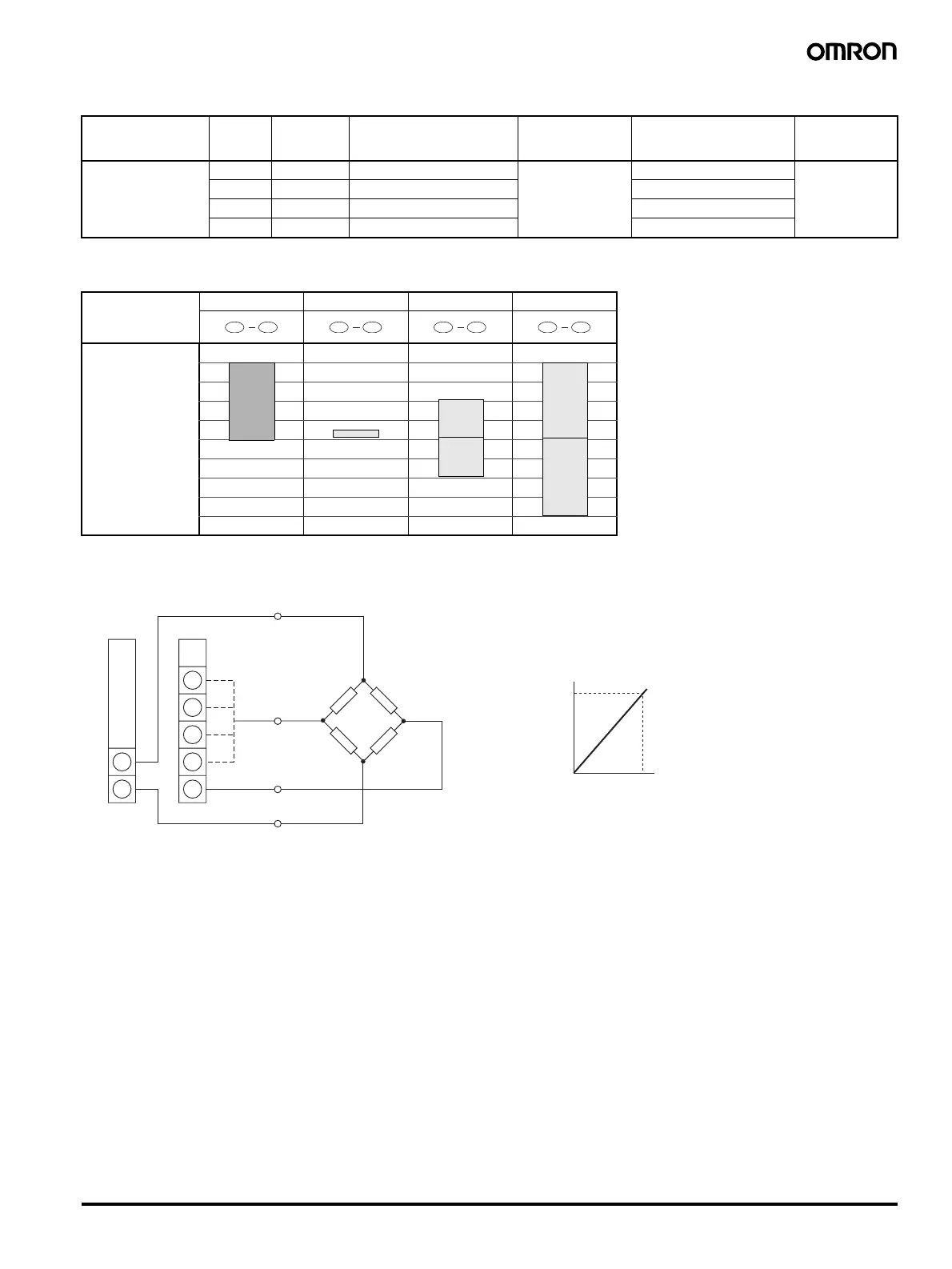

■ Input Ranges (Measurement Range and Accuracy)
Note: 1. The accuracy is for an ambient temperature of 23±5°C. For all ranges,10% or less of max. input ±0.1% FS.
2. The letters “rdg” mean “reading.”
The area shown in dark shading indicates the factory setting.
■ Load Cell Wiring Example ■ Scaling Example Using Range A
Indicated on the K3HB-V as 0 to 49N in the load cell specifications
(rated load 49N, recommended applied voltage 10 V, rated output 2
mV/V) (See note.)
Note: 2 mV/V indicates a load cell output of 2 mV for 1 V applied volt-
age for the rated load (when using a load of 1 N). When the ap-
plied voltage is 10 V, the load cell output is 20 mV (2 mV × 10).
Input type Range Set value Measurement range Input impedance Accuracy Allowable
instantaneous
overload (30 s)
K3HB-VLC
Load Cell, mV
A a Ud 0.00 to 199.99 mV 1 M
Ω min. ±0.1%rdg ± 1 digit max. ±200 V
B b Ud 0.000 to 19.999 mV ±0.1%rdg ± 5 digits max.
C c Ud ±100.00 mV ±0.1%rdg ± 3 digits max.
D d Ud ±199.99 mV ±0.1%rdg ± 1 digit max.
Input type a lc b lc c lc d lc
Connected
terminals
(mV)
200.000
150.000
100.000
50.000
0.00
−50.00
−100.00
−150.00
−200.00
199.99 199.99
100.00
19.999
0.00 0.000
−100.00
−199.99
E2 E6 E3 E6 E4 E6 E5 E6
−OUT
+OUT
+IN
−IN
Load cell
−
+
+10 V
0 V
E2
E
E3
E4
E5
E6
B
B5
B6
Display value
Input value
20 mV
49 N
Scaling values:
inp.a1=000.00
dsp.a1=00000
inp.a2=020.00
dsp.a2=49000
dp decimal point position: 00.000
