9
LD Series

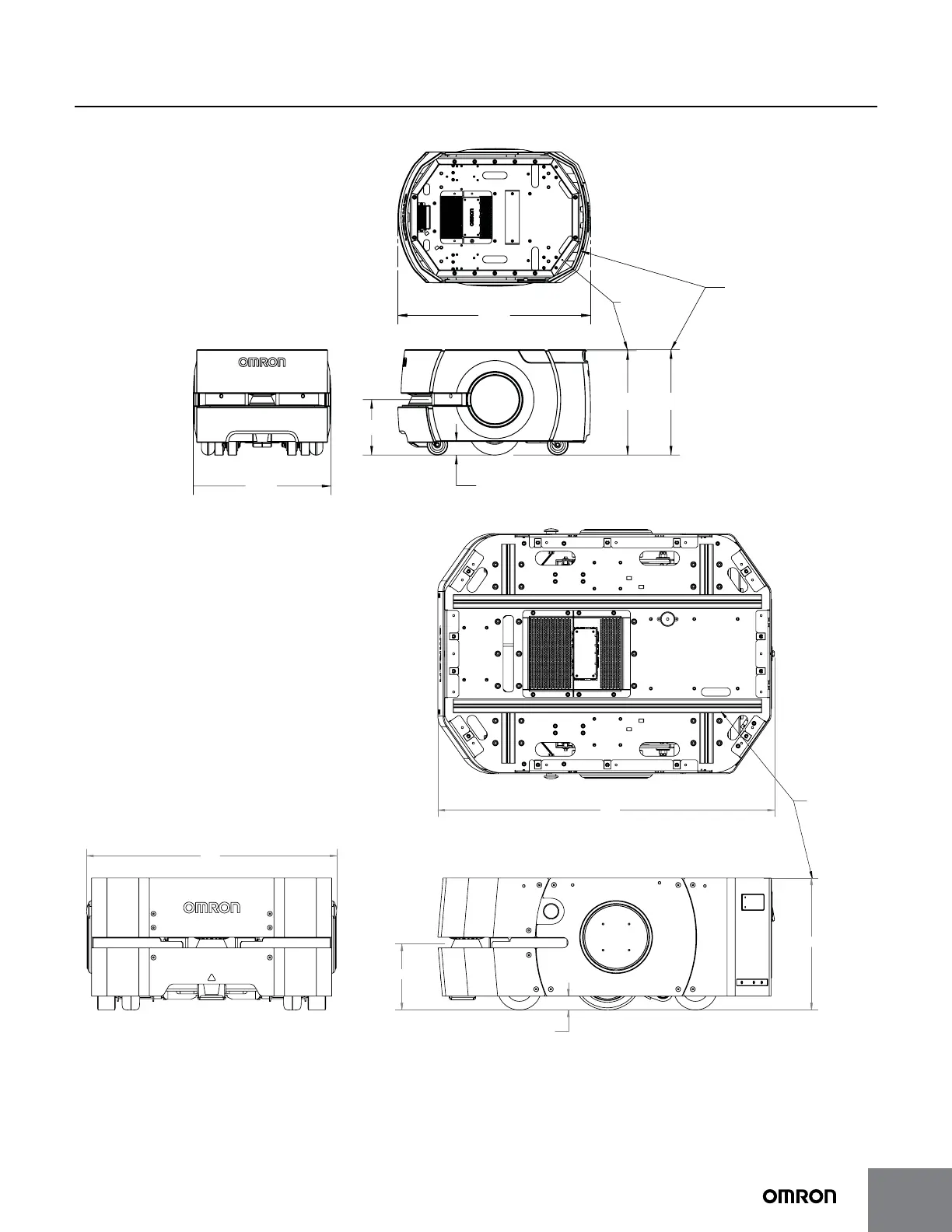

Dimensions
CAD data can be downloaded from Omron's website.
https://automation.omron.com/en/us/support/cad-library (Unit: mm)v
Mobile Robots-LD Platform
LD-60, LD-90
383
201
379
50
500
699
Mounting
Surface
Top of
cove
rs
LD-250
380
40
190
969
MOUNTING
SURFACE
720
