Omron MX2 Basic - Device Overview and Components; Understanding the Monitors Parts

MX2 Basic English
4
Note: for right arm use keep the tube
parallel with your little finger!
4 Hold the end of the cuff and wrap it
around your arm.
Caution! Be sure the cuff fits closely;
do not pinch your arm!
PULSE/min
DIA
mmHg
S
YS
mmHg
M
X2 Basic
C
B
N
L
M
S
R
Q
P

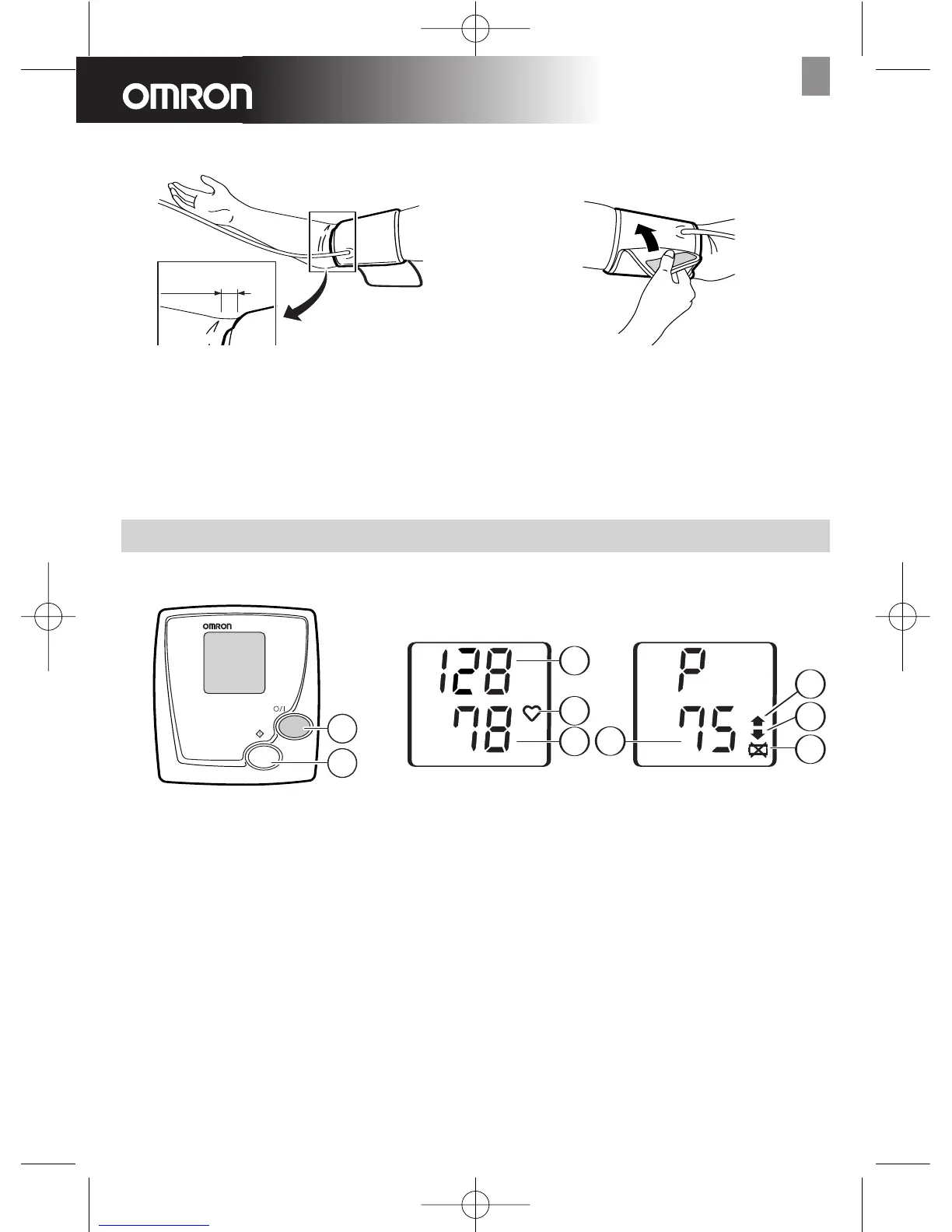

Control functions
B Start button
C On/off button
Measurement
L Systolic blood pressure in mmHg.
M Heart symbol: flash - measurement
takes place, light up - finish
measurement.
N Diastolic blood pressure in mmHg.
P Pulse: heartbeats per minute.
Q Battery exhausted: batteries are
weak/exhausted.
R Deflation: cuff deflates and
measurement finishes.
S Inflation: cuff inflates and measurement
starts.
1-2 cm
4 Operation
