Omron NB3Q-TW**B series User Manual

4 Connecting to Schneider PLCs
4-6
NB-series Programmable Terminals Host Connection Manual (V108)

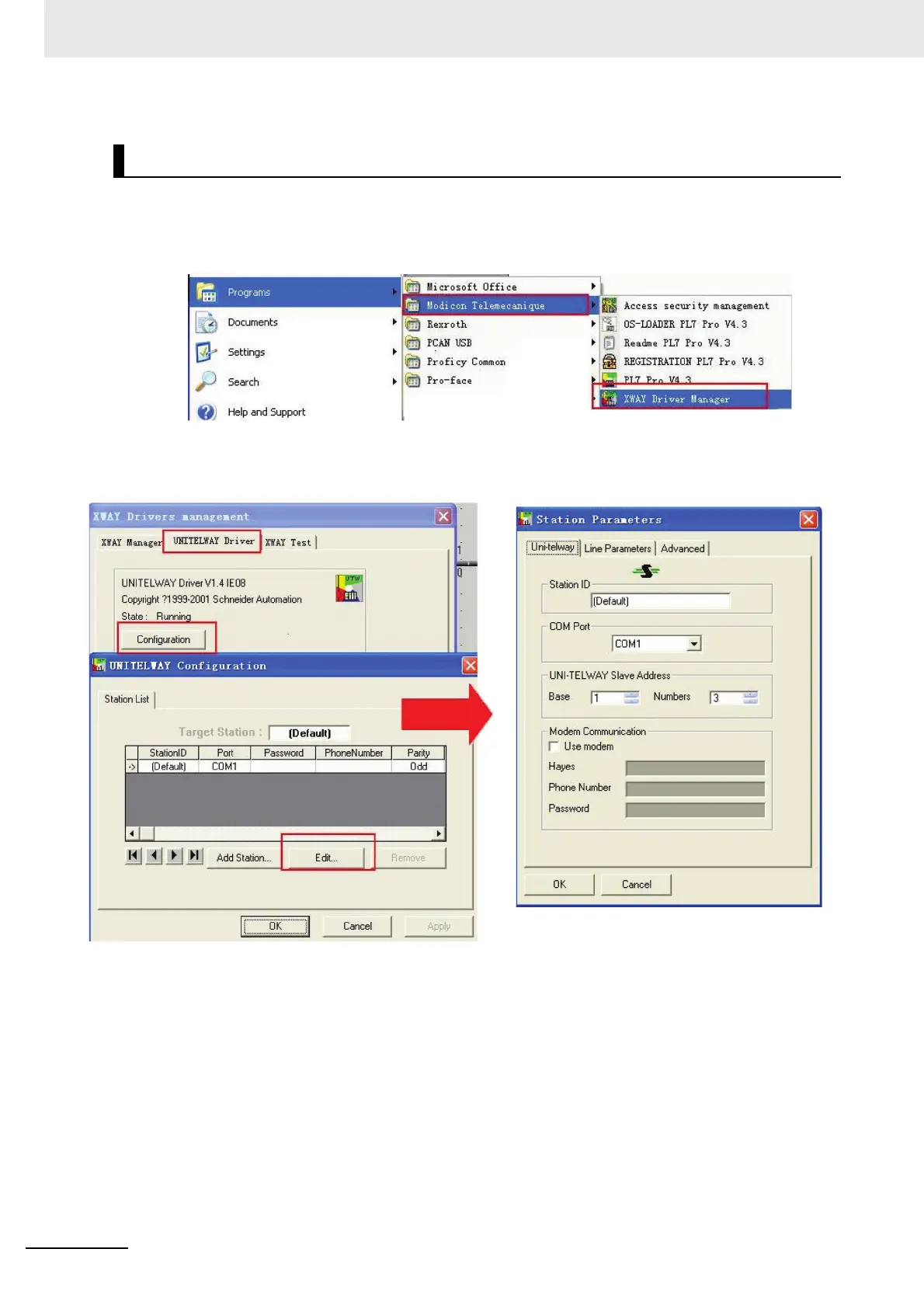

 PL7 Software Setting
1 Open “Programs” menu - Select [XWAY Driver Manager] from Modicon Telemecanique:
2 Select [UNITELWAY Driver] tab and push [Configuration] in the dialog box and finally select
[Edit] in the following dialog box to modify the related setttings of the communications.
PLC Settings
