11 Connecting to Keyence PLCs
11-8
NB-series Programmable Terminals Host Connection Manual (V108)
11-5 Cable Connection
RS-232 Communication Cable
Use Twisted Pair Cable to connect. Refer to Ethernet communication specifications in A-1-3 Communi-
cation Specifications in the NB-series Programmable Terminals Setup Manual (Cat. No. V107).

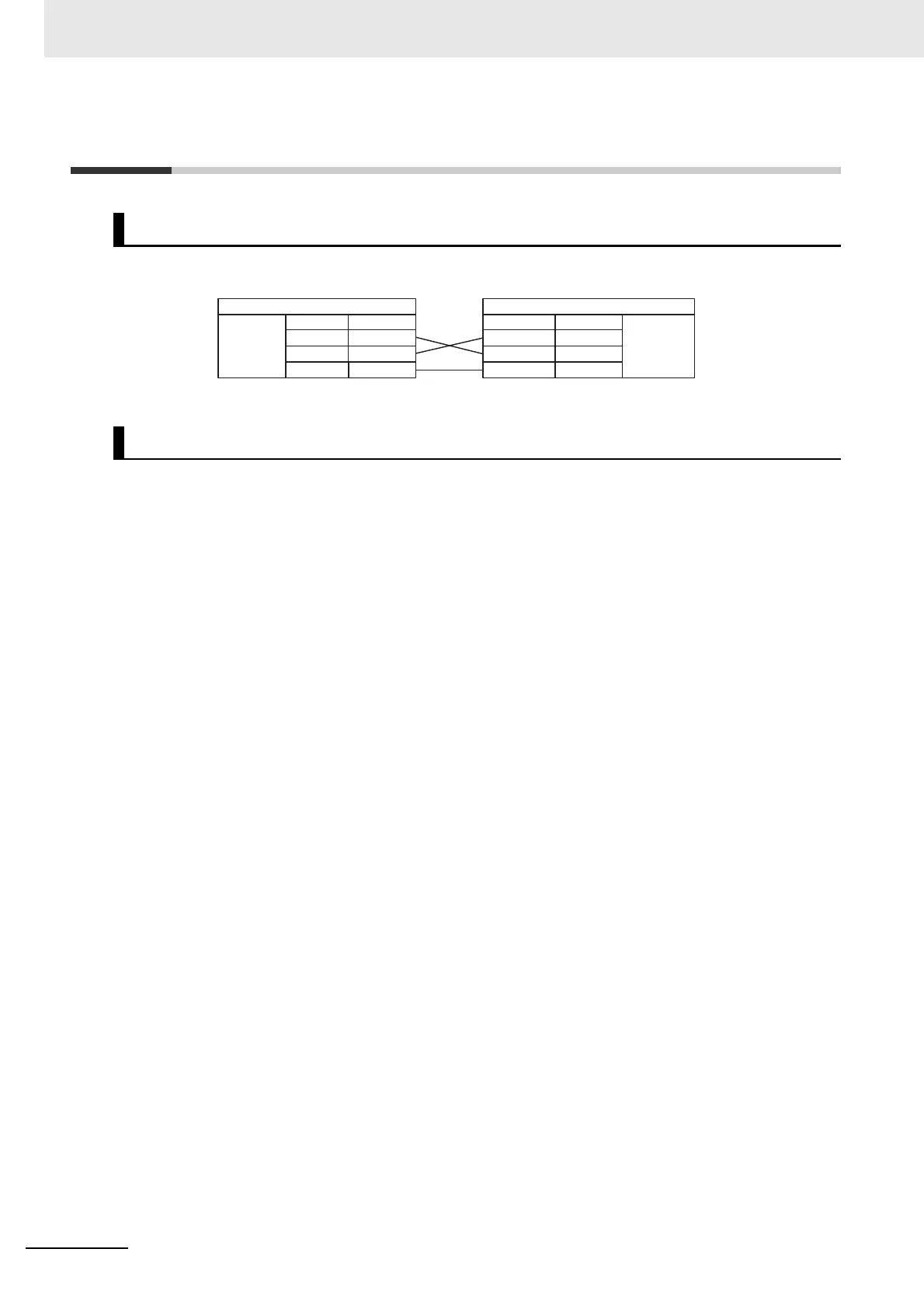

KV-3000 Series RS232 Communication Cable
KV-5000 Series Ethernet Communication Cable
PT (COM1/COM2)
Pin No.
2
3
9
Signal
SD
RD
SG
D-Sub
9 PIN
(Female)
PLC
Pin No.
5
3
4
Signal
SG
SD
RD
RJ-12
(Female)
To Next Page
