6 Connecting to Delta PLCs
6-4
NB-series Programmable Terminals Host Connection Manual (V108)

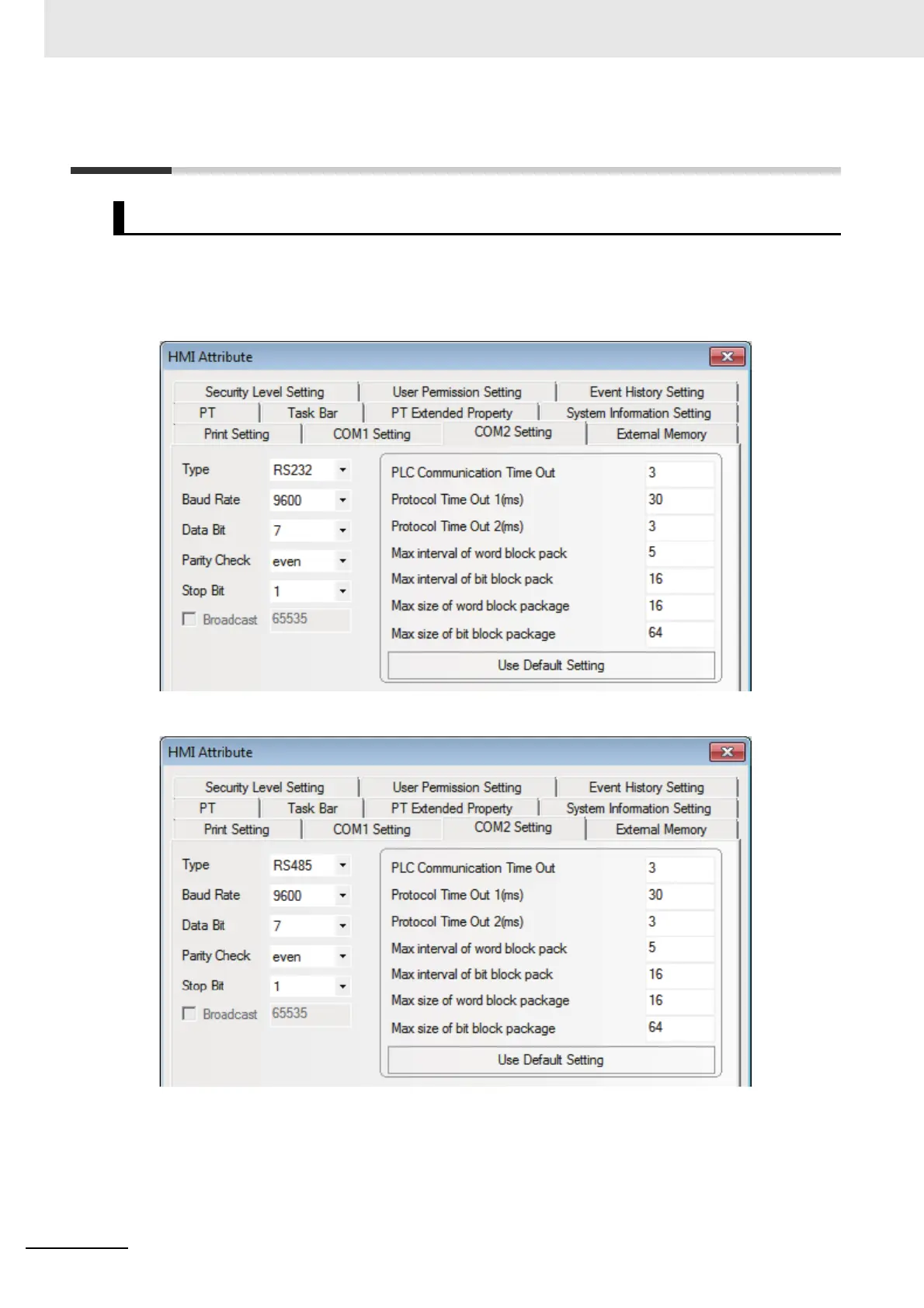

6-3 Communication Parameter Setting
PT default communication parameters: 9600bps (Baud Rate), 7 (Data Bit), even (Parity Check), 1 (Stop
Bit) and 1(PLC Station No.)
RS232 Communication
RS485 Communication
Note The communication parameters should be set through modification of D1120 value when RS485 communi-
cation is used.
PT Settings
To Next Page
