4 Connecting to Schneider PLCs
4-8
NB-series Programmable Terminals Host Connection Manual (V108)

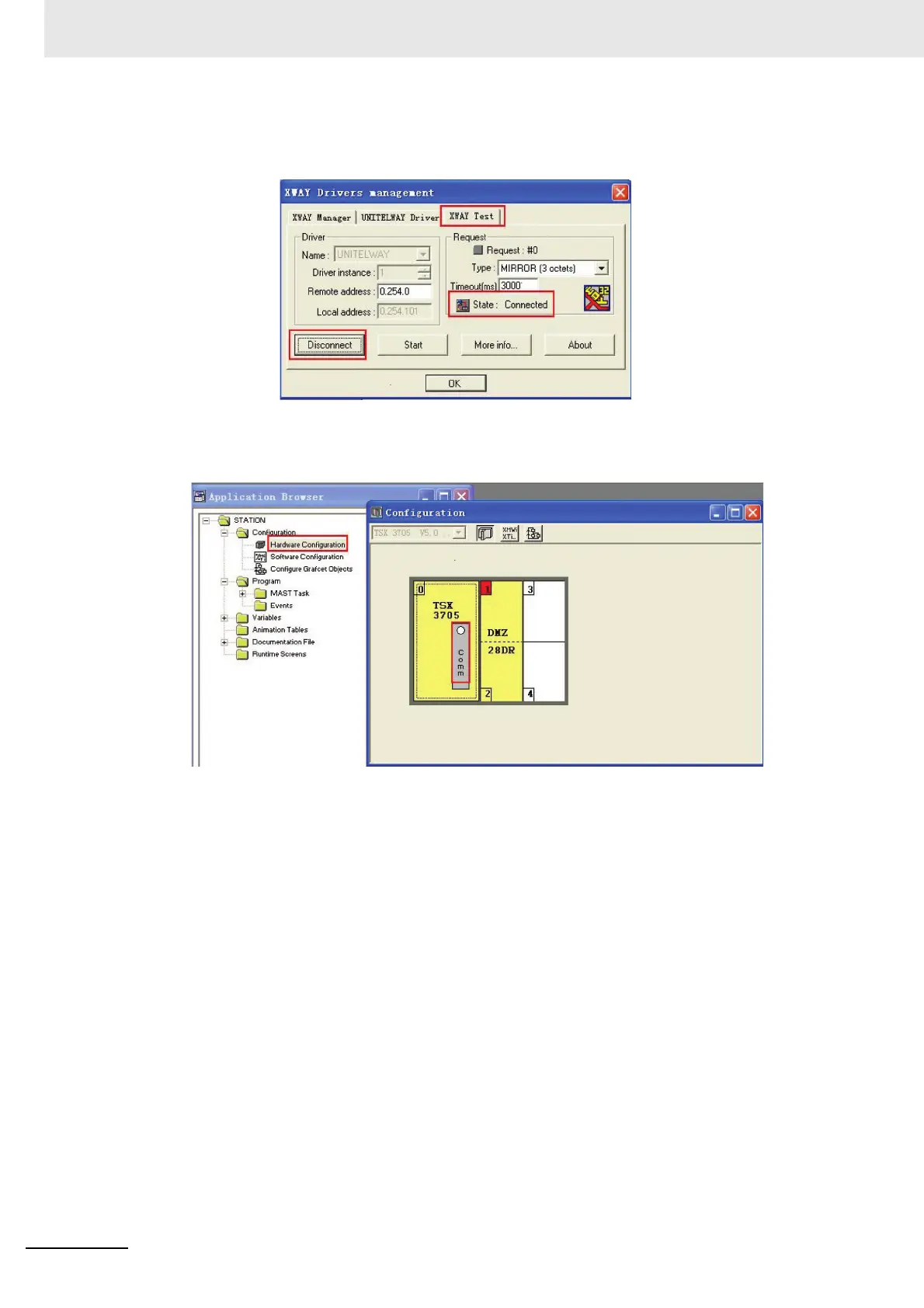

4 Click [XWAY Test][Connect] and the Connected prompt information will appear when the
connection is successful.
5 Open PL7 SoftwareNewClick [Hardware Configuration] in [STATION]Double-click [comm]
in popup window.
