5-13
5 Modbus Connection
NB-series Programmable Terminals Host Connection Manual (V108)
5-7 Example of NB as Modbus Slave
5

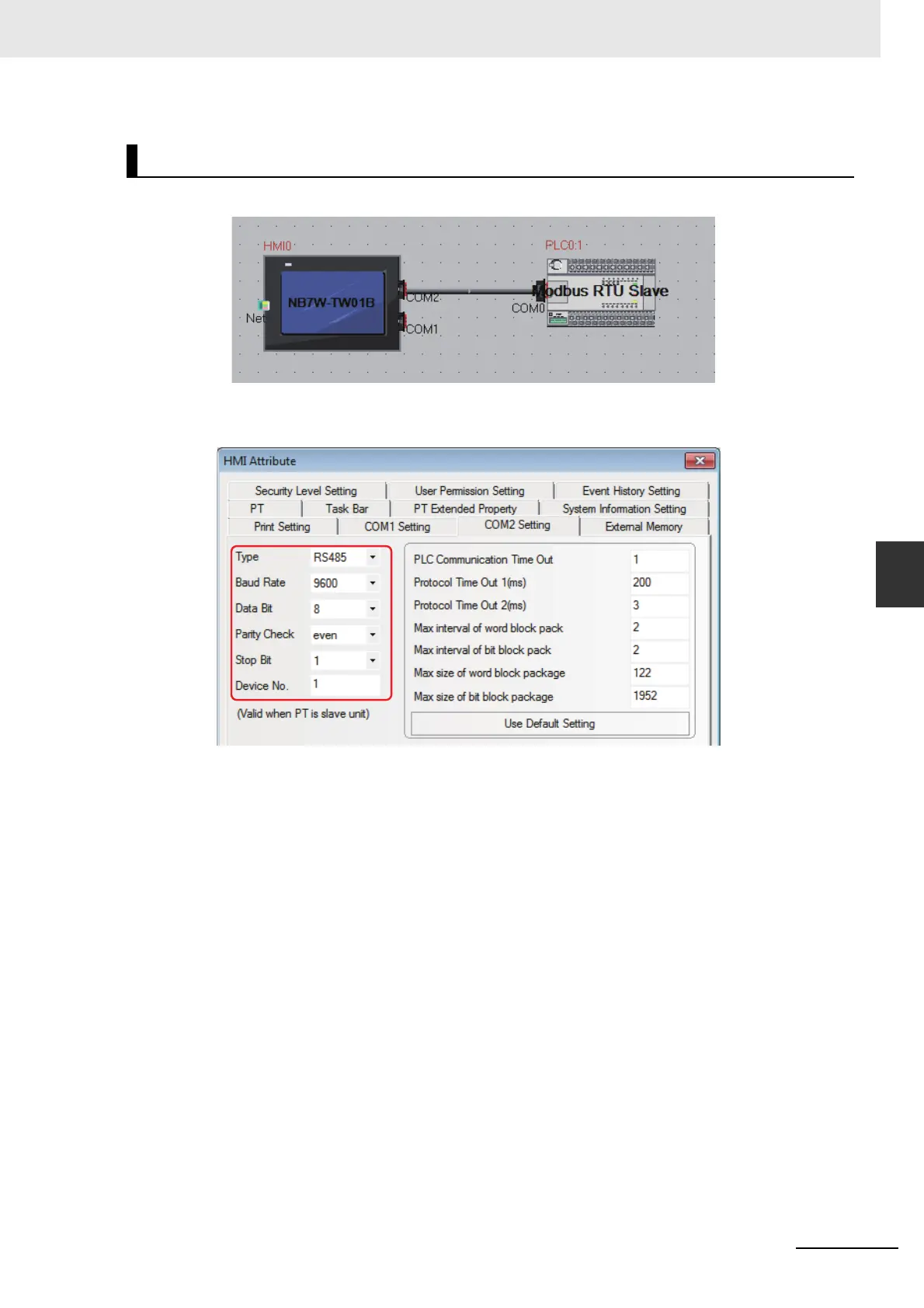

We take one NB7W-TW00B as example with the system configuration as shown below:
NB7W-TW00B communication settings: 9600 (Baud Rate), 8 (Data Bit), 1 (Stop Bit), Even (Parity
Check) and 1 (device No.), as shown below:
NB Unit Setting
