3 Connecting to Mitsubishi PLCs
NB-series Programmable Terminals Host Connection Manual (V108)
3-3 Communication Setting
3
3-3-8 When Using Mitsubishi FX Series Ethernet(TCP Slave) Communication Protocol

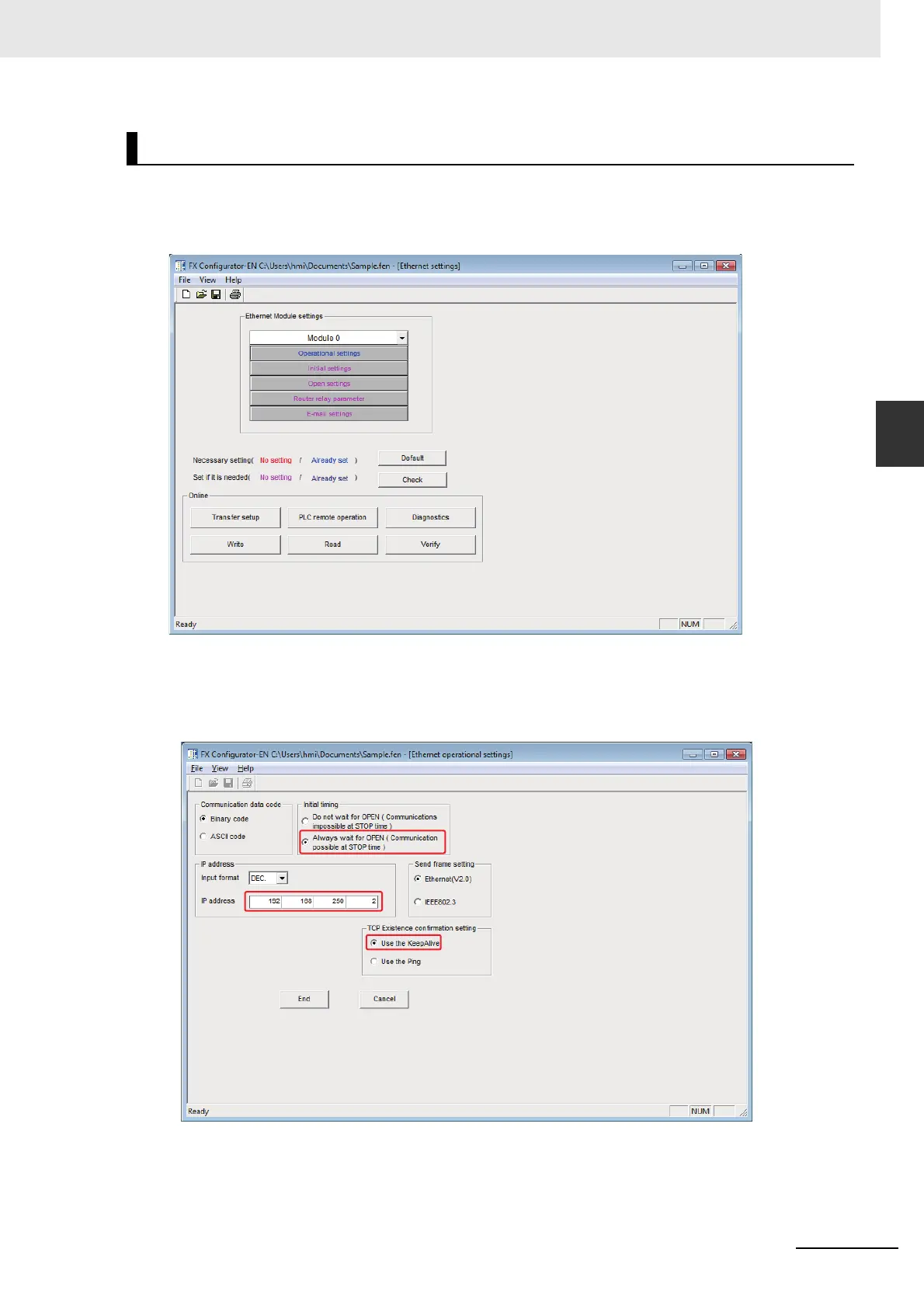

The PLC Settings when using Communication Protocol of Mitsubishi FX Series Ethernet (TCP Slave) is
as shown below.
1
Start-up Setting Tool, FX3U-ENET-L.
2
Click the [Operation Setting] to open [Ethernet Operation Setting].
Set the IP address to the same parameters as the PT settings.
Other settings should be the same as the dialog box as below.
PLC Settings
To Next Page
