Omron NJ Series Network Connection Guide

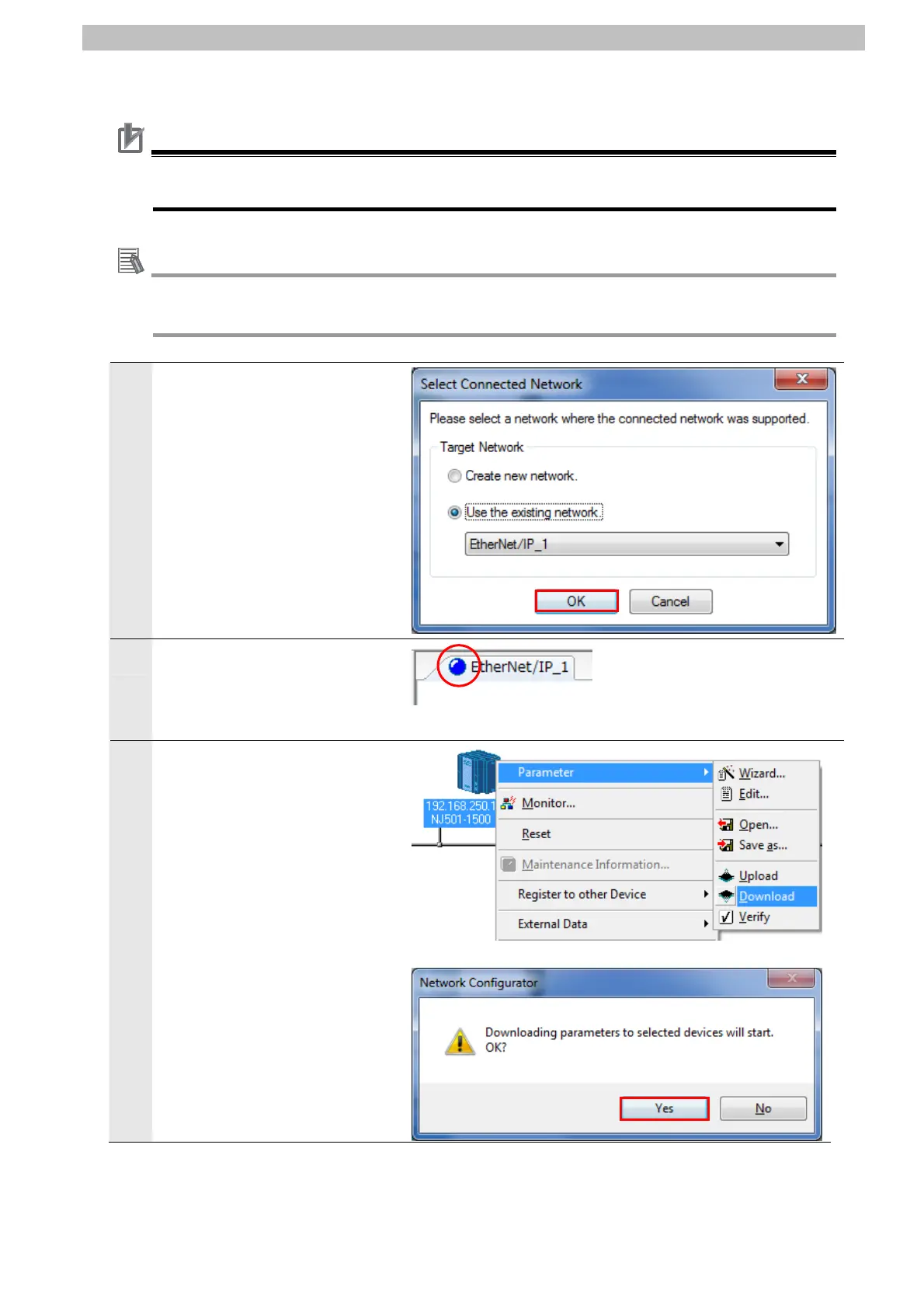

7. Connection Procedure
Precautions
for Correct Use
If an online connection cannot be made to the Controller, check the cable connection. Or,
return to step 4 and check the settings such as a connection type and try again.
Additional Information
For details on the online connections to a Controller, refer to 7-2-8 Connecting the Network
Configurator to the Network in Section 7 Tag Data Link Functions of the NJ-series CPU Unit
Built-in EtherNet/IP Port User's Manual (Cat. No. W506).
4
The Select Connected Network
Dialog Box is displayed. Click
the OK Button.
5
When an online connection is
established normally, the color
of the icon on the figure changes
to blue.
6
Right-click node 1 device on the
Network Configuration Pane and
select Parameter - Download.
The dialog box on the right is
displayed. Click the Yes Button.
35

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
