7. Connection Procedure
3

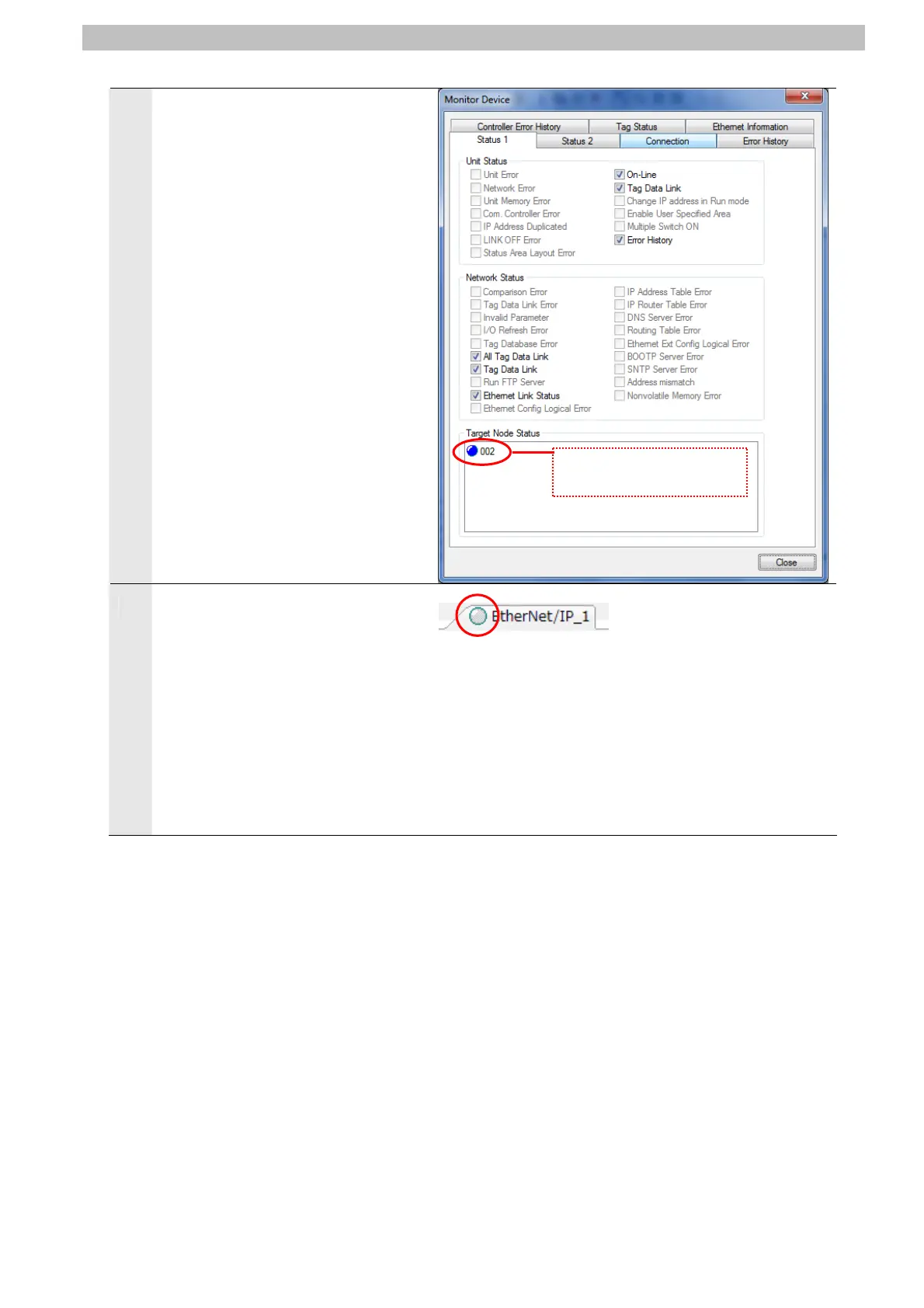

The dialog on the right displays the
Status 1 Tab Page of the Device
Monitor Dialog Box.
When the items in the right dialog
are selected, the data links are
normally in operation.
Click the Close Button.
4
Select Disconnect from the
Network Menu to go offline. The
color of the icon on the figure
changes from blue.
Select Exit from the File Menu to
exit the Network Configurator.
Number: Node number
Blue: Connection normal
