Omron NJ Series Network Connection Guide

7. Connection Procedure

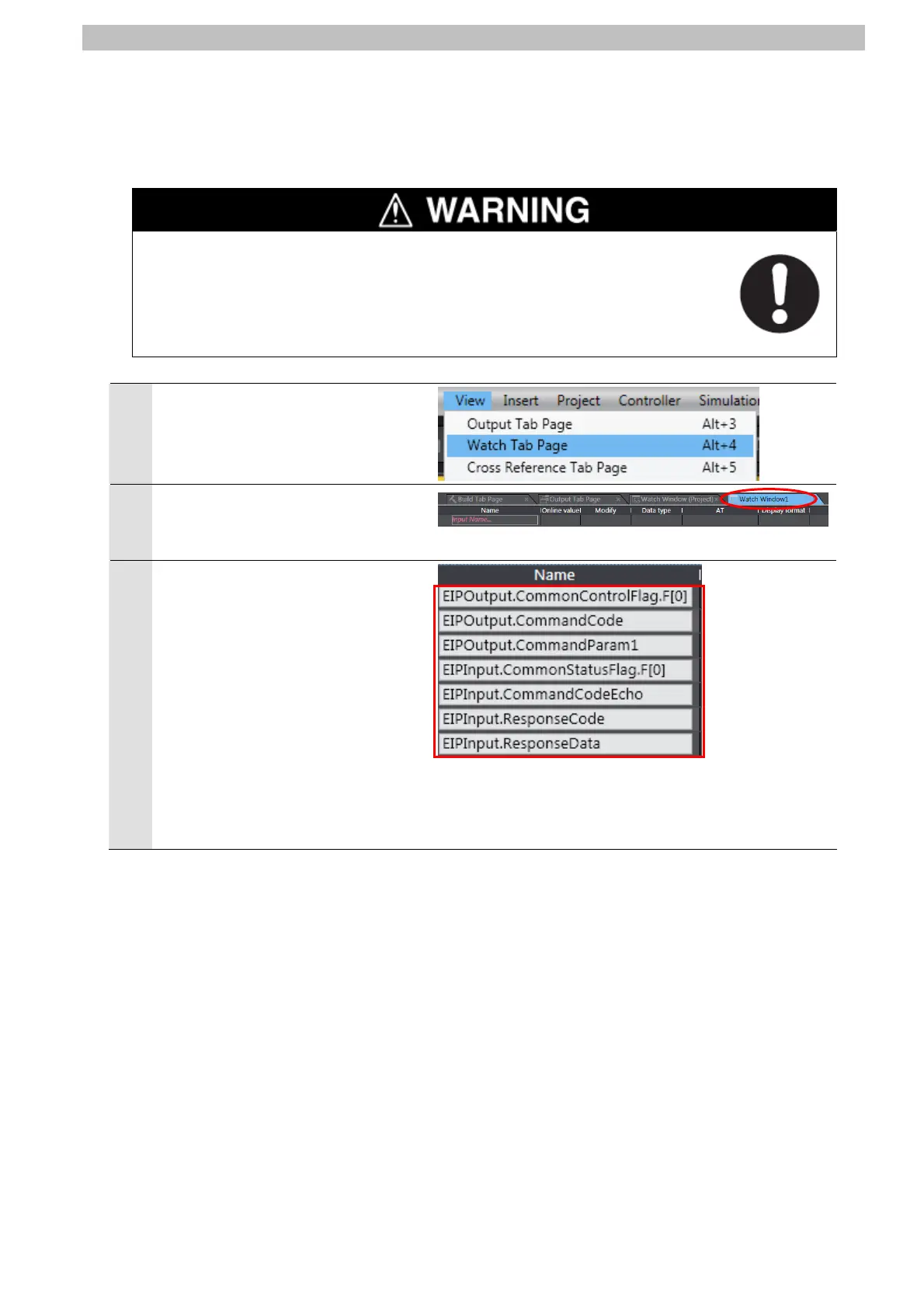

7.6.2. Checking Data That Are Sent and Received
Confirm that the correct data are sent and received.
Always confirm safety at the destination node before you transfer a user
program, configuration data, setup data, device variables, or values in memory
used for CJ-series Units from the Sysmac Studio.
The devices or machines may perform unexpected operation regardless of the
operating mode of the CPU Unit.
1
Select Watch Tab Page from the
View Menu.
2
The Watch Tab Page 1 is displayed
in the lower section of the Edit
Pane.
3
The following names are entered in
the Watch Tab Page 1 for
monitoring.
EIPOutput.CommonControlFlag
.F[0](EXE)
EIPOutput.CommandCode
EIPOutput.CommandParam1
EIPInput.CommonStatusFlag
.F[0](FLG)
EIPInput.CommandCodeEcho
EIPInput.ResponseCode
EIPInput.ResponseData
39

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
