10. Appendix 2 Setting the Tag Data Links Using the Software
Additional Information
If an online connection cannot be made to the Controller, check the cable connection. Or,
return to step 1 and check the settings such as a connection type and try again.
For details on the online connections to a Controller, refer to 7-2-8 Connecting the Network
Configurator to the Network in Section 7 Tag Data Link Functions of the NJ-series CPU Unit
Built-in EtherNet/IP Port User's Manual (Cat. No. W506).
7

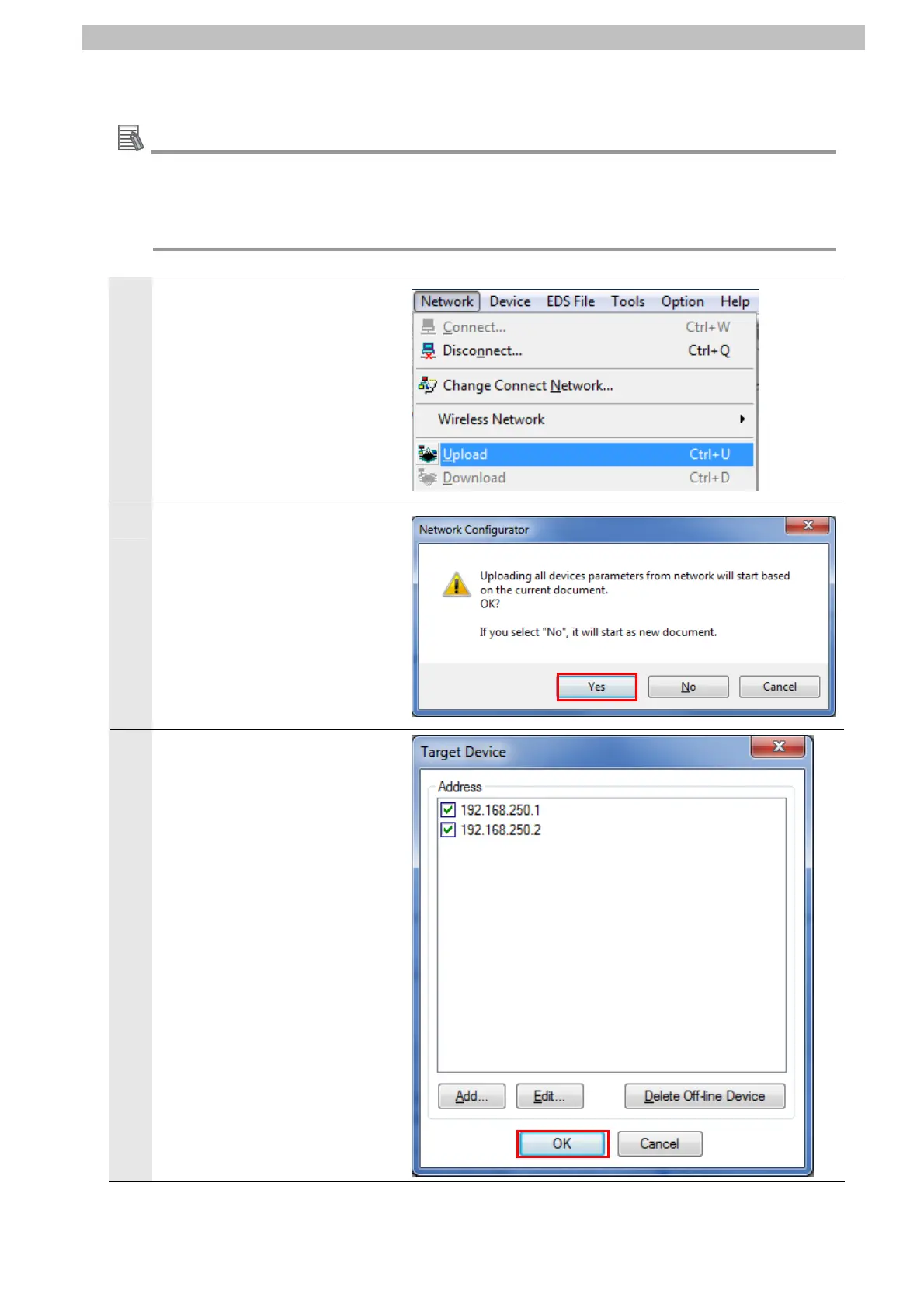

Select Upload from the Network
Menu to upload the device
information on the network.
8
The dialog on the right is
displayed. Click the Yes Button.
9
The Target Device Dialog Box is
eck
, and click the OK
utton.
*
he
ess.
f the
figurator.
displayed.
Select the 192.168.250.1 Ch
Box and the 192.168.250.2
Check Box
B
If the 192.168.250.1 Check Box
and the 192.168.250.2 Check
Box are not displayed on t
dialog box, click the Add
Button to add an addr
*The addresses displayed
depend on the status o
Network Con
