Omron NJ Series Network Connection Guide

10. Appendix 2 Setting the Tag Data Links Using the Software
10

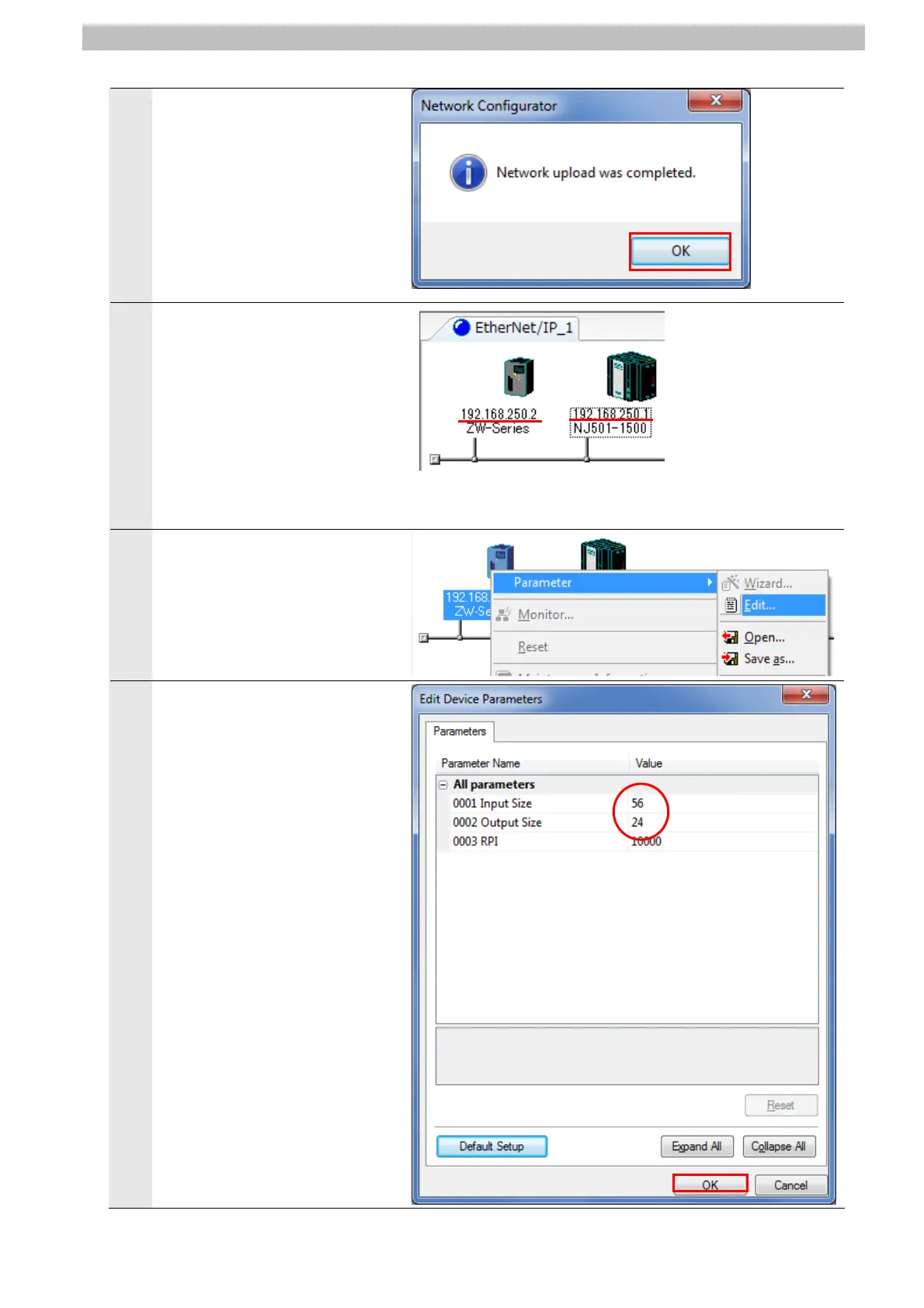

The device parameters are
uploaded. When uploading is
completed, the dialog box on the
right is displayed.
Click the OK Button.
11
After uploading is completed,
confirm that the Network
Configuration Pane shows the
updated IP Addresses of
devices.
IP address of node 1:
192.168.250.1
IP address of node 2
192.168.250.2
12
Right-click the node 2 device
and select Parameter - Edit.
13
The Edit Device Parameters
Dialog Box is displayed.
Confirm that the values are set
as follows and click the OK
Button.
Input Size :56
Output Size :24
73

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
