Omron NP3 Series

2-2 Example System
2
2
Designing Systems
28 NP Introduction Manual

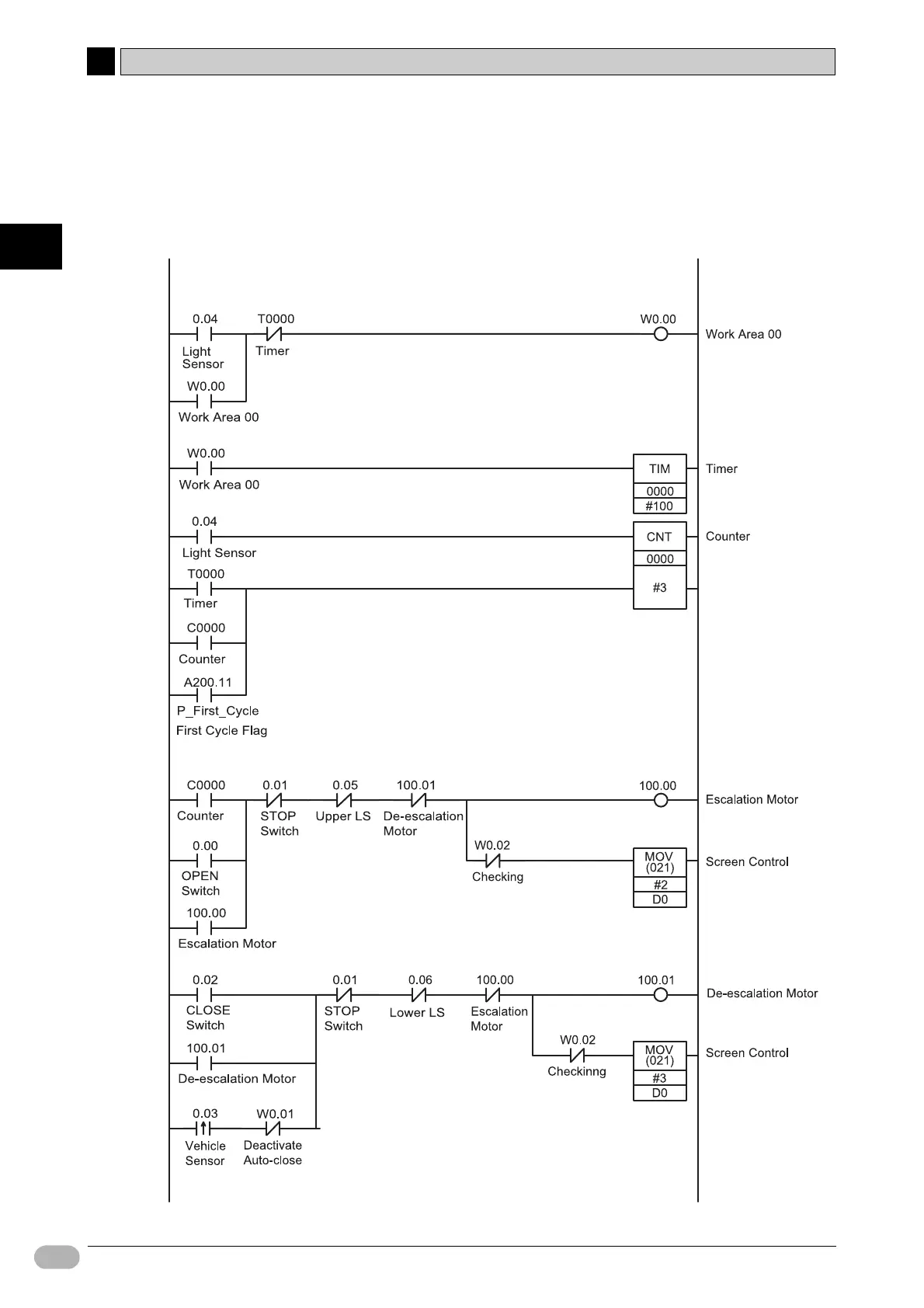

■ Ladder Program
An example ladder program for the PLC shows below.
For details on creating ladder programs, refer to SYSMAC CP Series CP1L
INTRODUCTION Manual (W461) and SYSMAC CX-Programmer Operation
Manual (W446).
