3-8 Installing the Controller Link Interface Unit
Small flat-blade
screwdriver with a
uniform width
Reference The following screwdriver is available from OMRON.
Model XW4Z-00C
0.6 mm
Side
Front
3.5 mm

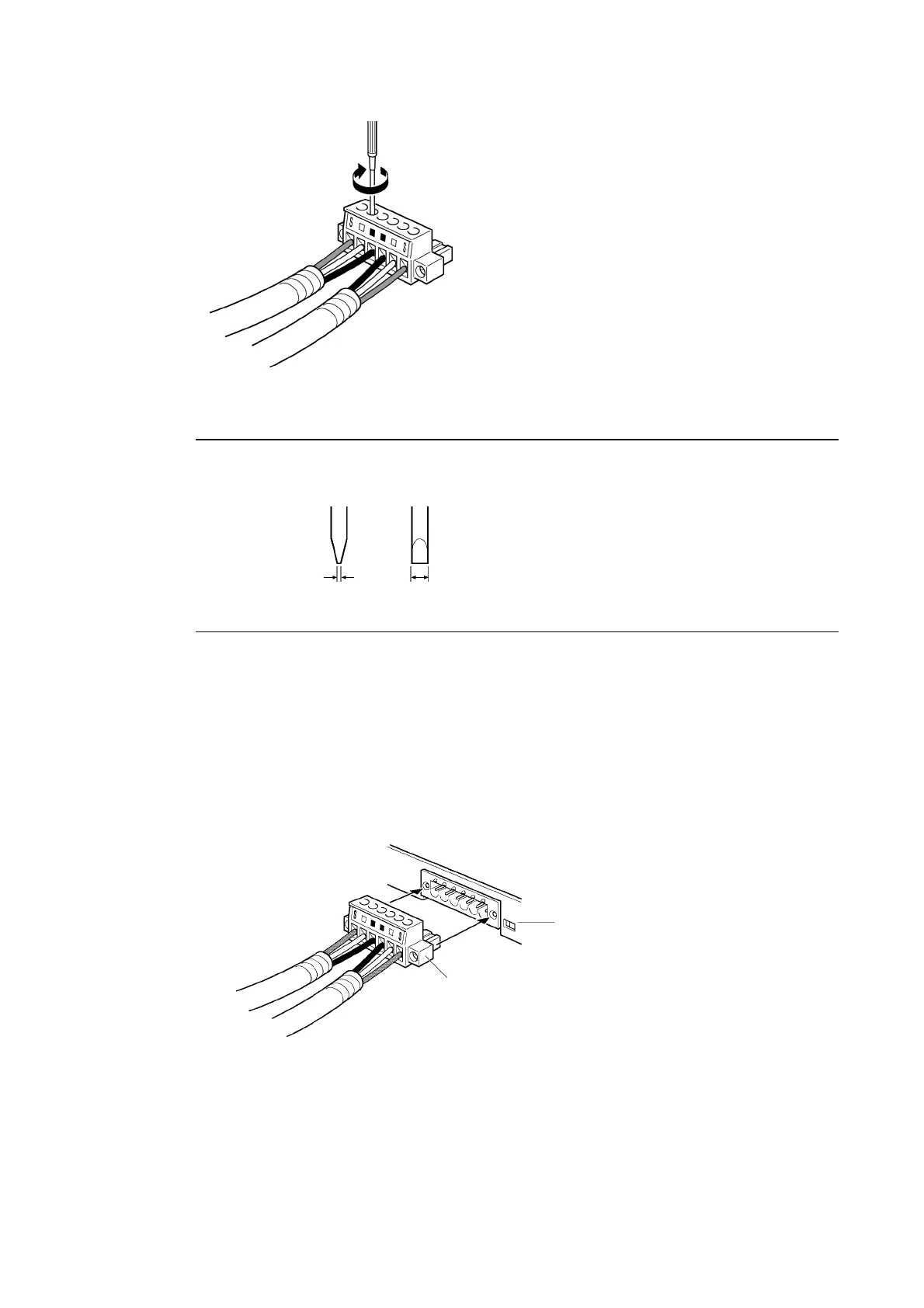

● Connecting the Connector to the Board
Connect the connector on the communications cable to the connector on the Board using the
following procedure.
1. Insert the connector on the communications cable into the connector on the Board as
shown below.
Controller Link
Support Board
Cable connector
2. Secure the connector to the Board by tightening the screws on the connector. The appli-
cable tightening torque is 0.2 N
⋅m.
