3-7 Installing the Video Input Unit
3-7-4 Connecting to Video Input Connectors
Use the following method to connect cameras to the Video Input Unit mounted to the PT.
Note The tensile load of the cable is 30 N maximum. Do not exceed maximum load

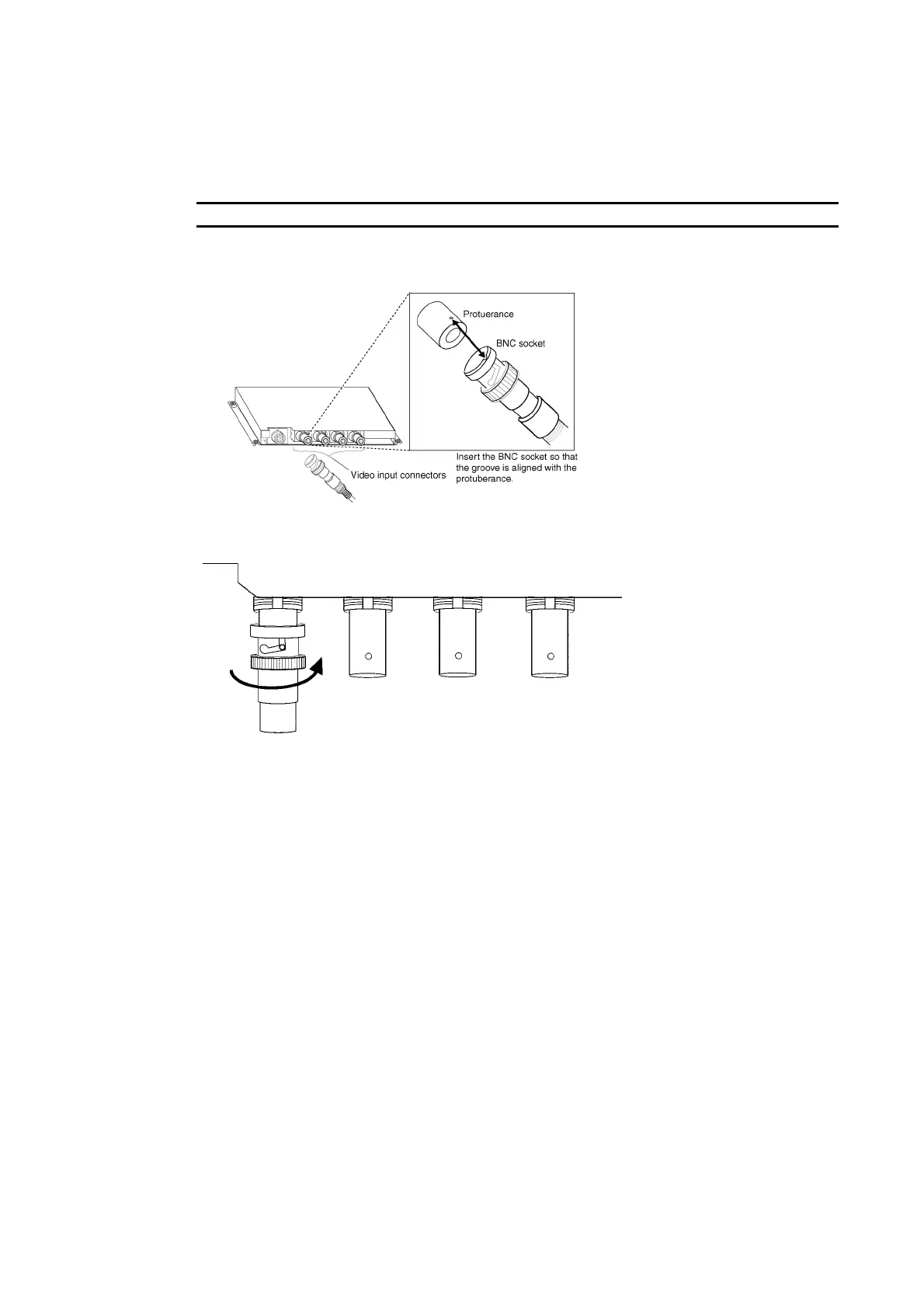

● Connecting to Video Input Connectors
1. Insert the BNC socket on the camera’s video output cable into a video input connector.
2. After inserting the BNC socket, twist it clockwise until it locks into place.
Twist clockwise.
3-34
