Appendix 5 Preparing Connecting Cables

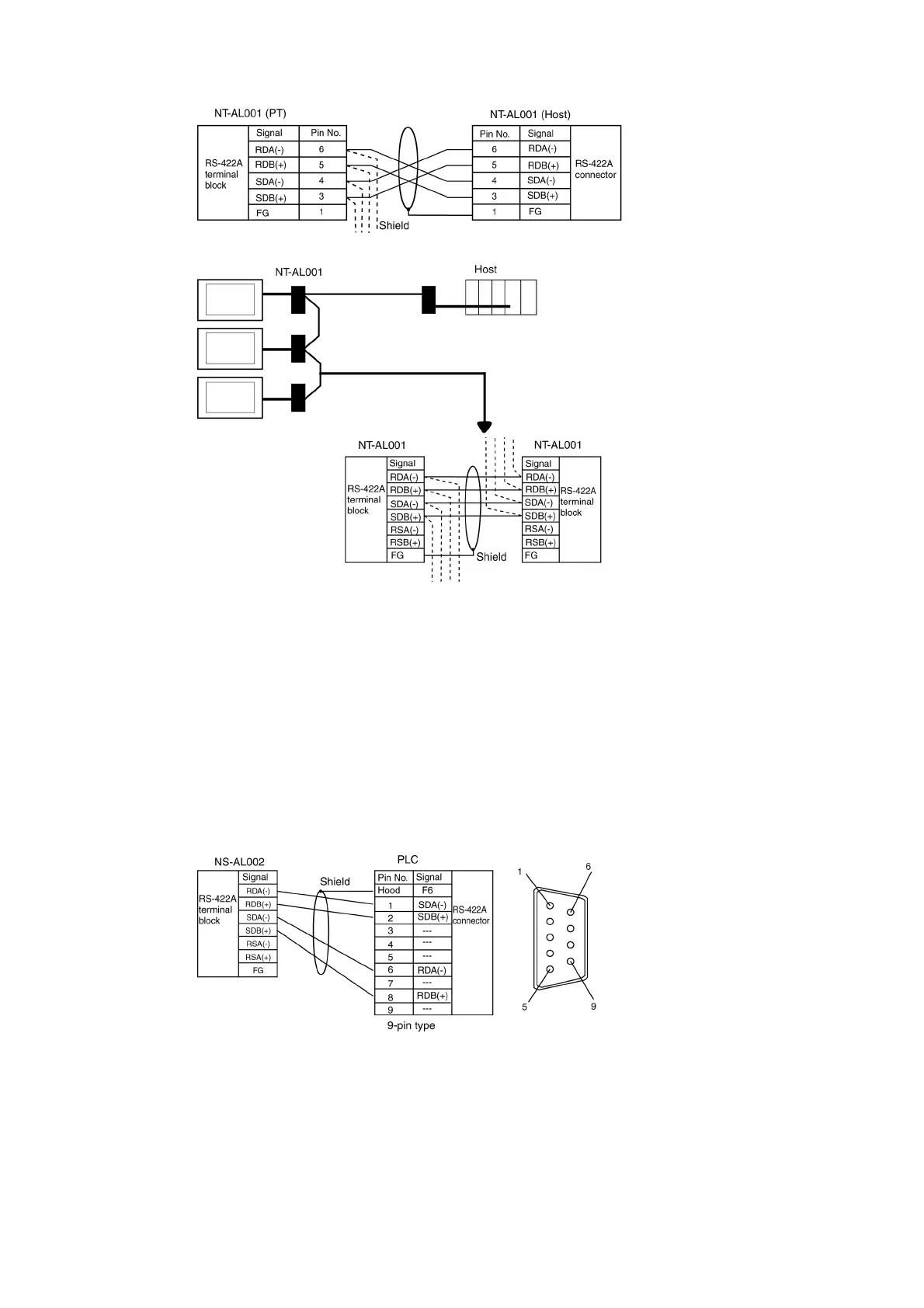

● Wiring Layout between NT-AL001 and NT-AL001 (RS-422A)
● Wiring Layout to CS1G/H Serial Communications Boards, C200HX/HG/HE(-Z)
Communications Boards, CQM1H Serial Communications Boards, and
CVM1/CV Series Host Link Units
Applicable Units:
CS1G-CPU42(-V1), CS1G-CPU43(-V1), CS1G-CPU44(-V1),
CS1G-CPU45(-V1), CS1H-CPU63(-V1), CS1H-CPU64(-V1),
CS1H-CPU65(-V1), CS1H-CPU66(-V1), CS1H-CPU67(-V1),
C200HE-CPU32(-Z), C200HE-CPU42(-Z), C200HG-CPU33(-Z),
C200HG-CPU43(-Z), C200HG-CPU53(-Z), C200HG-CPU63(-Z),
C200HX-CPU34(-Z), C200HX-CPU44(-Z), C200HX-CPU54(-Z),
C200HX-CPU64(-Z), C200HX-CPU65-Z, C200HX-CPU85-Z,
CQM1H-CPU51, CQM1H-CPU61, CV500-LK201(COM port 2)
For details on processing shielded cable, refer to A-3-6 Handling the Shield on RS-
422A/485 Cables.
