3-2SectionConnecting Link Adapters
19
power
to the Link Adapter through pin 6 of the RS-232C connector
, so an
exter
-
nal power supply is not required.
Note 1. The
RS-232C connector is not insulated from the RS-422A/RS-485 connec
-
tor within the NS-AL002 Link Adapter.
2. Always
turn
OFF the NT21’
s power supply before installing/removing a Link
Adapter or connecting/disconnecting cables.
3. Do
not touch the surface of the printed circuit board or any electronic compo
-
nents with bare hands. Also, always discharge any static electricity by
touching
a grounded object before installing the Link adapter or
connecting
cables.
The

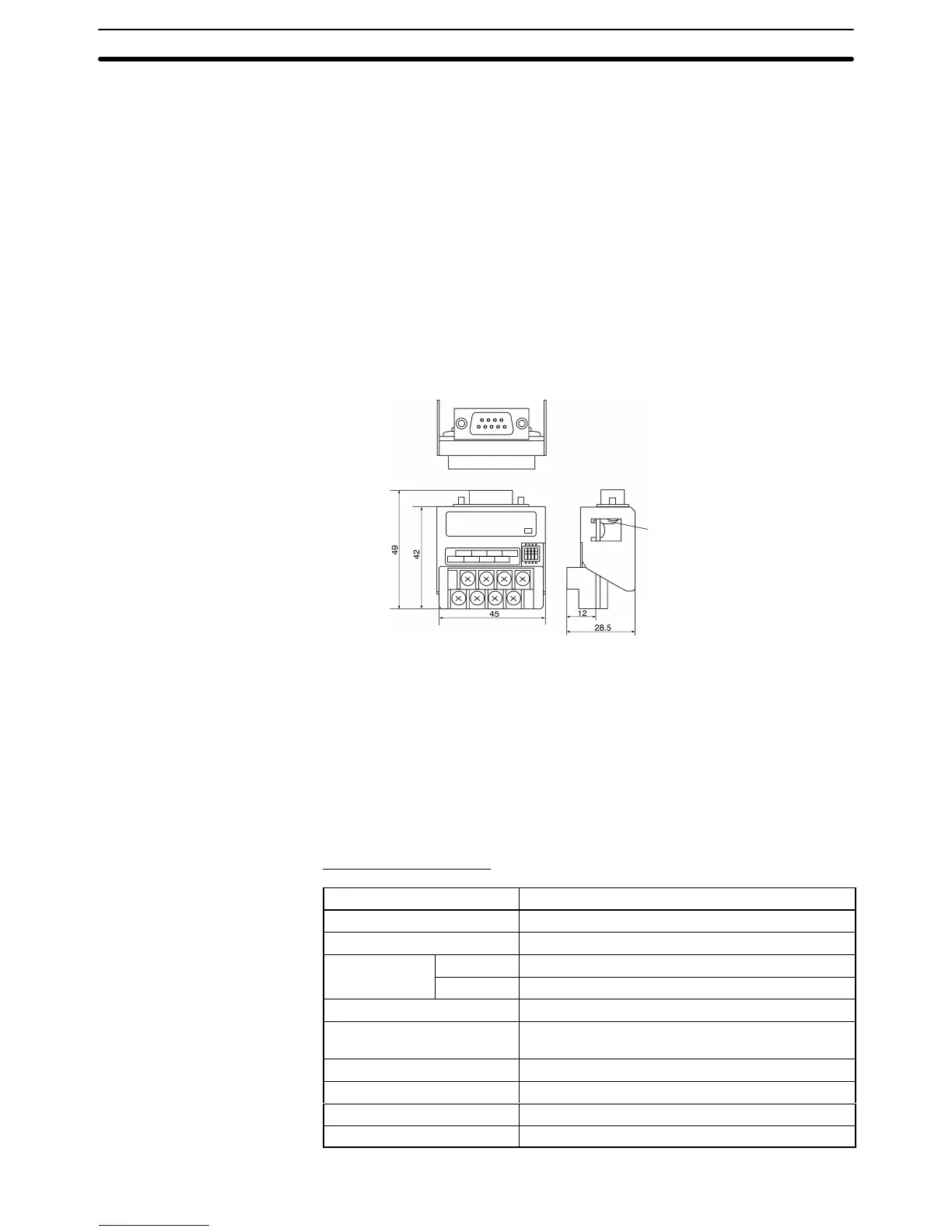

following diagram shows the dimensions of the NS-AL002 Link Adapter
. All
dimensions are in mm.
Mounting screw (x2)
(Units: mm)
The
NS-AL002 Link Adapter connects directly to serial port B on the NT21. After
inserting the D-SUB connectors, tighten the screws on the connectors to secure
them.
T
ighten the D-SUB connector screws to 0.3 N
⋅
m and tighten the
RS-422A/
RS-485 terminal screws to 0.5 N⋅m.
When removing the cables, loosen the screws and pull out the connectors.
The
following tables list the NS-AL002 Link Adapter
’
s general and communica
-
tions specifications.
General Specifications
Item Specification
Dimensions 45
49
28.5 mm (W H D)
Weight 50 g max.
Ambient Operating
0 to 50
_C
temperature
Storage
–20 to 60
_C
Operating ambient humidity 35% to 85% (with no condensation)
Rated power supply voltage +5 V " 10%
(through pin 6 of the RS-232C connector)
Rated power supply current 150 mW max.
Operating environment No corrosive gases
Vibration resistance Meets the NT21’s ratings.
Shock resistance Meets the NT21’s ratings.
