4 Installation and Wiring
4 - 24
NX-series Position Interface Units User’s Manual (W524)

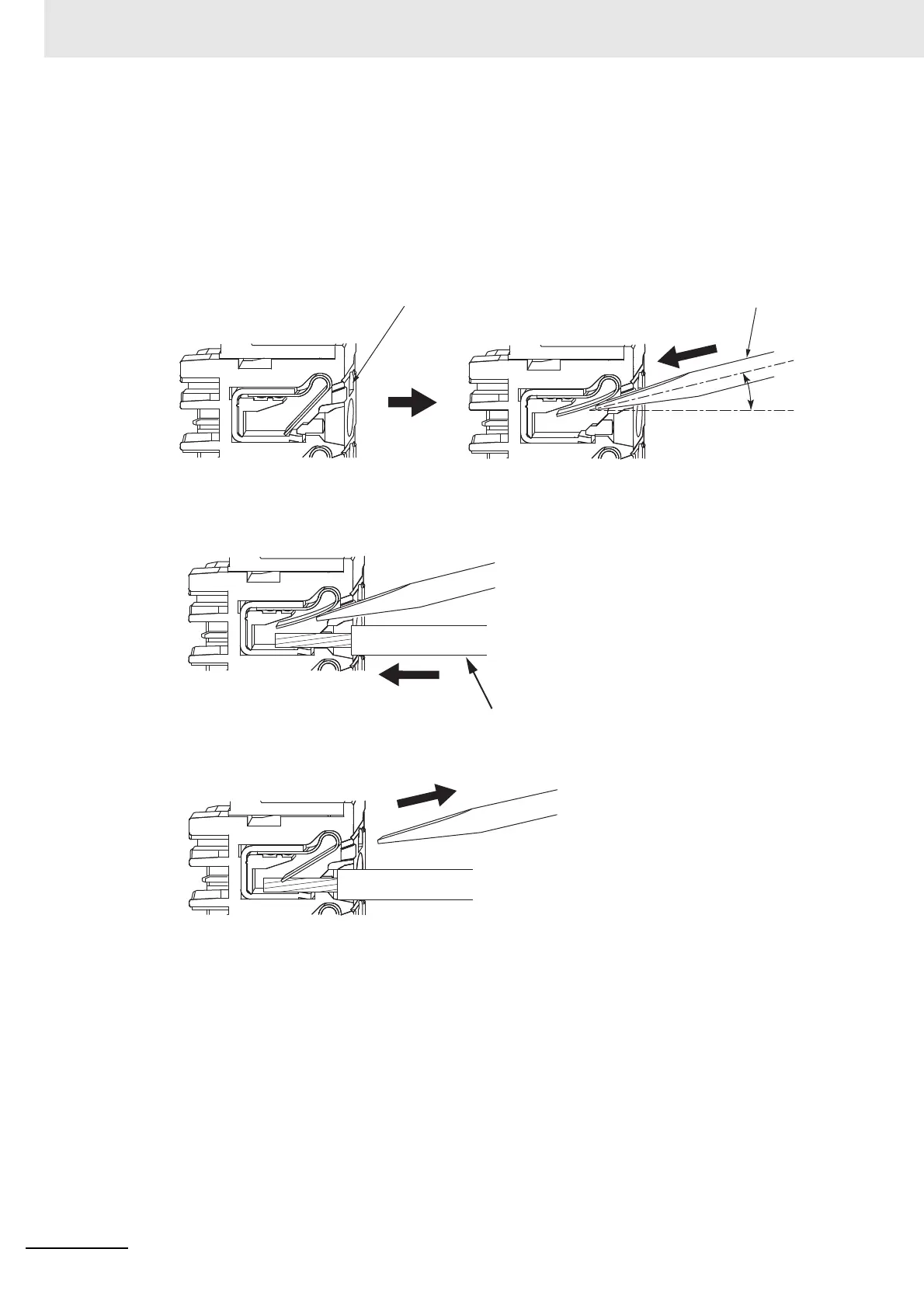

Connecting Twisted and Solid Wires
Use the following procedure to connect twisted and solid wires to the terminal block.
1 Press the flat-blade screwdriver diagonally into the release hole.
The optimal angle for insertion is between 10° to 15°.
If the screwdriver is inserted correctly, you should feel resistance from the spring inside the
release hole.
2 Leave the flat-blade screwdriver pressed into the release hole and insert the twisted wire or the
solid wire into the terminal hole.
Insert the stripped portion of the wire all the way into the terminal hole to prevent shorting.
3 Remove the flat-blade screwdriver from the release hole.
After you make a connection, make sure that the twisted wire or the solid wire is securely con-
nected to the terminal block.
10° to 15°
Release hole
Flat-blade screwdriver
1
Twisted wire or solid wire
2
To Next Page
