4 - 23
4 Installation and Wiring
NX-series Position Interface Units User’s Manual (W524)
4-3 Wiring the Terminals
4

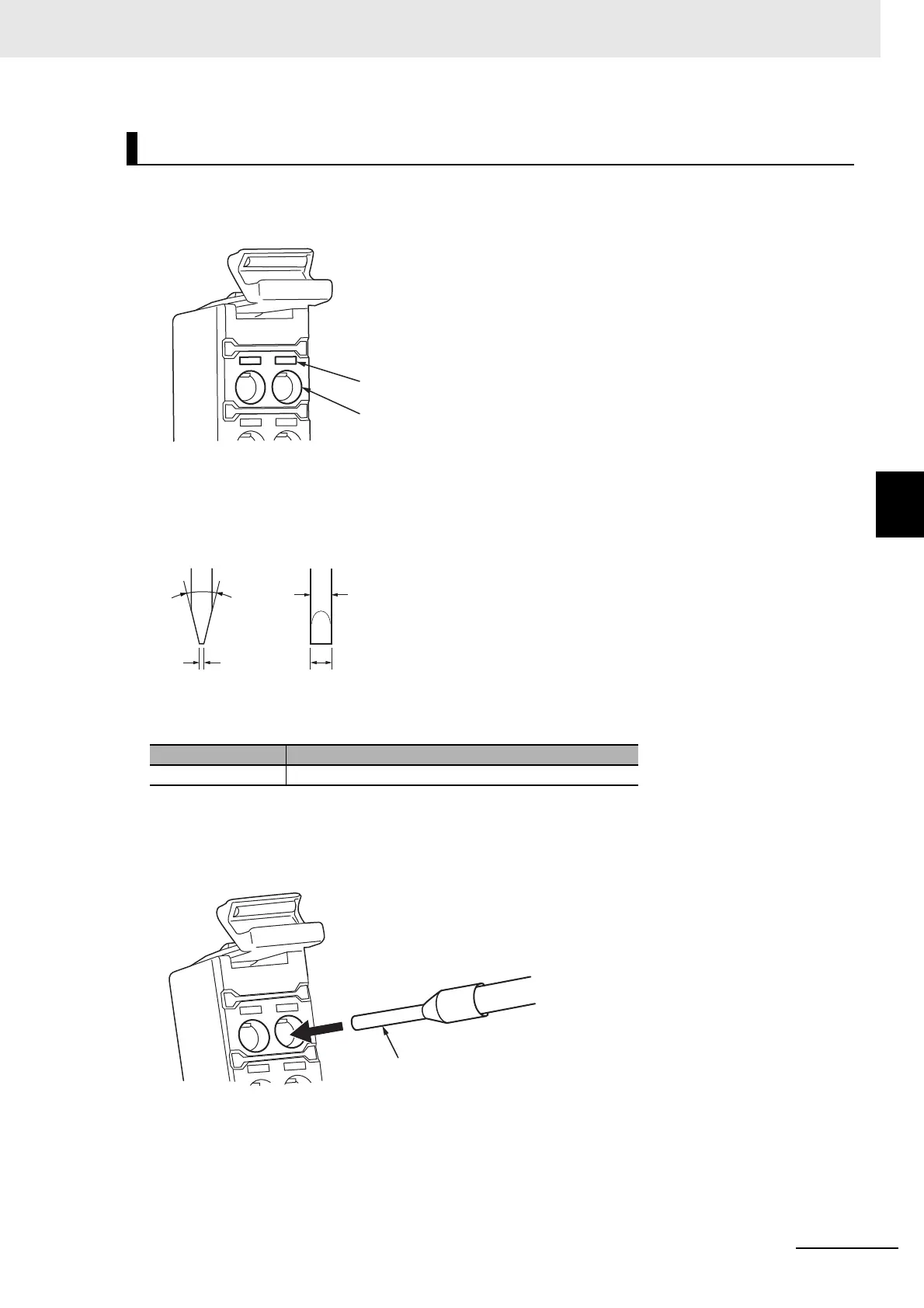

4-3-1 Wiring to the Screwless Clamping Terminal Blocks
This section describes how to connect and remove wires.
 Terminal Block Parts and Names
 Required Tools
A flat-blade screwdriver is used to connect and remove wires.
Use the following type of flat-blade screwdriver.
We recommend the following screwdriver.
 Connecting Ferrules
Insert a ferrule straight into the terminal hole.
You do not need to insert a flat-blade screwdriver into the release hole.
After you make a connection, make sure that the ferrule is securely connected to the terminal block.
Connecting and Removing Wires
Model Manufacturer
SZF 0-0,4×2,5 Phoenix Contact
Release hole
Terminal hole
Side View
Front View
2.5 mm0.4 mm
2.5-mm dia.
8
∼
12°
Ferrule
