4 Installation and Wiring

4 - 16

NX-series Position Interface Units User’s Manual (W524)

 NX-ECS112

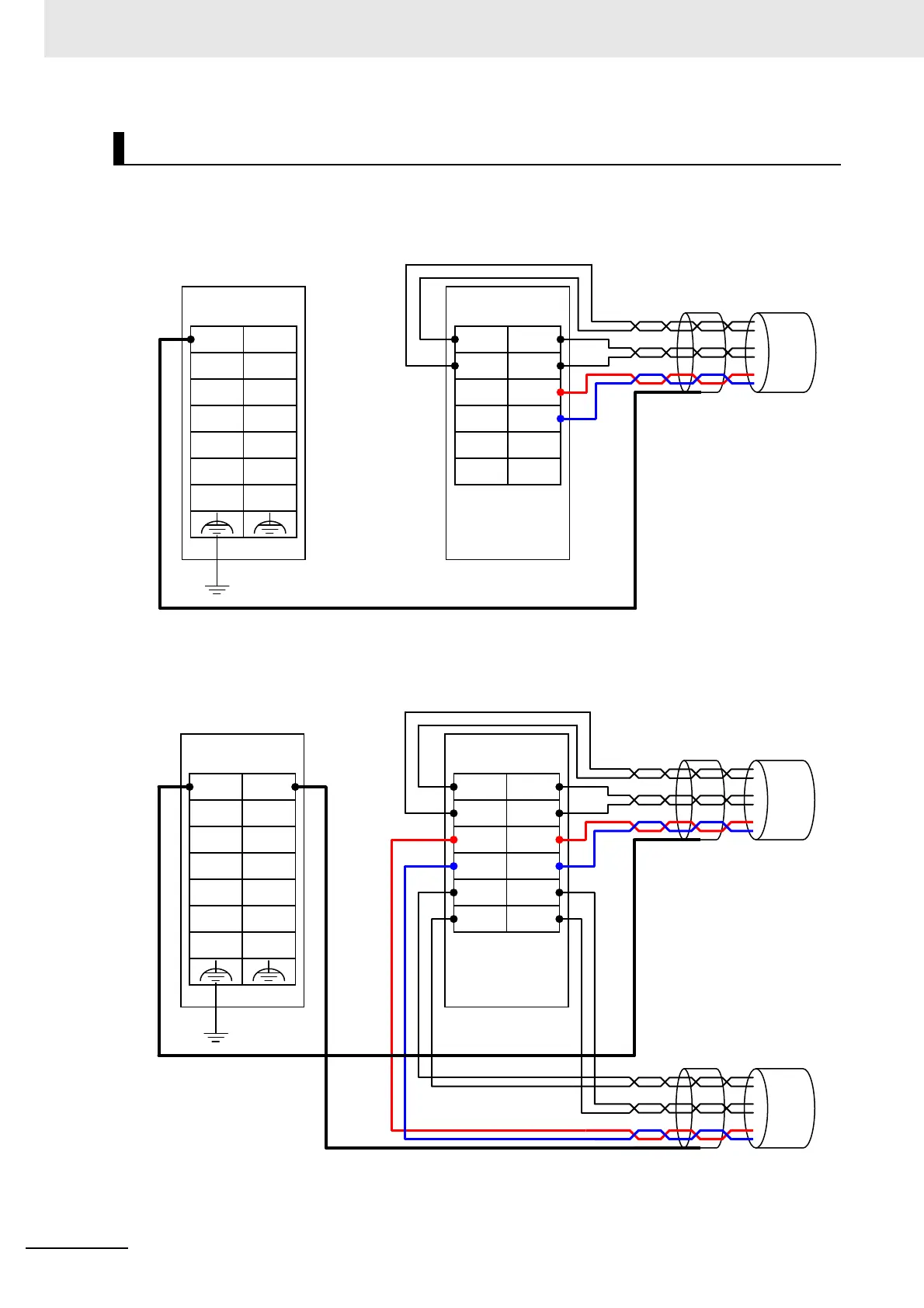

The following wiring example shows an NX-ECS112 SSI Input Unit wired to a rotary encoder with a

shielded cable. The shield is connected to the Shield Connection Unit (NX-TBX01).

 NX-ECS212

The following wiring example shows an NX-ECS212 SSI Input Unit wired to a rotary encoder with a

shielded cable. The shield is connected to the Shield Connection Unit (NX-TBX01).

Wiring Examples for SSI Input Units

Shield

Connection Unit

SSI Input Unit

Shield

Rotary encoder

SHLD SHLD

SHLD

C-

C+ D+

D-

IOV

IOG

IOV

IOG

Ground to

100 Ω or less.

Shield

Connection Unit

SSI Input Unit

Shield Rotary encoder

SHLD SHLD

SHLD

C1-

C1+ D1+

D1-

IOV

IOG

D2+

D2-

IOV

IOG

C2+

C2-

Ground to

100 Ω or less.
