4 - 17

4 Installation and Wiring

NX-series Position Interface Units User’s Manual (W524)

4-2 Connecting the Power Supply and Ground Wires

4-2-5 Wiring with Shielded Cables

 NX-PG0112

The following wiring example shows an NX-PG0112 Pulse Output Unit wired to a drive with a

shielded cable. The shield is connected to the Shield Connection Unit (NX-TBX01).

Note The pulse output from an NX-PG0112 Pulse Output Unit is a 24-VDC NPN output. Refer to 8-6 Terminal

Block Arrangement on page 8-14 for information on wiring drives.

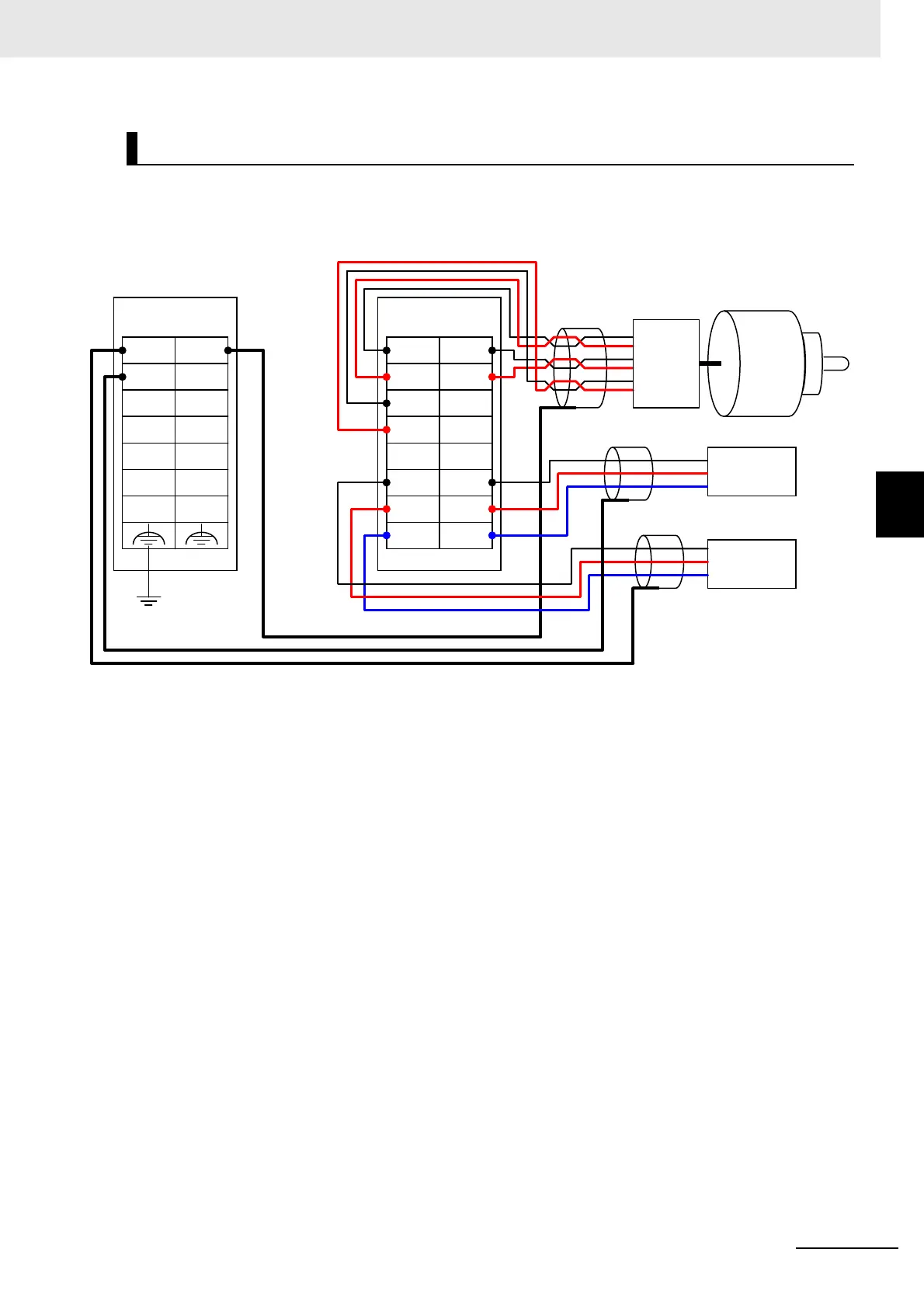

Wiring Example for Pulse Output Units

Shield

Connection Unit

Pulse Output Unit

Shield

Stepper motor

Sensor

Shield

Drive

Ground to

100 Ω or less.

SHLD SHLD

SHLD

IOV

IOG

IOV

IOG
