Omron NX-EC0112 User Manual

4 - 21
4 Installation and Wiring
NX-series Position Interface Units User’s Manual (W524)
4-3 Wiring the Terminals
4
4-3-1 Wiring to the Screwless Clamping Terminal Blocks

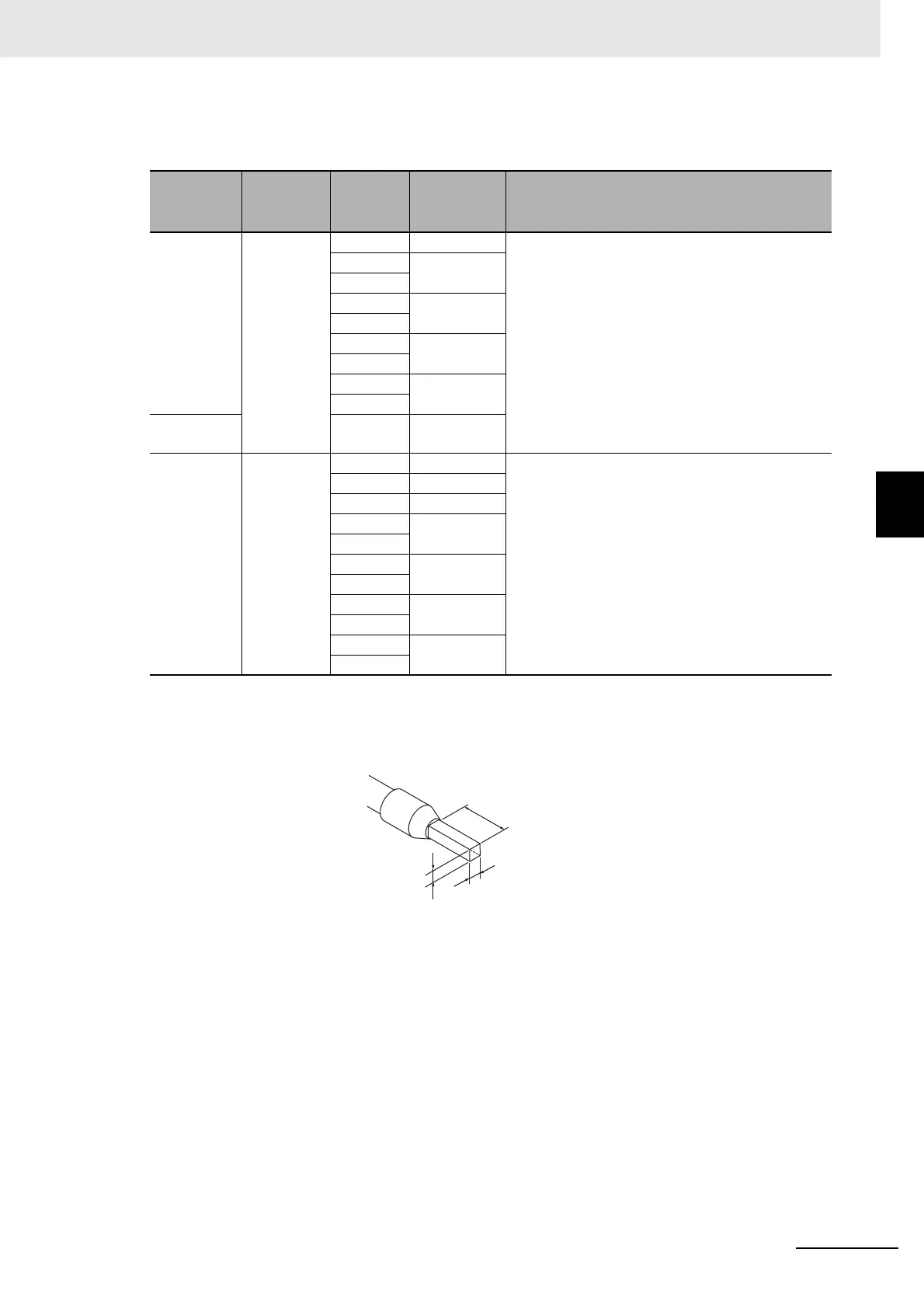

The applicable ferrules, wires, and crimping tool are given in the following table.
If you use any ferrules other than those given in the above table, crimp them to twisted wires so that
the following finished dimensions are achieved.
 Using Twisted or Solid Wires
If you use twisted wires or solid wires, use the following table to determine the correct wire specifica-
tions.
Terminal
type
Manufac-
turer
Ferrule
model
number
Applicable
wire (mm
2
(AWG))
Crimping tool
All terminals
except
ground ter-
minals
Phoenix
Contact
AI0,34-8 0.34 (#22) Phoenix Contact (Applicable wire sizes are given
in parentheses.)
CRIMPFOX 6 (0.25 to 6 mm
2
, AWG 24 to 10)
AI0,5-8 0.5 (#20)
AI0,5-10
AI0,75-8 0.75 (#18)
AI0,75-10
AI1,0-8 1.0 (#18)
AI1,0-10
AI1,5-8 1.5 (#16)
AI1,5-10
Ground ter-
minals
AI2,5-10
2.0
*1
*1. Some AWG 14 wires exceed 2.0 mm
2
and cannot be used in the screwless clamping terminal block.
All terminals
except
ground ter-
minals
Weidmuel-
ler
H0.14/12 0.14 (#26) Weidmueller (Applicable wire sizes are given in
parentheses.)
PZ6 Roto (0.14 to 6 mm
2
, AWG 26 to 10)
H0.25/12 0.25 (#24)
H0.34/12 0.34 (#22)
H0.5/14 0.5 (#20)
H0.5/16
H0.75/14 0.75 (#18)
H0.75/16
H1.0/14 1.0 (#18)
H1.0/16
H1.5/14 1.5 (#16)
H1.5/16
8 to 10 mm
1.6 mm max. (except ground terminals)
2.0 mm max. (ground terminals)
2.4 mm max. (except ground terminals)
2.7 mm max. (ground terminals)
