4 Installation and Wiring

NX-series Digital I/O Unit User’s Manual (W521)

4-4 Wiring Examples

4-4-1 Wiring the Input Units

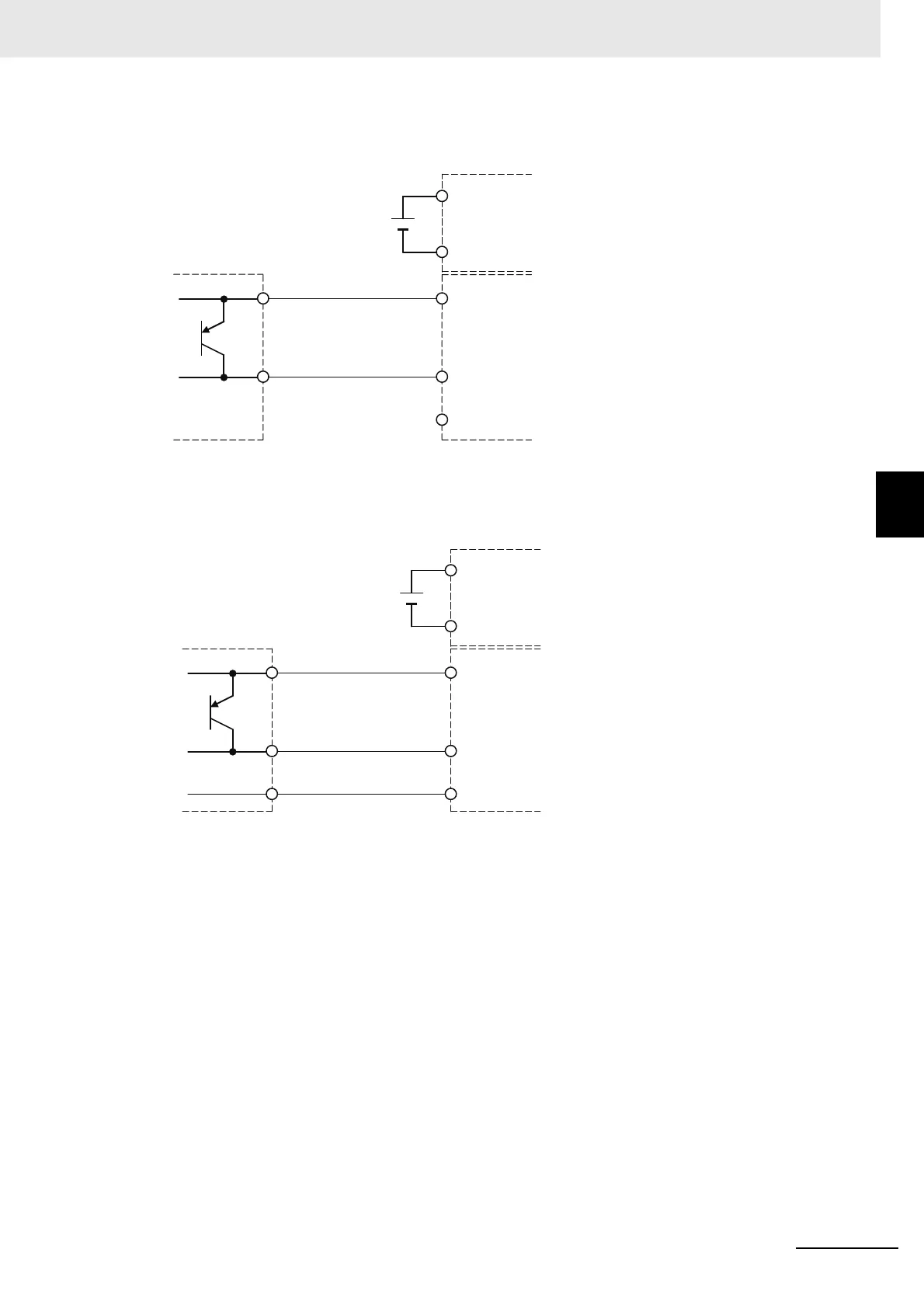

This is the wiring for two-wire sensors.

This is the wiring for three-wire sensors.

IOG

IOV

IOG

IOV

Two-wire sensor

DC Input Unit

Communications Coupler Unit or

Additional I/O Power Supply Unit

IOG

IOV

IOG

IOV

Three-wire sensor

Output

DC Input Unit

Communications Coupler Unit or

Additional I/O Power Supply Unit
