7 Digital Output Units
7 - 16
NX-series Digital I/O Unit User’s Manual (W521)

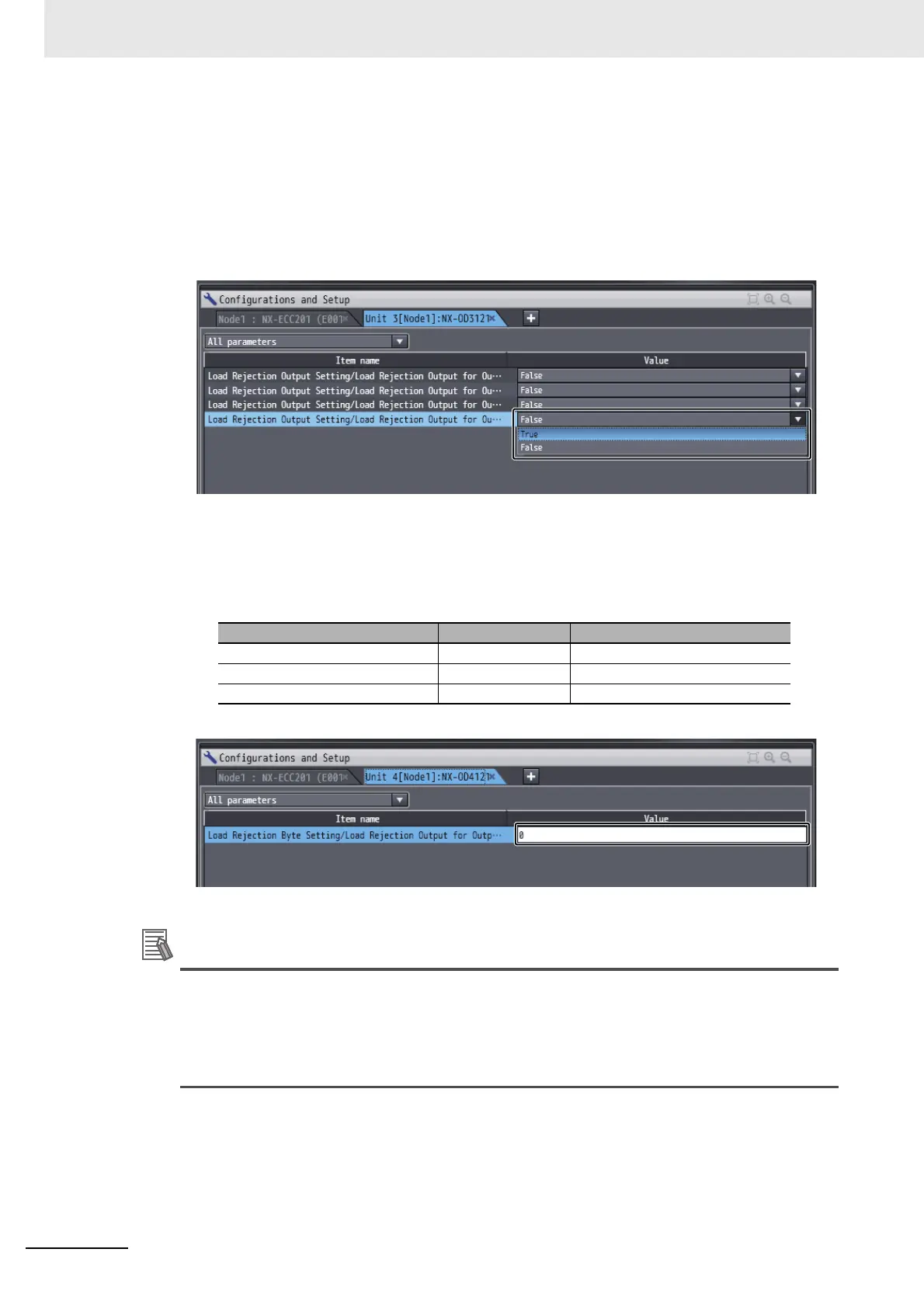

2 Make the following settings according to the type of NX Unit you want to set.
Two-point or Four-point Output Unit (Data type: BOOL)
Select False (OFF) or True (Hold the present value) from the list of Load Rejection Output
Setting for which the output bit you want to set.
Eight-point, Sixteen-point, and Thirty-two-point Output Units
Enter a set value in the Value text box. The data type of the set values and the range of the
values that you can set vary depending on the number of output points.
• If you set a value different from the default value, the Value on the Sysmac Studio is dis-
played in a different color.
• You can click the Return to Default Value Button to return all set values on the Sysmac Stu-
dio to the default values.
• Help for the settings is displayed at the bottom of the Edit Unit Operation Settings Tab Page.
Number of output points Data type Set value
8 points USINT 0 to 255
16 points UINT 0 to 65535
32 points UDINT 0 to 4294967295
To Next Page
