7 Digital Output Units

NX-series Digital I/O Unit User’s Manual (W521)

7-4 Function

7-4-2 Load Rejection Output Setting

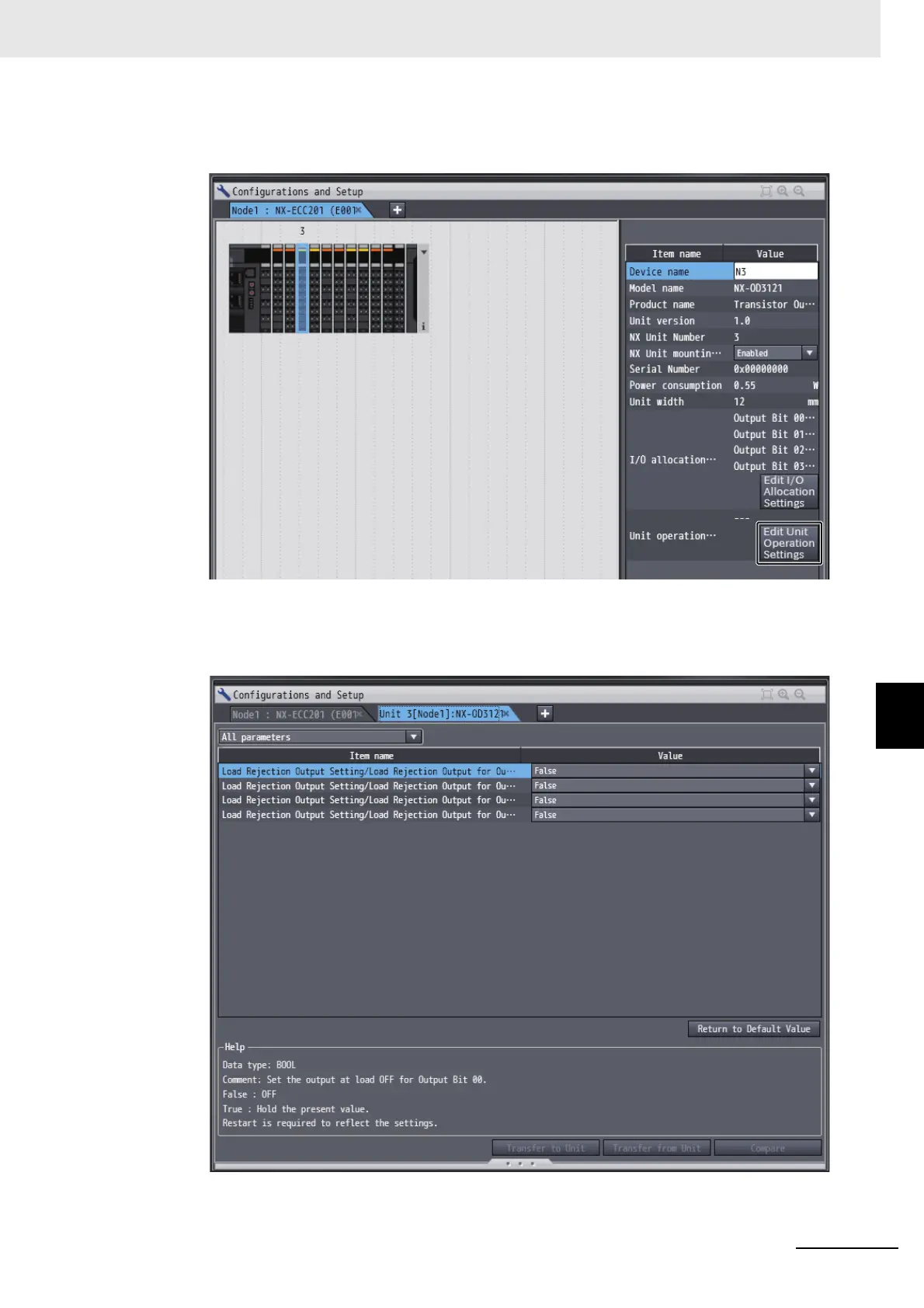

Select the NX Unit, then click the Edit Unit Operation Settings Button.

The Edit Unit Operation Settings Tab Page is displayed.

Introduction3
