4 Installation and Wiring
4 - 18
NX-series Digital I/O Unit User’s Manual (W521)

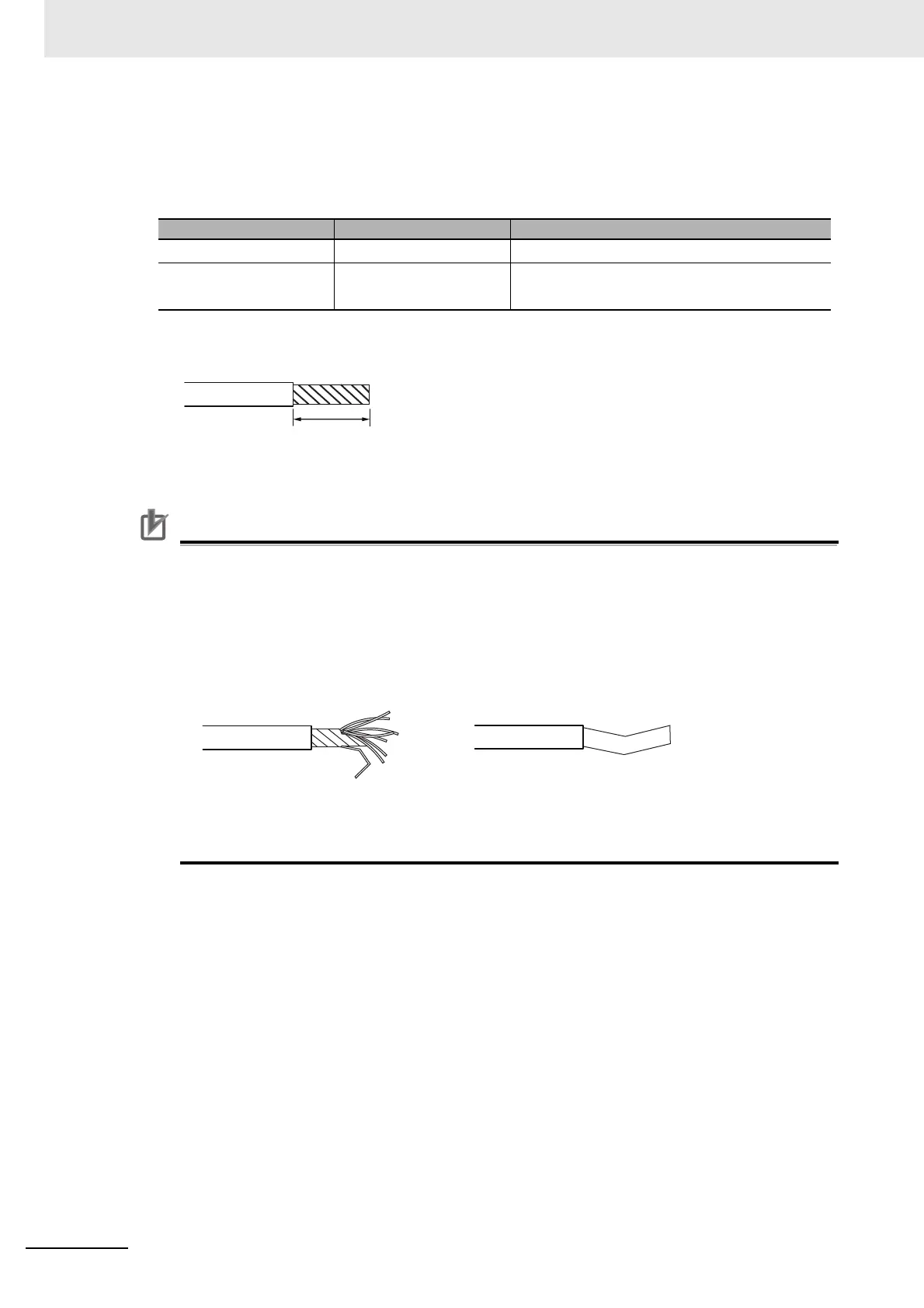

Using Twisted Wires/Solid Wires
If you use the twisted wires or the solid wires, the applicable wire range and conductor length (strip-
ping length) are as follows.
Precautions for Correct Use
• Use cables with suitable wire sizes for the carrying current. There are also restrictions on the
current due to the ambient temperature. Refer to the manuals for the cables and use the
cables correctly for the operating environment.
• For twisted wires, strip the sheath and twist the conductor portion. Do not unravel or bend the
conductor portion of twisted wires or solid wires.
Terminal types Applicable wire range Conductor length (stripping length)
Ground terminals
*1
*1. When you use the NX-TB1 Terminal Block, use twisted wires to connect the ground terminal. Do
not use solid wires.
2.0 mm
2
9 to 10 mm
Terminals other than
ground terminals
0.08 to 1.5 mm
2
AWG28 to 16
8 to 10 mm
Conductor length (stripping length)
Unravel wires Bend wires
NG
NG
