28
10 Programming Using IO-Link

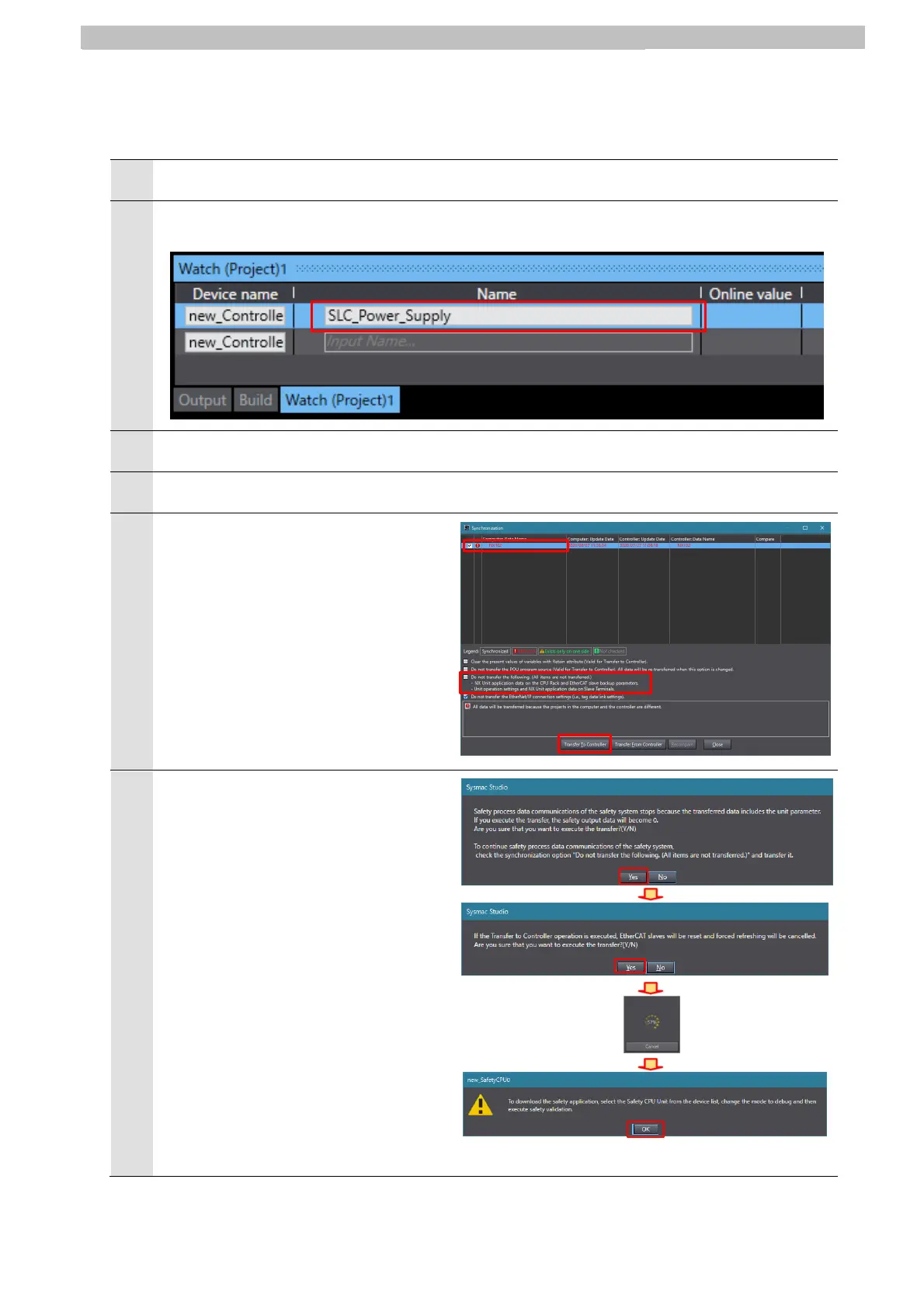

10.1.3 Monitoring Process Data Values
This section describes how to check process data after it has been output by the program created
in 10.1.2 Programming. Monitoring is performed by setting in the Watch Tab Page.
1
Select
View
-
Watch Tab Page
.
2
Enter the following variable that was created in
10.1.2 Programming
to
Name
.
Variable name: SLC_Power_Supply
s
3
Select
Controller
-
Online
.
4
Select
Controller
-
Synchronize...
.
The
Synchronization
dialog box is displayed.
5
Make sure that the check box of the data
to transfer (in the figure on the right,
NX102
) is selected.
Clear the
Do not transfer the following.
(All items are not transferred.)
check
box, and click
Transfer to Controller
.
Note: When
Transfer to Controller
is
executed, Sysmac Studio data is
transferred to the controller and
data is synchronized.
6
The dialog box on the right is displayed.
Confirm that there are no problems, and
click
Yes
.
The dialog box on the right is displayed.
Confirm that there are no problems, and
click
Yes
.
The synchronization in progress window
is displayed.
The dialog box on the right is displayed.
Confirm that there are no problems, and
click
OK
.
Note: Do not return the mode to
Run
Mode...
.
