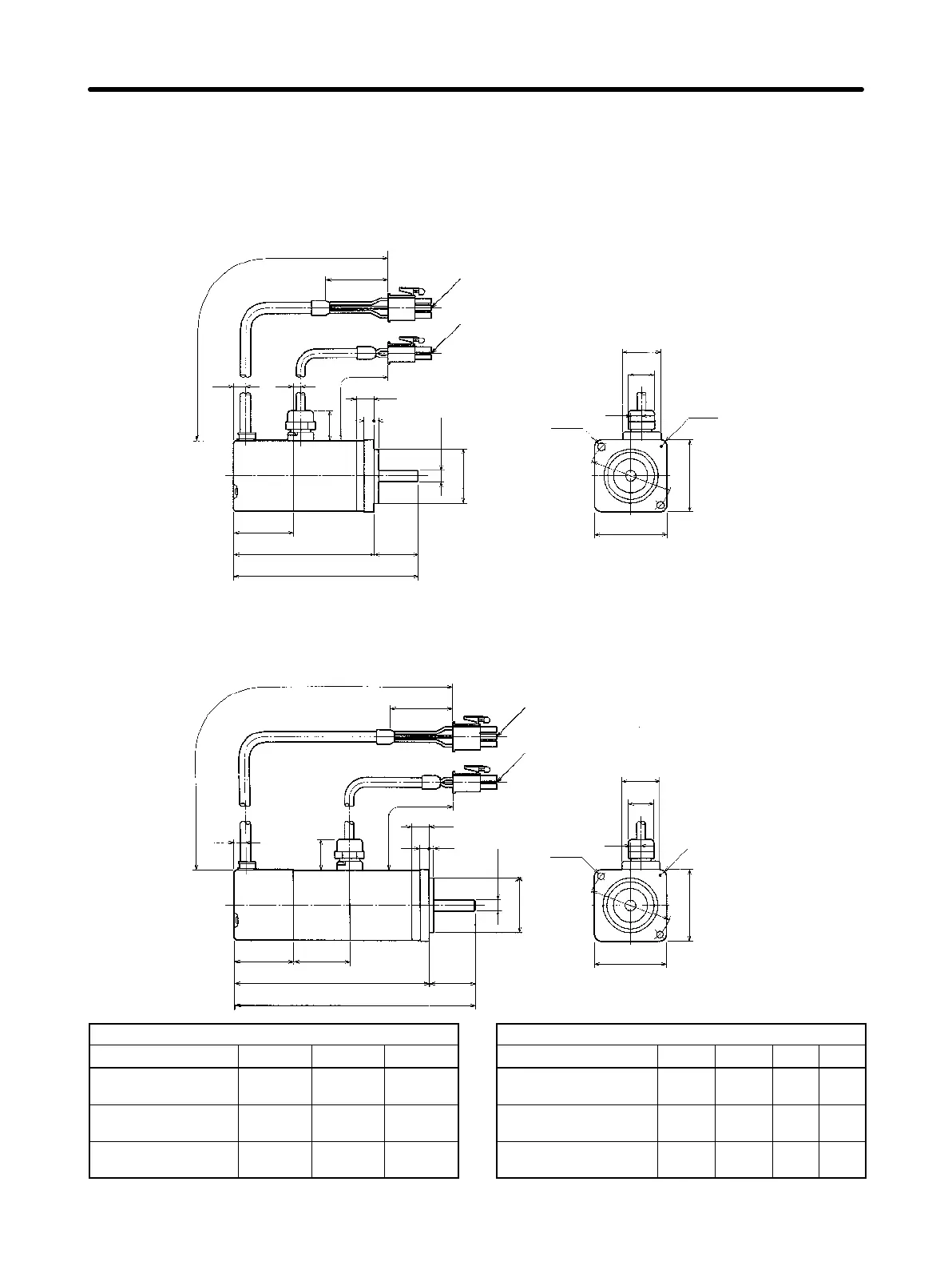

H AC Servomotors Conforming to UL/cUL Standards and AC
Servomotors Not Conforming to Any Standards
D 30-W/50-W/100-W Standard Models:
R88M-U03030HA, R88M-U05030HA, R88M-U10030HA
R88M-U03030LA, R88M-U05030LA, R88M-U10030LA
Two, 4.3 dia.
Four, R3.7
6h6 dia.
30h7 dia.
46 dia.
Encoder adapter
Motor plug
14 dia.
300±30
35
6.5 4
300±30
9.5
2.5
5
17
33
LL 25
L
6
18
40
40
D 30-W/50-W/100-W Models with Brake:
R88M-U03030HA-B, R88M-U05030HA-B, R88M-U10030HA-B
R88M-U03030LA-B, R88M-U05030LA-B, R88M-U10030LA-B
Two, 4.3 dia.
Four, R3.7
6h6 dia.
30h7 dia.
46 dia.
Encoder adapter
Motor plug
14 dia.
300±30
17
35
6.5
300±30
9.5
2.55
25LL
L
33 LB
4
21
40
40
Standard Models
Model L LL S
R88M-U03030HA
R88M-U03030LA
94.5 69.5 6
R88M-U05030HA
R88M-U05030LA
102.0 77.0 6
R88M-U10030HA
R88M-U10030LA
119.5 94.5 8
Models with Brake
Model L LL LB S
R88M-U03030HA-B
R88M-U03030LA-B
126 101 31.5 6
R88M-U05030HA-B
R88M-U05030LA-B
133.5 108.5 31.5 6
R88M-U10030HA-B
R88M-U10030LA-B
160 135 40.5 8
System Design and Installation
Chapter 2
