Omron OMNUC U R88M-U Series User Manual

18
H AC Servomotors Conforming to UL/cUL Standards and AC
Servomotors Not Conforming to Any Standards (Contd.)

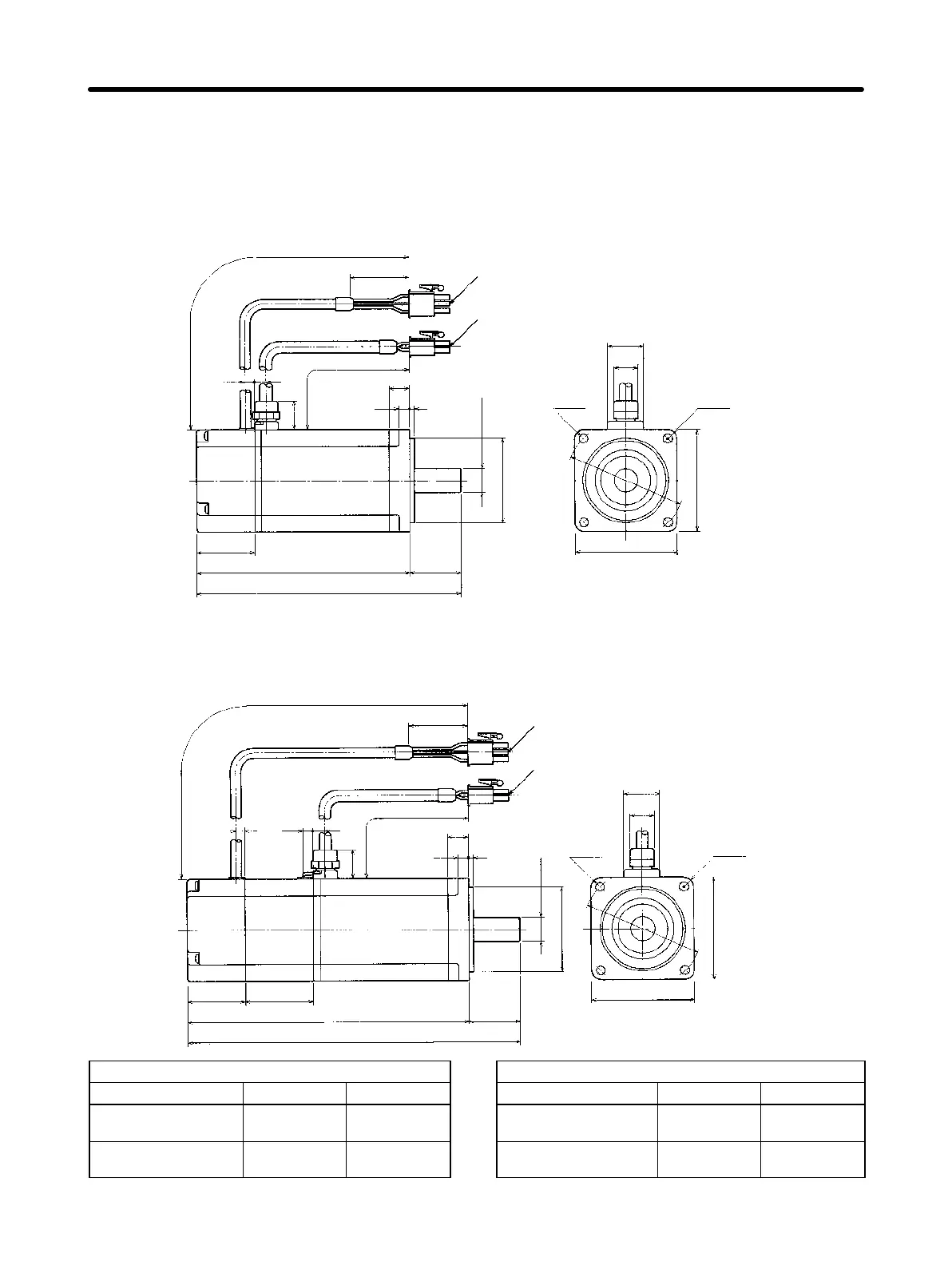

D 200-W/300-W/400-W Standard Models:
R88M-U20030HA, R88M-U40030HA
R88M-U20030LA, R88M-U30030LA
Four, 5.5 dia.
Four, R5.3
14h6 dia.
50h7 dia.
70 dia.
Encoder adapter
Motor plug
14 dia.
300±30
17
35
300±30
5.2 7
12
63
34
LL 30
L
21
60
60
D 200-W/300-W/400-W Models with Brake:
R88M-U20030HA-B, R88M-U40030HA-B
R88M-U20030LA-B, R88M-U30030LA-B
Four,
5.5 dia.
Four, R5.3
14h6 dia.
50h7 dia.
Encoder adapter
Motor plug
70 dia.
14 dia.
300±30
17
35
5.2 5.5 7
300±30
12
63
34 39.5
LL 30
L
21
60
60
Standard Models
Model L LL
R88M-U20030HA
R88M-U20030LA
126.5 96.5
R88M-U40030HA
R88M-U30030LA
154.5 124.5
Models with Brake
Model L LL
R88M-U20030HA-B
R88M-U20030LA-B
166 136
R88M-U40030HA-B
R88M-U30030LA-B
194 164
System Design and Installation
Chapter 2
