H AC Servomotors Conforming to UL/cUL Standards and AC
Servomotors Not Conforming to Any Standards (Contd.)

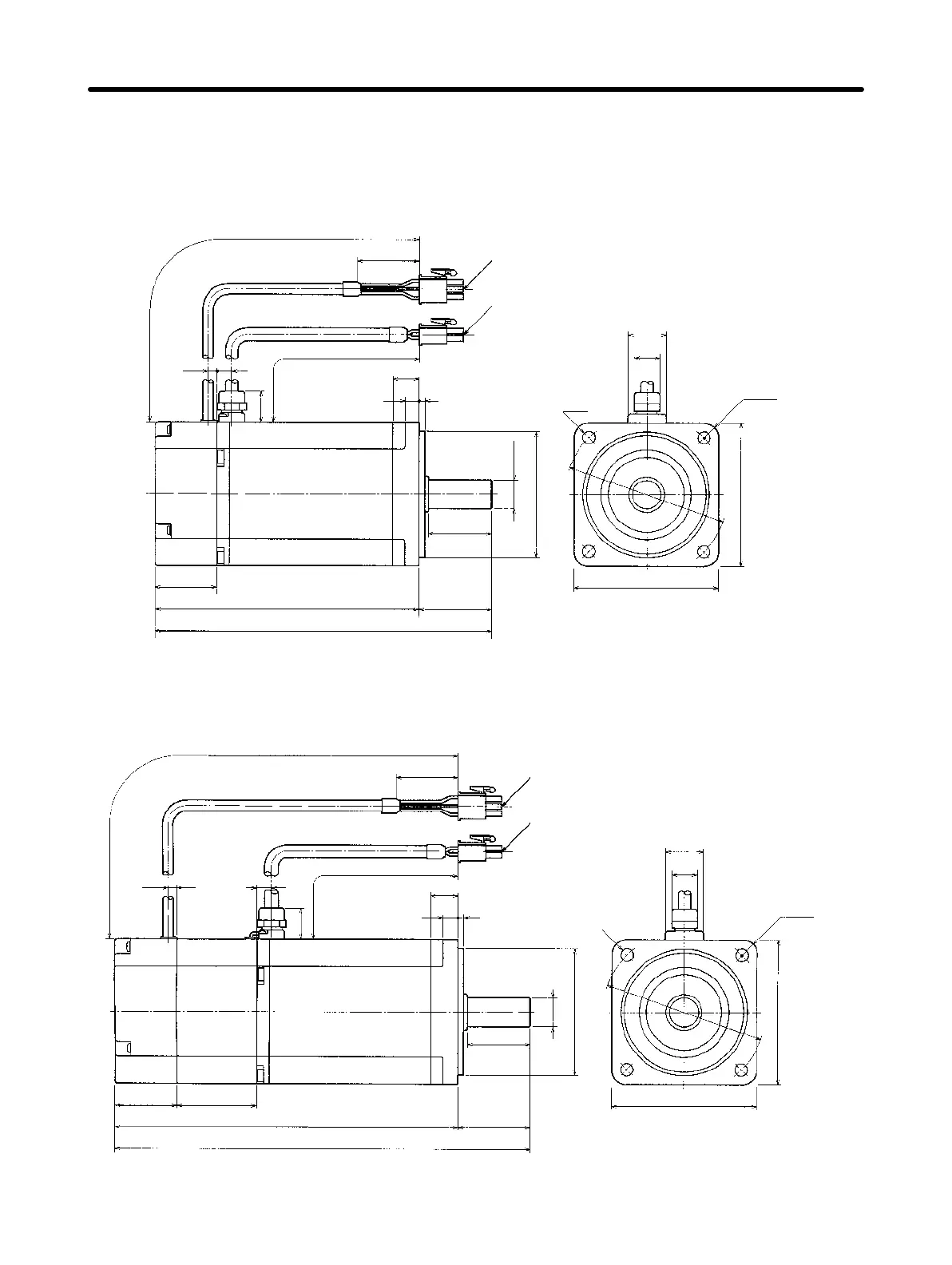

D 750-W Standard Models: R88M-U75030HA
Four, 7 dia.
Four, R8.2
16h6 dia.
70h7 dia.
Encoder adapter
Motor plug
90 dia.
14 dia.
300±30
17
35
300±30
85.2
83
15
35
34
145 40
185
21
80
80
D 750-W Models with Brake: R88M-U75030HA-B
Four, 7 dia.
Four, R8.2
16h6 dia.
70h7 dia.
Encoder adapter
Motor plug
90 dia.
14 dia.
300±30
17
35
300±30
85.2
83
15
35
34 44.5
189.5 40
229.5
21
80
80
