10.6 Drive Exterior and Mounting Dimensions
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 383
■ 4371

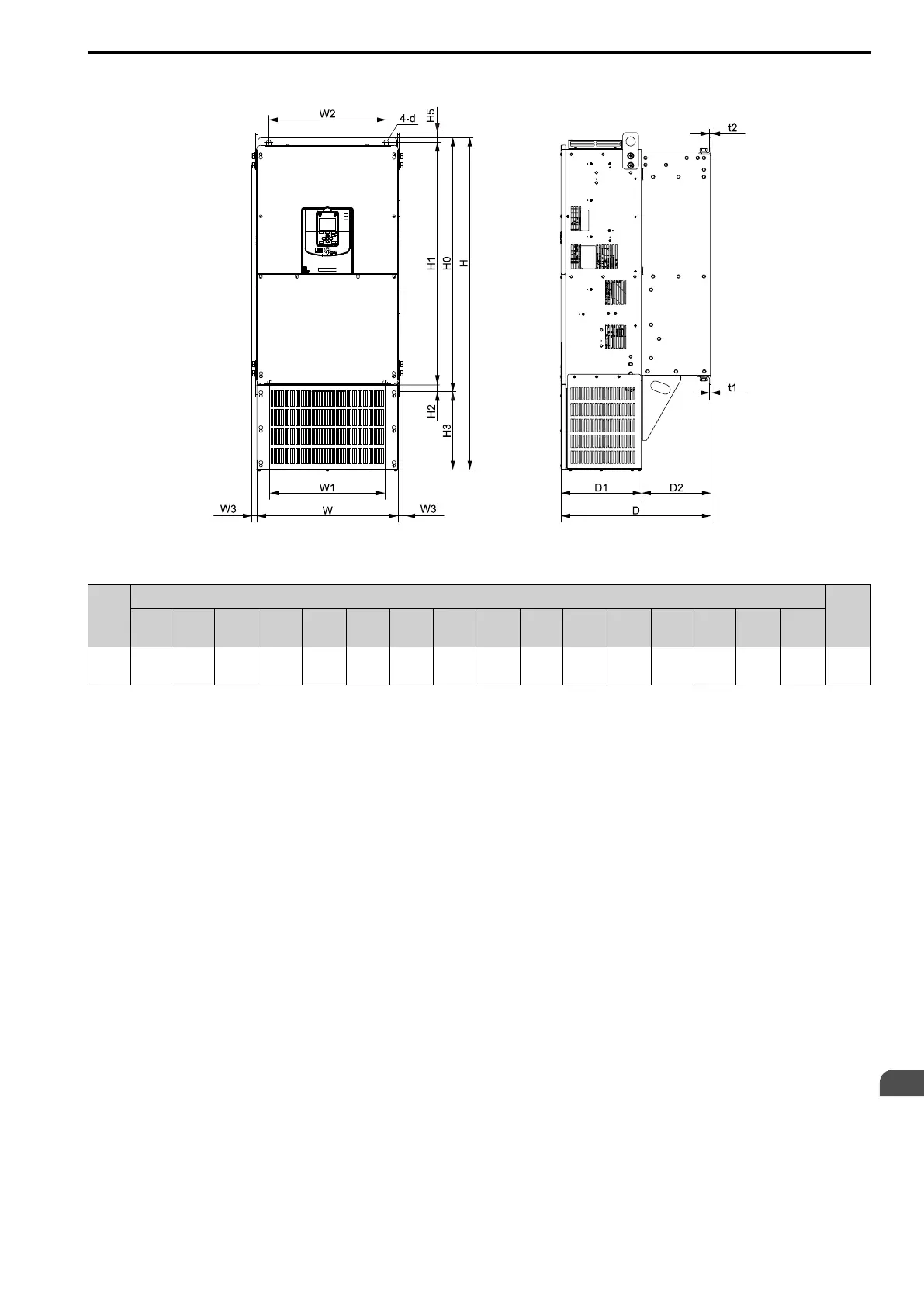

Figure 10.17 Exterior and Mounting Dimensions Diagram 8
Table 10.34 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W3
(max.)
H0 H1 H2 H3 H5 t1 t2 d
4371
444
(17.48)
1045
(41.14)
472
(18.58)
254
(10.00)
218
(8.58)
370
(14.57)
370
(14.57)
18
(0.709)
800
(31.50)
757
(29.80)
28
(1.102)
245
(9.65)
30
(1.181)
4.5
(0.177)
4.5
(0.177)
M12
130
(286.60)
