Electrical Installation
3
3.3 Main Circuit Wiring
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 73

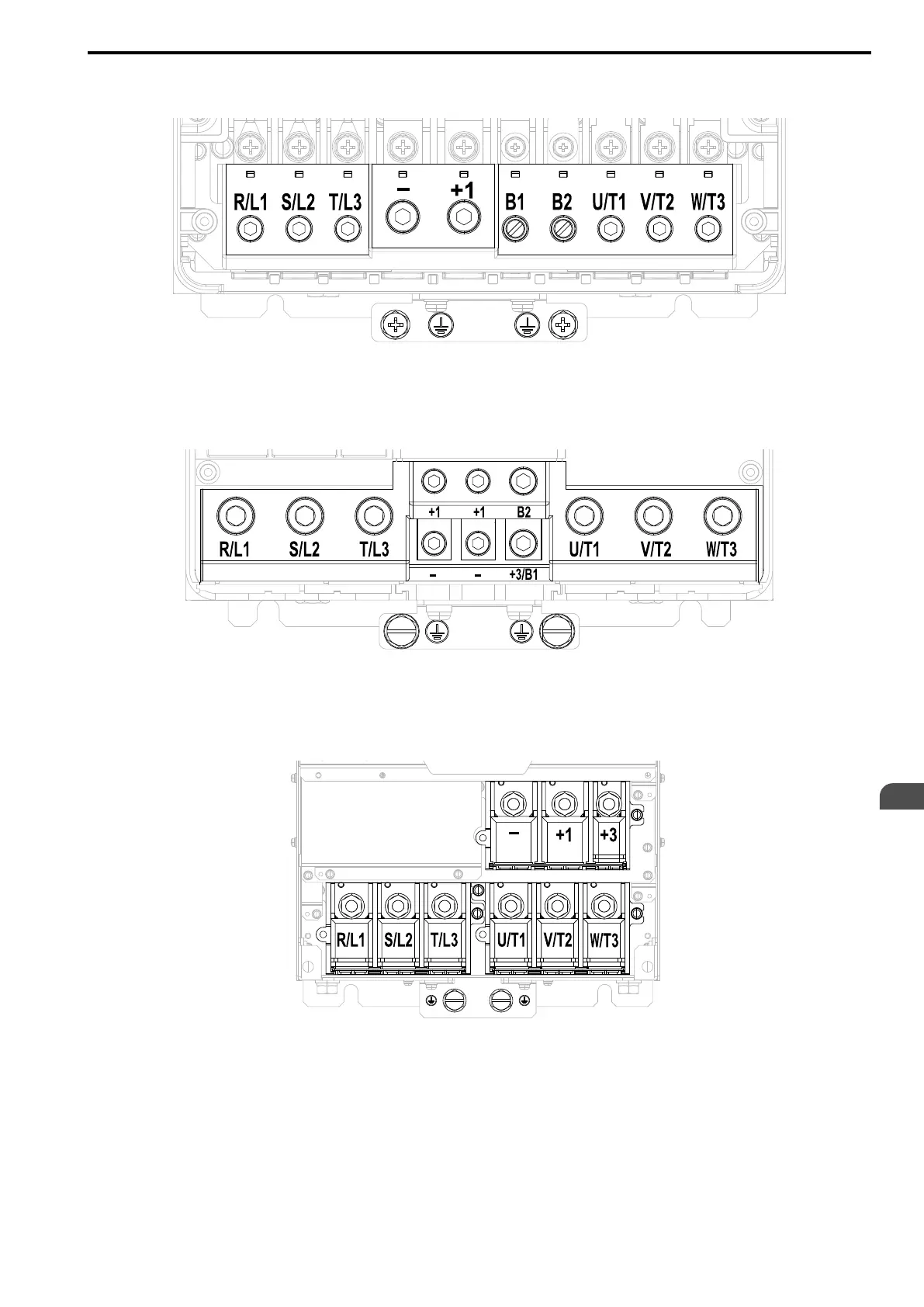

Figure 3.9 Configuration of Main Circuit Terminal Block for Drive Models 4103
Figure 3.10 Configuration of Main Circuit Terminal Block for Drive Models 4140, 4168
Figure 3.11 Configuration of Main Circuit Terminal Block for Drive Models 4208 - 4296
