5.2 European Standards
180 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

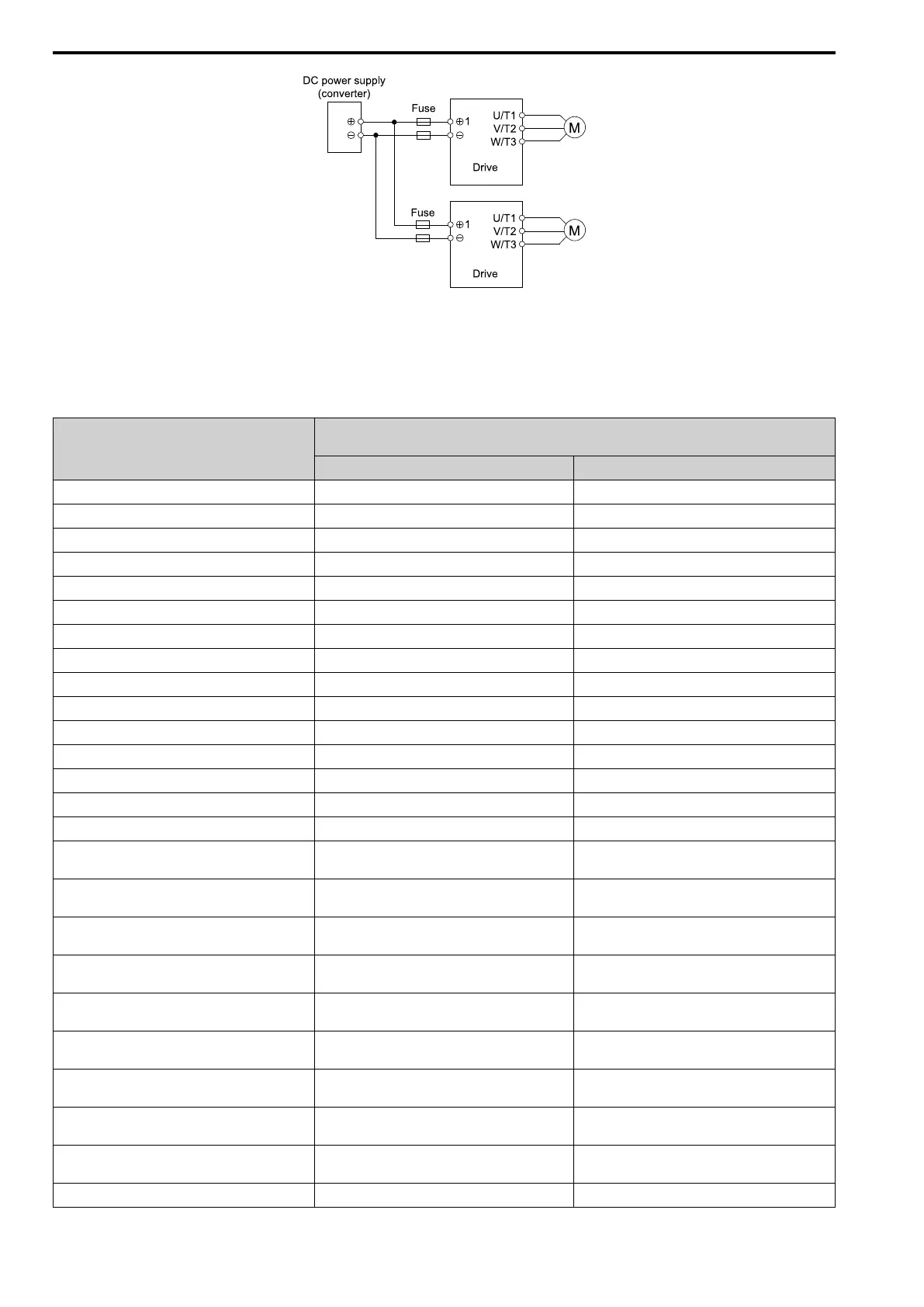

Figure 5.3 Wiring Example for DC Power Supply Input
WARNING! Do not ground the main circuit bus. Failure to obey can cause death or serious injury.
• Install a fuse for each drive when operating more than one drive. If one fuse blows, replace all fuses.
• Install the external filter (system) to comply with the EMC Directive.
Table 5.3 Recommended Fuse (Three-Phase 400 V Class)
Drive Model
Fuse
Manufacturer: Bussmann
Model Quantity
4002 FWH-50B 2
4004 FWH-50B 2
4005 FWH-50B 2
4007 FWH-60B 2
4009 FWH-60B 2
4012 FWH-60B 2
4018 FWH-80B 2
4023 FWH-90B 2
4031 FWH-150B 2
4038 FWH-200B 2
4044 FWH-200B 2
4060 FWH-225A 2
4075 FWH-250A 2
4089 FWH-275A 2
4103 FWH-275A 2
4140
FWH-300A
FWH-325A
*1
2
4168
FWH-400A
FWH-450A
*1
2
4208
FWH-500A
FWH-600A
*1
2
4250
FWH-600A
FWH-700A
*1
2
4296
FWH-700A
FWH-800A
*1
2
4371
FWH-800A
FWH-1000A
*1
2
4389
FWH-1000A
FWH-1200A
*1
2
4453
FWH-1200A
FWH-1400A
*1
2
4568
FWH-1200A
FWH-1600A
*1
2
4675 FWH-1600A 2
