SIEPYEUOQ2A01A
AC
Drive
Q2A
T
echnical
Manual
■
4371,
4389

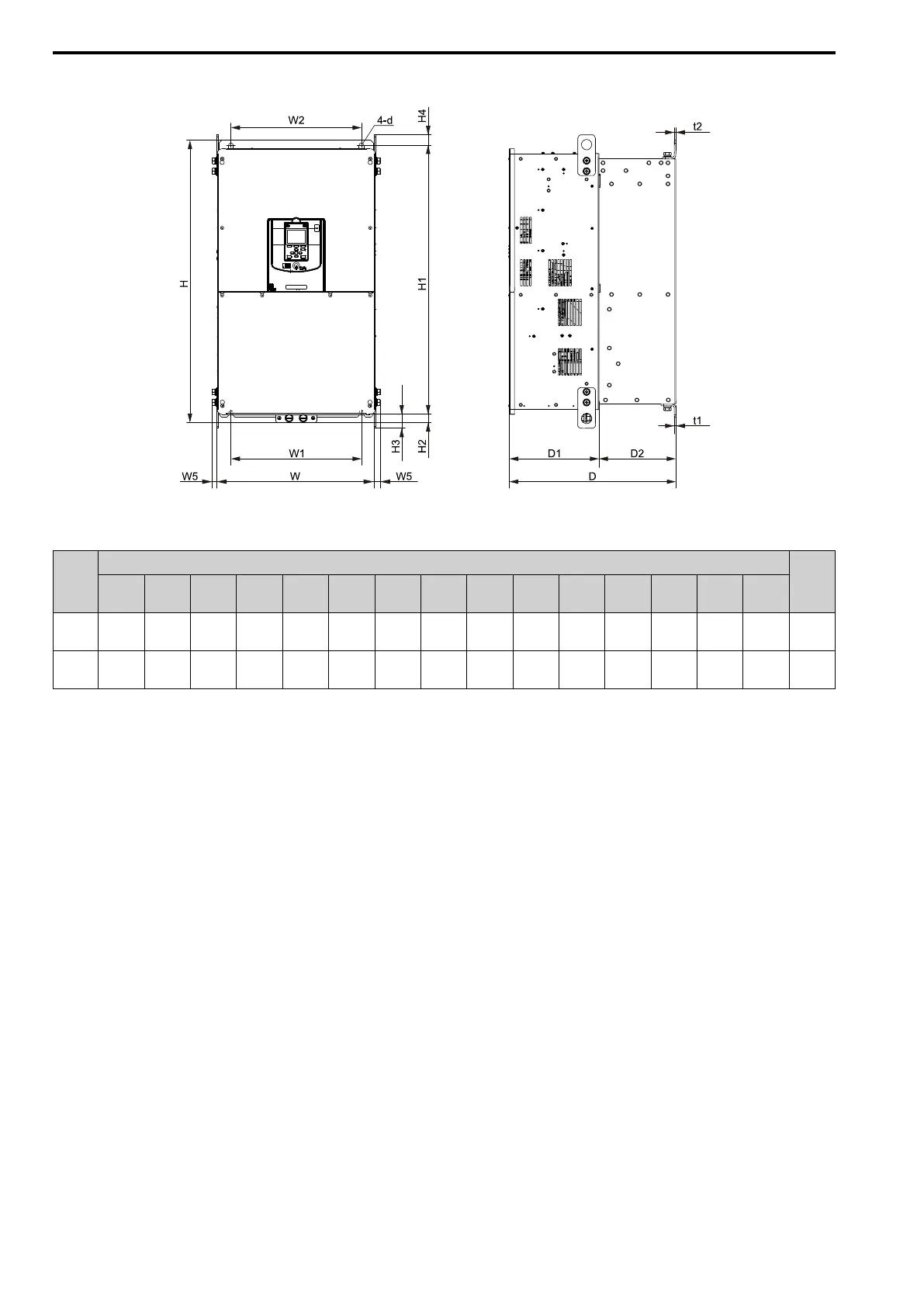

Figure
10.8
Exterior
and
Mounting
Dimensions
Diagram
8
T
able
10.25
400
V
class
(IP20)
Model
Dimensions
mm
(in.)
Weight
kg
(lb.)
W
H
D
D1
D2
W1
W2
W5
(max.)
H1
H2
H3
H4
t1
t2
d
4371
440
(17.32)
800
(31.50)
472
(18.58)
254
(10.00)
218
(8.58)
370
(14.57)
370
(14.57)
20
(0.787)
757
(29.80)
28
(1.10)
44
(1.73)
30
(1.18)
4.5
(0.177)
4.5
(0.177)
M12
122
(269.0)
4389
440
(17.32)
800
(31.50)
472
(18.58)
254
(10.00)
218
(8.58)
370
(14.57)
370
(14.57)
20
(0.787)
757
(29.80)
28
(1.10)
44
(1.73)
30
(1.18)
4.5
(0.177)
4.5
(0.177)
M12
126
(277.8)
373
375
