3 Specifications
3 - 112
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

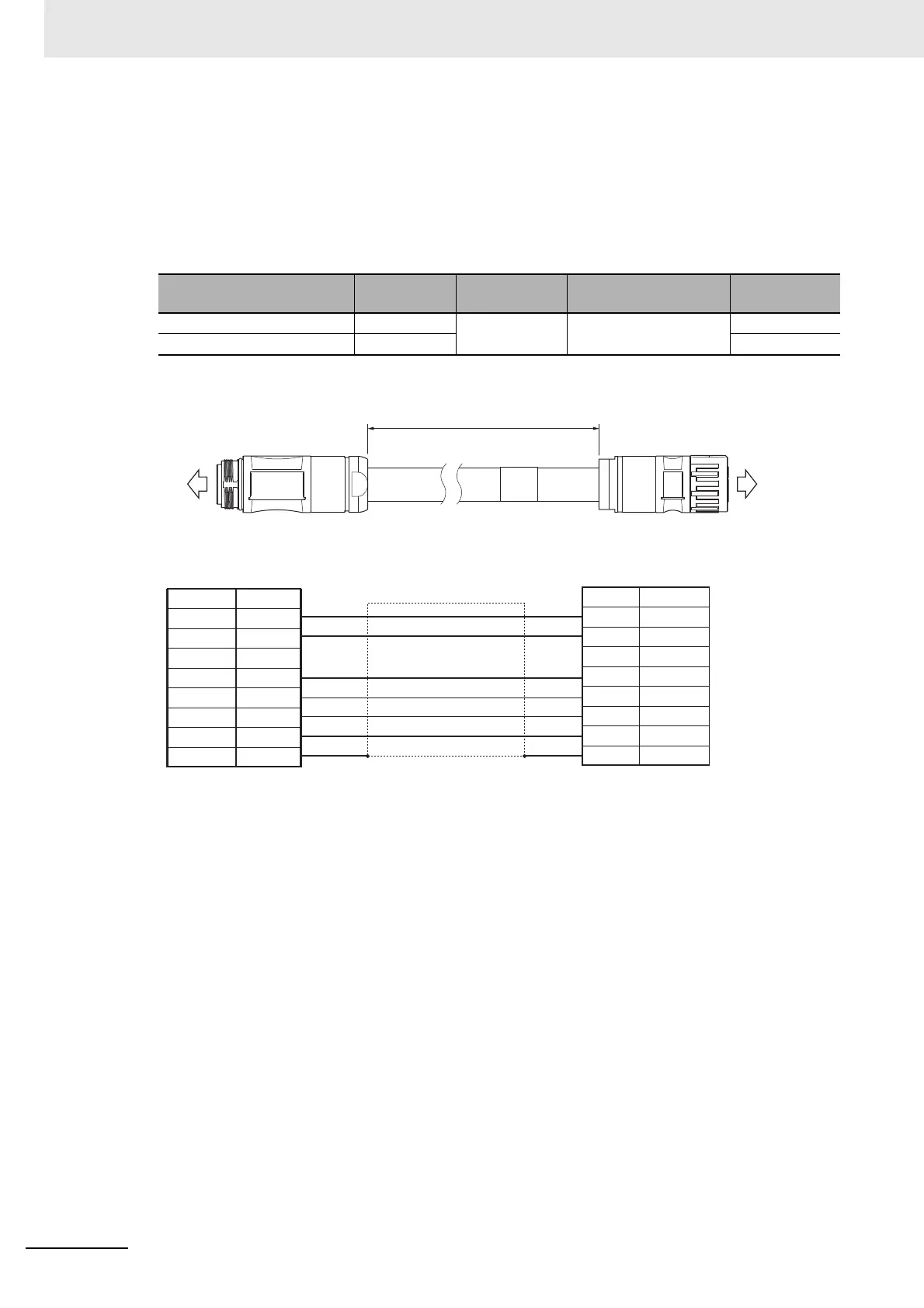

R88A-CA1JEBF
Applicable Servomotors
400 V:
1,500-r/min Servomotors of 11 kW, 15 kW
Cable types
Connection configuration and external dimensions [mm]
Wiring
*1. PE and shell are set in the connectors at Servomotor’s side.
Model Length [L]
Outer diameter
of sheath
Minimum bending
radius
Weight
R88A-CA1JE10BF 10 m 17.3 dia. 173 mm Approx. 6.2 kg
R88A-CA1JE20BF 20 m Approx. 11.7 kg
L
Servomotor
side
R88M-1
Servo Drive
side
R88D-1SN
Blue
Red
White
Green/Yellow
Servo Drive side
Cable
Servomotor side
Contact
Name
Phase U
Phase V
Phase W
Brake
Brake
Shield
Connector
Servomotor side connector
Power: 1623379
Brake: 1623604
1623327
1
2
Symbol
A
B
C
D
NC
FG
M40 Series (Phoenix Contact)
PE
*1
Shell
*1
Black
Black
AWG10 × 4C UL758
AWG21 × 2C UL758
Contact
Name
Phase U
Phase V
Phase W
Brake
Brake
Shield
Connector
Servo Drive side connector
Power: 1623384
Brake: 1623611
1623357
1
2
Symbol
A
B
C
D
NC
FG
M40 Series (Phoenix Contact)
PE
*1
Shell
*1
