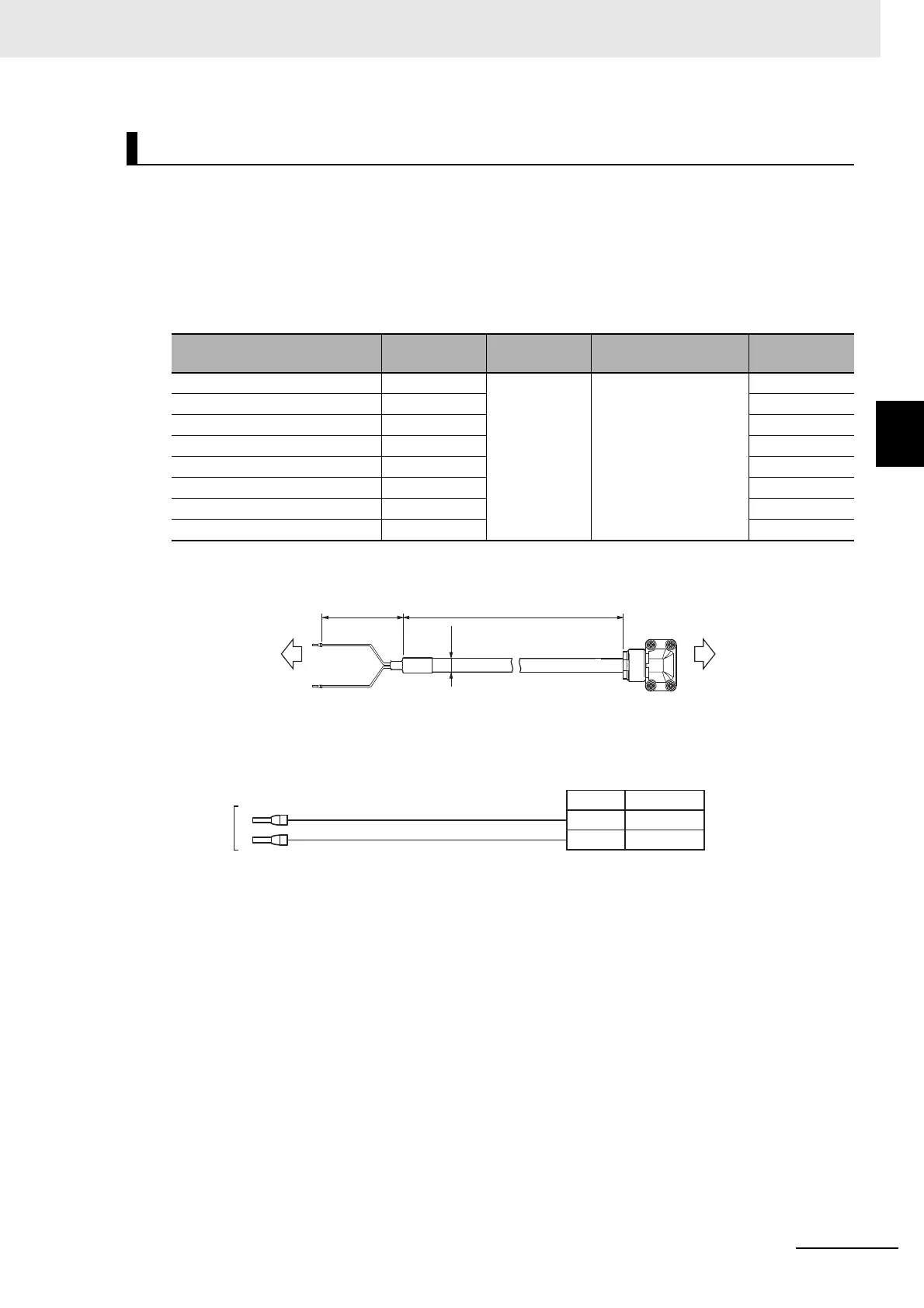

3-4 Cable and Connector Specifications
3
3-4-2 Motor Power Cable Specifications
 R88A-CA1ABF
Applicable Servomotors
100 V and 200 V:
3,000-r/min Servomotors of 100 W, 200 W, 400 W, and 750 W
Cable types
Connection configuration and external dimensions [mm]
Wiring
Brake Cables (Flexible Cable)
Model Length [L]
Outer diame-
ter of sheath
Minimum bending
radius
Weight
R88A-CA1A003BF 3 m 5.0 dia. 30 mm Approx. 0.2 kg
R88A-CA1A005BF 5 m Approx. 0.3 kg
R88A-CA1A010BF 10 m Approx. 0.5 kg
R88A-CA1A015BF 15 m Approx. 0.7 kg
R88A-CA1A020BF 20 m Approx. 0.9 kg
R88A-CA1A030BF 30 m Approx. 1.4 kg
R88A-CA1A040BF 40 m Approx. 1.8 kg
R88A-CA1A050BF 50 m Approx. 2.3 kg
Servo Drive side
Ferrule 216-201
(WAGO)
R88D-1SN
Servomotor side
R88M-1
5 dia.
40
L
Symbol
1
2
AWG22 × 2C UL2517
JN6FR02SM1
LY10-C1-A1-10000
Black
Servo Drive side
Cable:
Servomotor side
Brake
Brake
Name
Servomotor side connector
Connector
Socket contact
(Japan Aviation Electronics)
(Japan Aviation Electronics)
Black
Ferrule
216-201
(WAGO)
