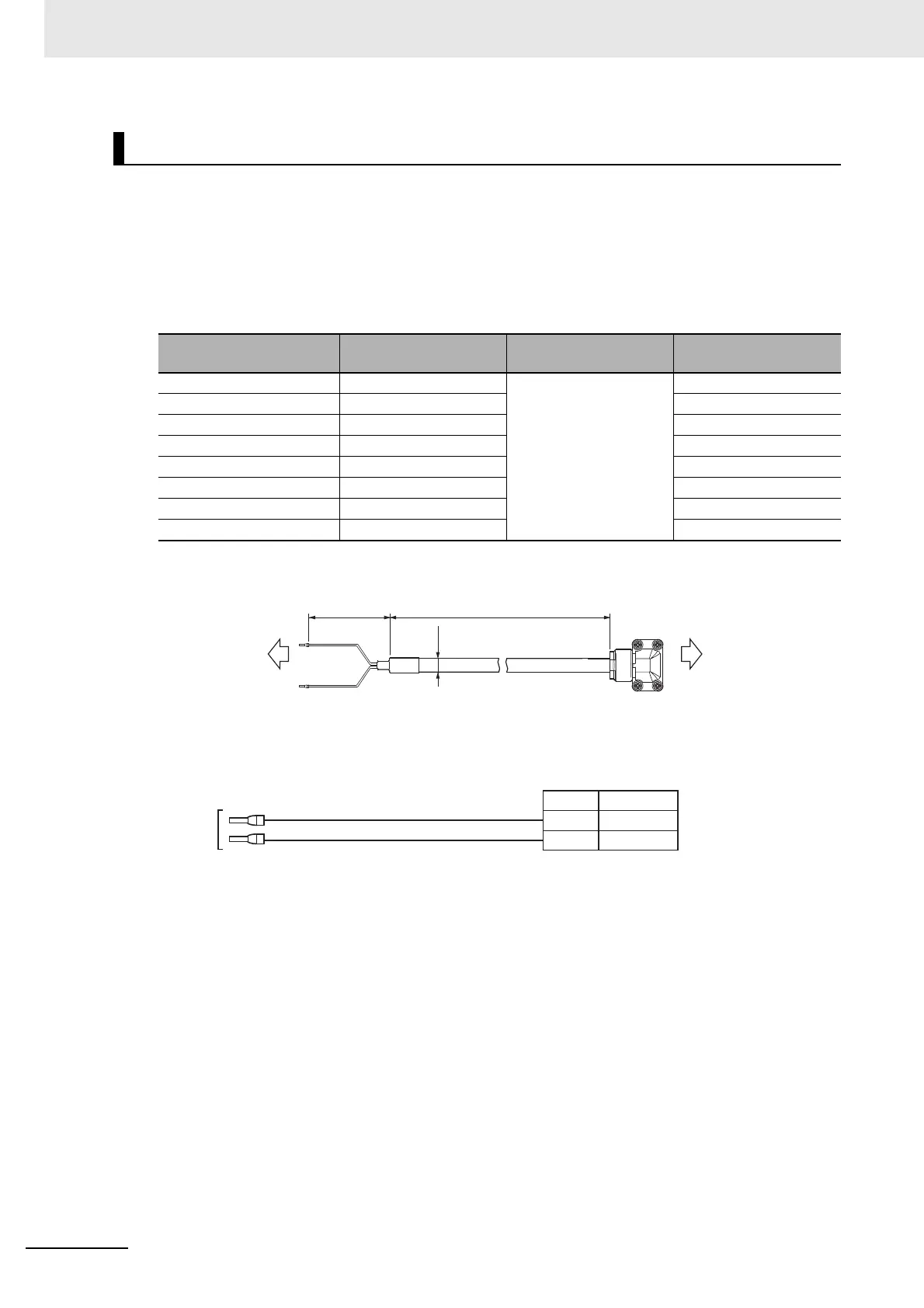

3 Specifications
3 - 114
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
R88A-CA1AB
Applicable Servomotors
100 V and 200 V:
3,000-r/min Servomotors of 100 W, 200 W, 400 W, and 750 W
Cable types
Connection configuration and external dimensions [mm]
Wiring
Brake Cables (Standard Cable)
Model Length [L]
Outer diameter of
sheath
Weight
R88A-CA1A003B 3 m 5.0 dia. Approx. 0.2 kg
R88A-CA1A005B 5 m Approx. 0.3 kg
R88A-CA1A010B 10 m Approx. 0.5 kg
R88A-CA1A015B 15 m Approx. 0.7 kg
R88A-CA1A020B 20 m Approx. 0.9 kg
R88A-CA1A030B 30 m Approx. 1.4 kg
R88A-CA1A040B 40 m Approx. 1.8 kg
R88A-CA1A050B 50 m Approx. 2.3 kg
Servo Drive side
Ferrule 216-201
(WAGO)
R88D-1SN
Servomotor side
R88M-1
5 dia.
40
L
Symbol
1
2
AWG22 × 2C UL2517
JN6FR02SM1
LY10-C1-A1-10000
Black
Servo Drive side
Ferrule
216-201
(WAGO)
Servomotor side
Brake
Brake
Name
Servomotor side connector
Connector
Socket contact
(Japan Aviation Electronics)
(Japan Aviation Electronics)
Cable:
Black
